User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.7 Safety featur es 81 2.7.2 Switches and buttons on the machine 2.7.2.1 Position of switches and buttons on the machine 2 Fig…
2 Operational safety User manual E by SIPLACE
2.7 Safety features From software version SC 712.1 Edition 05/2019
80
Function 2
If the protective cover is swung upwards, the power supply to the gantry axes will be immediately
interrupted. The gantry axes stop moving. The message "Close cover" is displayed on the screen.
Close the protective covers and press the START button (item 2 in fig. 2.7 - 2), to continue
placement.
2

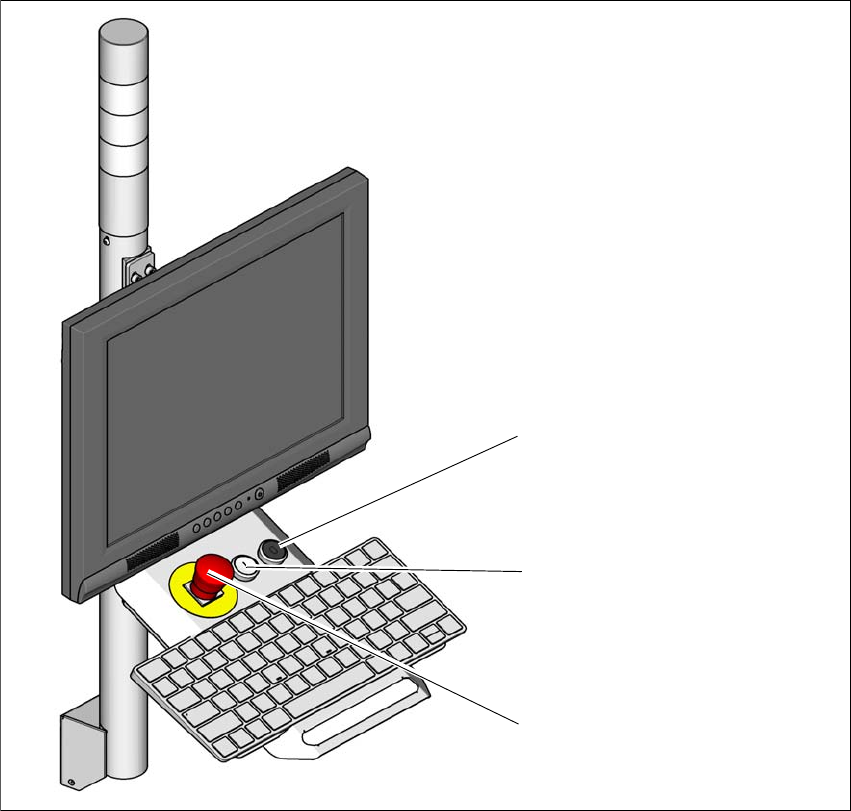

Fig. 2.7 - 2 Position of the start buttons (white) on the machine
(1) STOP button (black) on machine
(2) Start button (white) on the machine
(3) EMERGENCY STOP button
(2)
(1)
(3)
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.7 Safety features
81
2.7.2 Switches and buttons on the machine
2.7.2.1 Position of switches and buttons on the machine
2

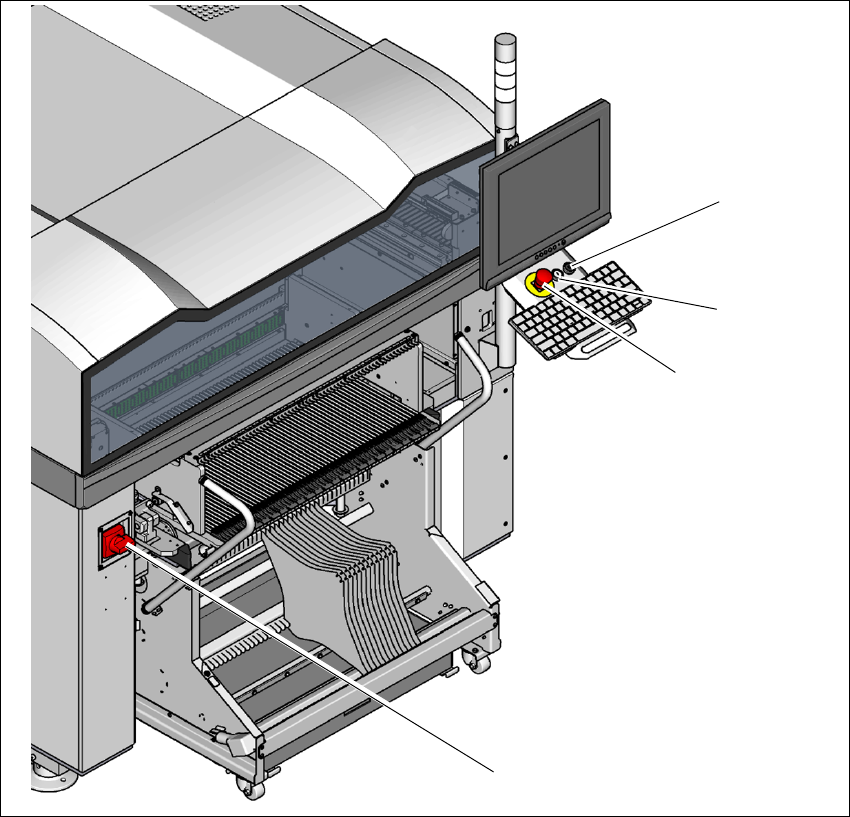

Fig. 2.7 - 3 Position of switches and buttons - location 1
(1) Main switch
(2) Stop button (black)
(3) Start button (white)
(4) EMERGENCY STOP button
No main switch on location 2
(2)
(1)
(3)
(4)
2 Operational safety User manual E by SIPLACE
2.7 Safety features From software version SC 712.1 Edition 05/2019
82
Main switch in OFF position (see item 1 in fig. 2.7 - 3, page 81) 2
The main power switch disconnects the three phases L1, L2, and L3 from the power supply.
2
Main switch in ON position 2
After switching on the main switch, mains voltage is present and the 24 V- AC/DC converter is
addressed. The control computer will start up and supply voltage will be made available with the
exception of the intermediate circuit voltages for the gantry axes (300 V-) and star axes (160 V-).
Stop button, black (item 2 in fig. 2.7 - 3, page 81 and item 1 in fig. 2.7 - 2, page 80) 2
This button is used to stop the machine. After reaching STOP state protective lock is released and
covers can be opened.
Start button, white (item 3 in fig. 2.7 - 3, page 81 and item 2 in fig. 2.7 - 2, page 80) 2
After switching on the main power switch you will be prompted to press the start button in order to
start the machine for placement jobs. The same prompt appears if you press the EMERGENCY
STOP button. The protective covers are locked and can no longer be opened.
Component counter 2
The number of placed components (component counter) can be read on the station software. For
more information, refer to the Online Help.
DANGER
Lethal voltages!
Incorrect handling of the machine can therefore result in death or severe injury or consid-
erable damage to equipment.
The following components still carry potentially lethal voltages even if the main power
switch is switched off:
– Cable connection terminals L1, L2, and L3 of the Q1 main power switch
Always follow the applicable accident prevention and DIN regulations (particularly EN
60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own coun-
try.
The safety cover to the power supply must ONLY be opened by appropriately quali-
fied personnel.
