User manual E by SIPLACE 2 Operational safety From software version SC 712.1 Edition 05/2019 2.8 Residual volt ages and discharge times in the machine 91 2.8.1.1 Residual voltages and discharge times after switching of f…
2 Operational safety User manual E by SIPLACE
2.8 Residual voltages and discharge times in the machine From software version SC 712.1 Edition 05/2019
90
2
Fig. 2.8 - 1 Position of the main power switch
(1) Main power switch
2.8.1 Machine switched off at the main power switch
2
(1)
DANGER
Dangerous voltages at the main switch after switching off the machine
The input terminals of the main switch carry dangerous voltages after the machine has
been switched off at the main switch.
Never open the cover at the main switch.
User manual E by SIPLACE 2 Operational safety
From software version SC 712.1 Edition 05/2019 2.8 Residual voltages and discharge times in the machine
91
2.8.1.1 Residual voltages and discharge times after switching off the main switch
2

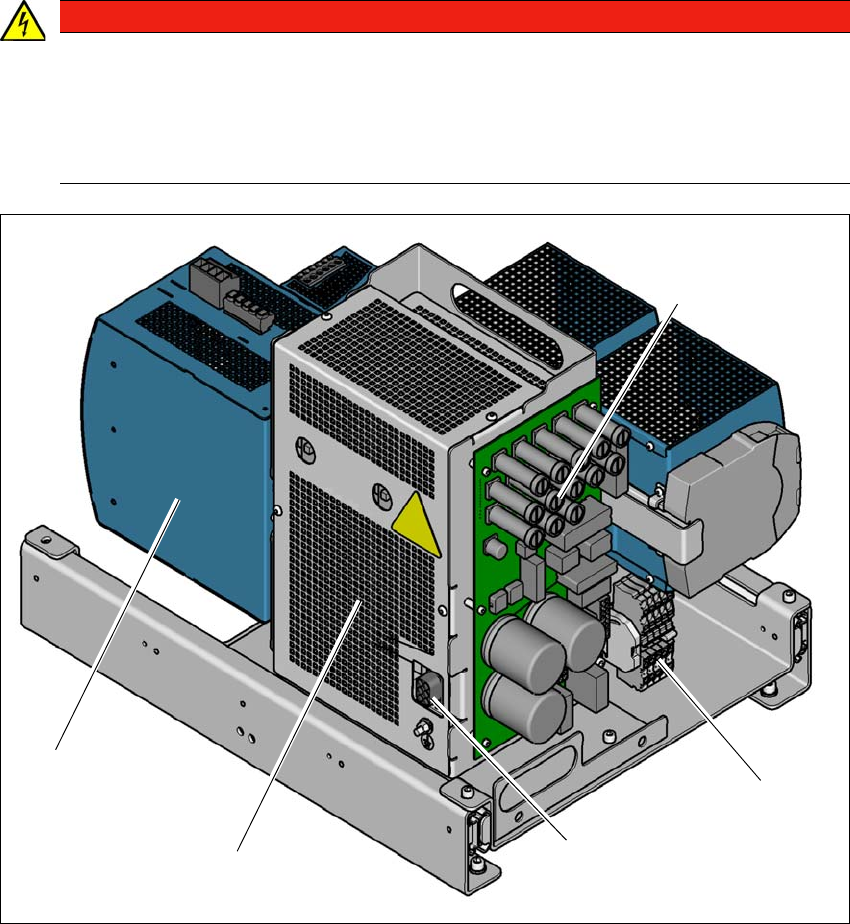

Fig. 2.8 - 2 Overview of the power supply unit
(1) Fuses
(2) Mains input terminals
(3) Connector to safety unit
(4) Safety contactors (behind the cover)
(5) Capacitor Module
DANGER
Dangerous voltages at the safety contactors after switching off the machine
After switching off the machine at the main switch, Pos. 4 - fig.
2.8 - 2 various compo-
nents (e.g. capacitors) at the power supply unit can carry dangerous voltages for approx.
5 minutes. The contactor unit is safely protected behind a cover.
Never open the cover of the safety contractors Pos. 4 - fig. 2.8 - 2.
(2)
(1)
(3)
(4)
(5)
2 Operational safety User manual E by SIPLACE
2.8 Residual voltages and discharge times in the machine From software version SC 712.1 Edition 05/2019
92
2.8.1.2 Machine switched off at the main power switch and disconnected
The machine is unpowered, apart from slight residual voltages in the power supply unit.
2.8.2 Residual voltages and discharge times after pressing the EMERGENCY STOP
button
If the EMERGENCY STOP button is pressed or the machine is switched off, the 300 VDC link volt-
age for the gantry axes and the 160 VDC link voltage for the star axes are reduced to harmless
residual voltages in a very short time.
2
