Instruction manual SIPLACE CA4 V2 3 Technical data and assemblie s From software version 713.0 Ed ition 12/2019 3.3 Dimensions and we ig ht 105 3 Fig. 3.3 - 2 SIPLACE CA4 V2 with SWS - dimensions in millimeters (1) Width…
3 Technical data and assemblies Instruction manual SIPLACE CA4 V2
3.3 Dimensions and weight From software version 713.0 Edition 12/2019
104
3.3.1.1 Overview of dimensions
3

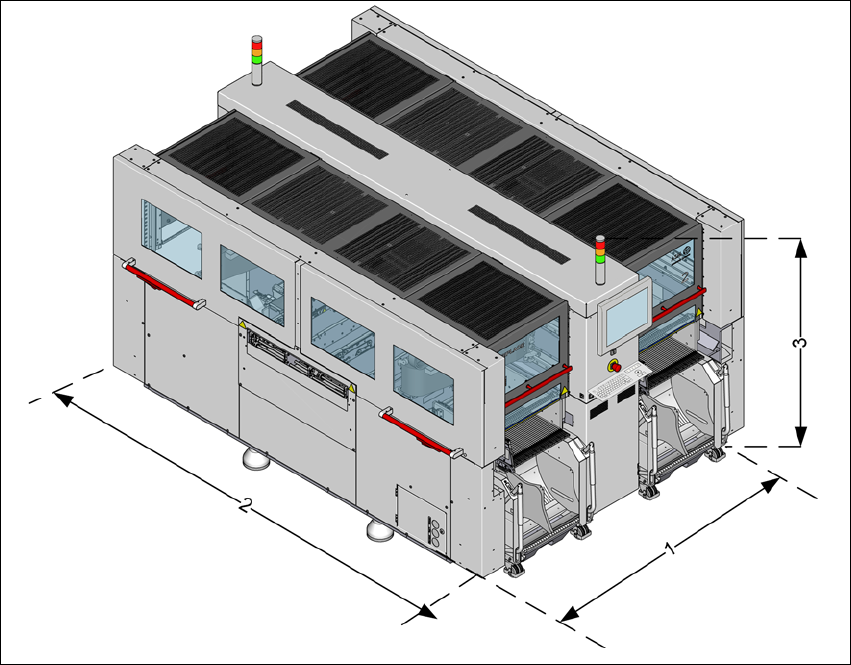

Fig. 3.3 - 1 Overview of measurements - SIPLACE CA4 V2
Example:
(1) Length = 1950 mm
(2) Width = 2740 mm
(3) Height = 1599 mm
Instruction manual SIPLACE CA4 V2 3 Technical data and assemblies
From software version 713.0 Edition 12/2019 3.3 Dimensions and weight
105
3

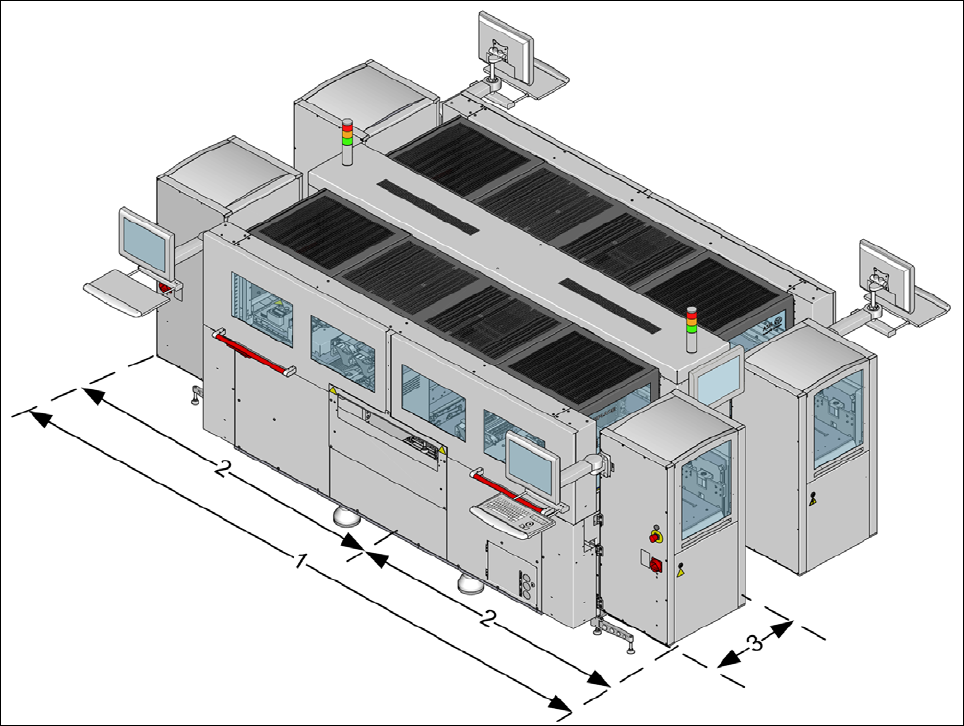

Fig. 3.3 - 2 SIPLACE CA4 V2 with SWS - dimensions in millimeters
(1) Width = SWS outside: 4078 mm / SWS inside: 3778 mm
(2) Machine center to SWS = SWS outside: 2039 mm / SWS inside:1889 mm
(3) Width SWS = 650 mm
3 Technical data and assemblies Instruction manual SIPLACE CA4 V2
3.3 Dimensions and weight From software version 713.0 Edition 12/2019
106
3.3.1.2 Height of opened protective covers and side sliding doors
3

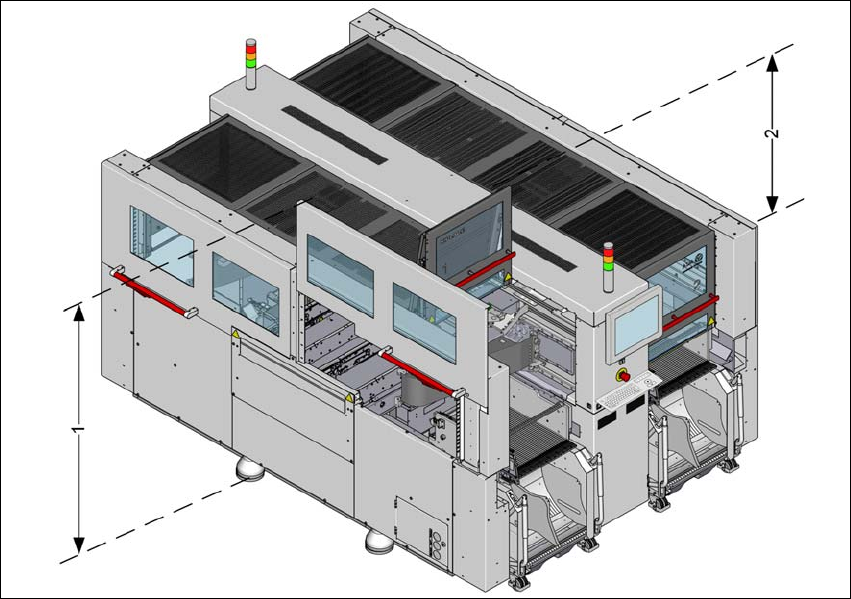

Fig. 3.3 - 3 Height of opened protective covers and side sliding doors
The height varies according to the set PCB conveyor height
(1) Side sliding doors
– 2065 mm at PCB conveyor height 900 mm
– 2095 mm at PCB conveyor height 930 mm
– 2115 mm at PCB conveyor height 950 mm
(2) Protective covers
– 2065 mm at PCB conveyor height 900 mm
– 2095 mm at PCB conveyor height 930 mm
– 2115 mm at PCB conveyor height 950 mm
