3.3.3 Maneuvering distances for SIPLACE Wafer System (SWS)
3

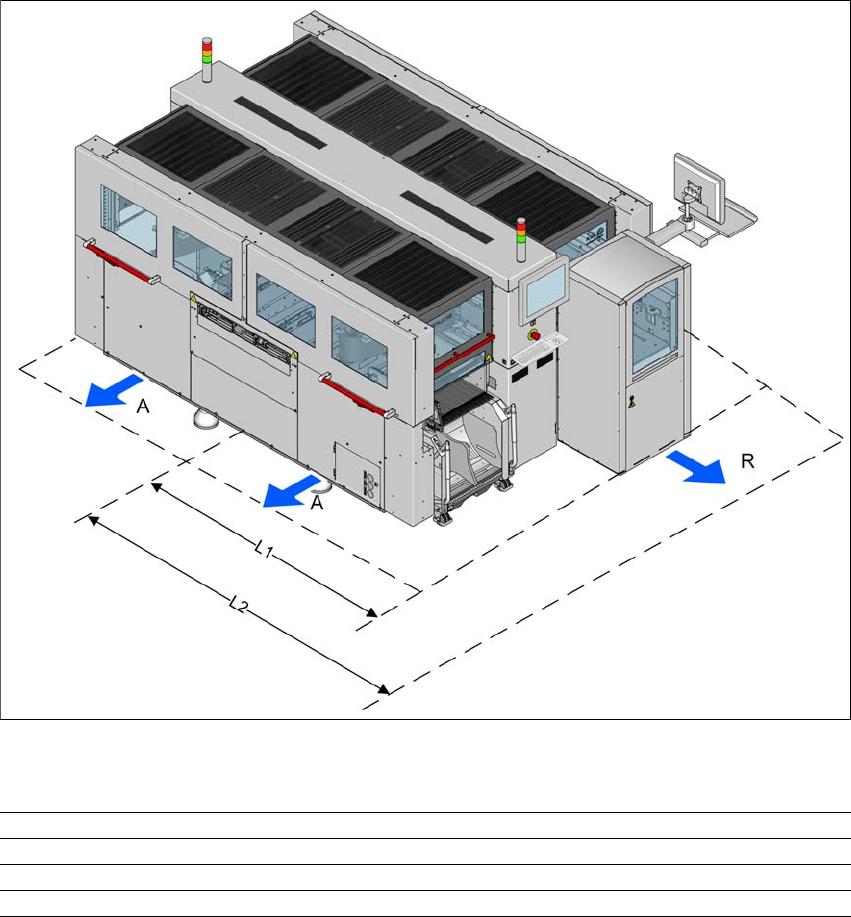

Fig. 3.3 - 5 SWS maneuvering distances at the SIPLACE CA4 V2
3
Working area (A) and minimum distance to the adjacent placement machine 500 mm
Maneuvering distance (R) location position 1000 mm
Distance L1: Machine center to outer edge of SWS 1980 mm
Distance L2: Machine center to wall 2980 mm
Instruction manual SIPLACE CA4 V2 3 Technical data and assemblies
From software version 713.0 Edition 12/2019 3.3 Dimensions and weight
109
3.3.4 Placement machine center of gravity
3
Fig. 3.3 - 6 Placement machine center of gravity in millimeters
X = 100
Y = 1050mm
Z = 630 mm
S = center of gravity
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
930 mm.
3 Technical data and assemblies Instruction manual SIPLACE CA4 V2
3.4 Overview of the modules From software version 713.0 Edition 12/2019
110
3.4 Overview of the modules
3
3
Fig. 3.4 - 1 Overview of the modules
(1) Location 1 with component trolley, tape cutter, empty tape duct and gantry with placement
head
(2) Location 2 with SIPLACE Wafer System (SWS) and gantry with placement head
(3) Location 3 with component trolley, tape cutter, empty tape duct and gantry with placement
head
(4) Location 2 with SIPLACE Wafer System (SWS) and gantry with placement head
(5) Monitor with keyboard (2x)
(6) Board conveyor
(T) Direction of PCB conveyor
(1)
(2)
(3)
(4)
(5)
(6)
