3 Technical data and assemblies I nstruction manual SIPLACE CA4 V 2 3.5 Placement head From software version 713.0 Edition 12/2019 116 3 Fig. 3.5 - 3 SIPLACE MultiS tar CPP M - front view , function groups part 2 (1) Com…
Instruction manual SIPLACE CA4 V2 3 Technical data and assemblies
From software version 713.0 Edition 12/2019 3.5 Placement head
115
3.5.4 SIPLACE MultiStar CPP M
3
3

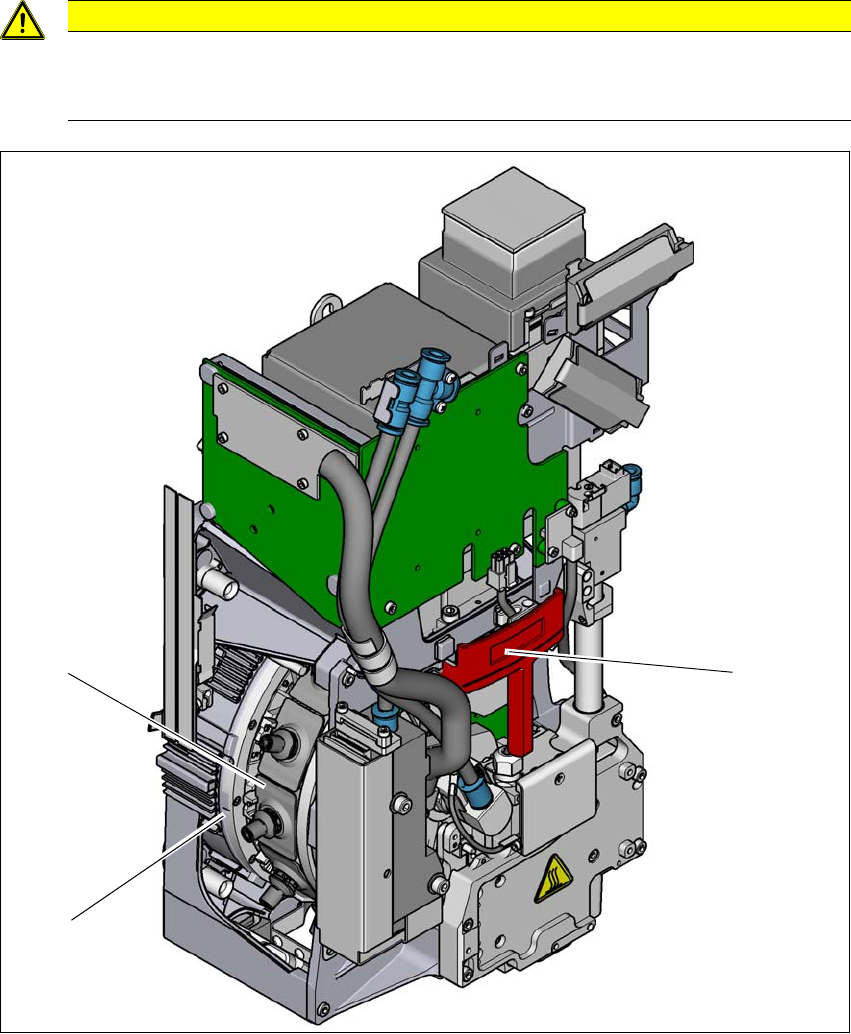

Fig. 3.5 - 2 SIPLACE MultiStar CPP M - front view, function groups part 1
(1) Handle
(2) Star with 12 segments
(3) Segment with integrated DP drive
CAUTION
Always take hold of the handle to push the placement head
The placement head may only be moved by pushing manually against the handle provid-
ed.
(2)
(3)
(1)
3 Technical data and assemblies Instruction manual SIPLACE CA4 V2
3.5 Placement head From software version 713.0 Edition 12/2019
116
3

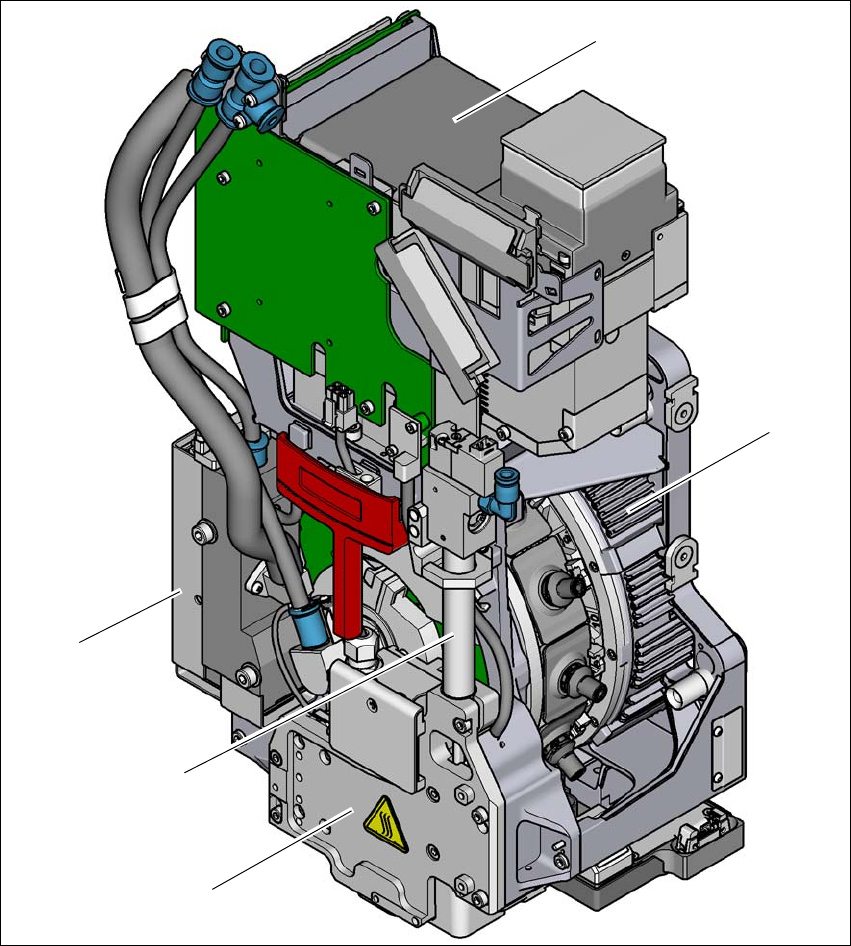

Fig. 3.5 - 3 SIPLACE MultiStar CPP M - front view, function groups part 2
(1) Component camera, type 48 GigE
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
(1)
(2)
(3)
(4)
(5)
Instruction manual SIPLACE CA4 V2 3 Technical data and assemblies
From software version 713.0 Edition 12/2019 3.5 Placement head
117
3
Fig. 3.5 - 4 SIPLACE MultiStar CPP M - rear view, function groups part 3
(1) Component sensor
(2) Assembly position for component height of up to 11.5 mm
(3) Assembly position for component height of up to 6 mm
(3)
(2)
(1)
