Instruction manual SIPLACE CA4 V2 4 Setting up and commissioning From software version 713.0 Ed ition 12/2019 4.1 Delivery configur ation and transportation of placement ma chines 145 4 Fig. 4.1 - 2 Configuration when de…
4 Setting up and commissioning Instruction manual SIPLACE CA4 V2
4.1 Delivery configuration and transportation of placement machines From software version 713.0 Edition 12/2019
144
4.1.1.2 Weight of machine when ready for dispatch
The following table contains the weights of the placement machines prepared for dispatch, includ-
ing packaging.
4
4.1.2 Checking a delivery
Store the placement machine in the packaging until room temperature has been reached.
There is otherwise a risk of condensation occurring.
Check the delivery for damage.
Check the shock sensors on the transportation crate.
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
The placement machine is configured as follows when delivered:
– The lanes of the dual lane conveyor are set to a width of 210 mm. This width setting will be
important when fine-tuning the placement machine.
– Both keyboards (if the option is available) are disconnected and dismantled.
– Both monitors are dismantled.
– Both indicator lamps are dismantled.
– All the gantry axes are fixed with shipping braces.
Placement
machine
Dispatch within Europe Dispatch overseas
CA4 V2 4,004 kg 4,504 kg
Component trolley 95 kg 110 kg
Instruction manual SIPLACE CA4 V2 4 Setting up and commissioning
From software version 713.0 Edition 12/2019 4.1 Delivery configuration and transportation of placement machines
145
4

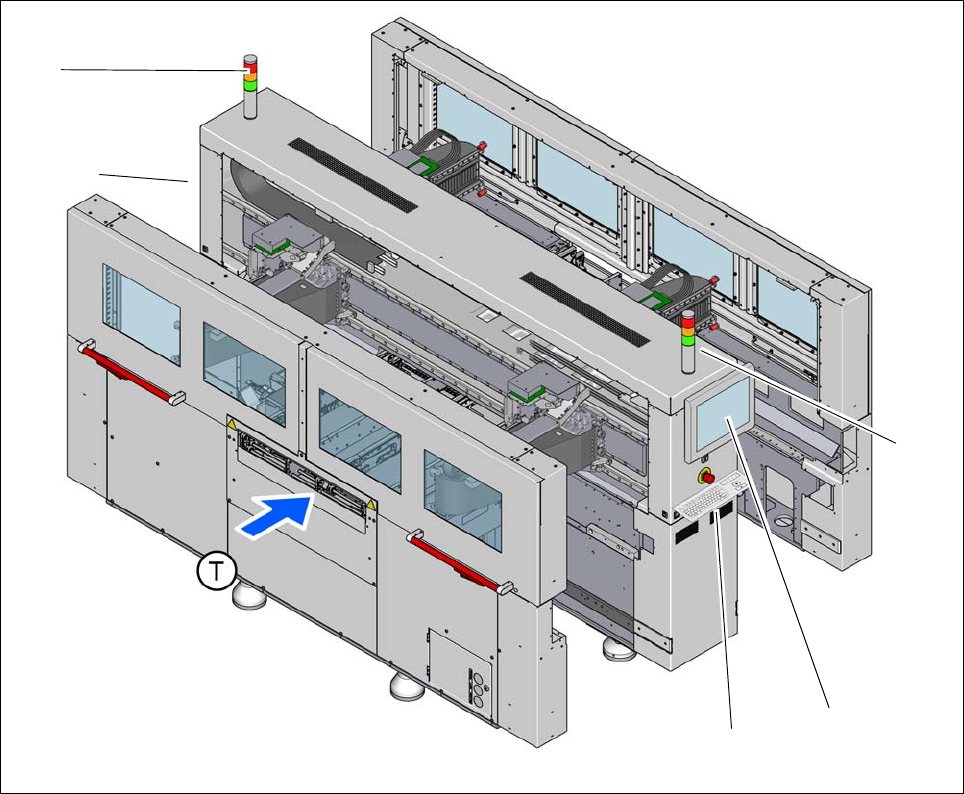

Fig. 4.1 - 2 Configuration when delivered
(1) Signal lamp (dismantled)
(2) Monitor (dismantled)
(3) Keyboard (if option is present) is dismantled
(T) Direction of PCB conveyor
(1)
(2)
(3)
(1)
(2 + 3)
4 Setting up and commissioning Instruction manual SIPLACE CA4 V2
4.1 Delivery configuration and transportation of placement machines From software version 713.0 Edition 12/2019
146
4.1.4 Transporting the placement machine in the crate
4.1.4.1 Services
As a special service, SIPLACE offers to realize the complete integration of your SIPLACE place-
ment machine in your production line. With our extensive expertise and by using the right tools
and equipment, we can ensure that the installation process runs smoothly and efficiently. How-
ever, this will require you to clarify the infrastructure aspects in advance and make any necessary
changes at your production facility.
Please note that the safest way to transport the placement machine is always in the transport crate
- or at the very least on the pallet. This will prevent serious damage to the placement machine
caused by the feet colliding with obstacles, for example.
4.1.4.2 Safety instructions
4
4
4
4.1.4.3 Means of conveyor
To transport the placement machine on a palette or on a transportation crate, use a fork lift truck
with the following specifications:
Fork length: Min. 1800 mm
Carrying power: Min. 6000 kg
Clear width between forks: Min. 350 mm 4
4
WARNING
Observe the applicable accident prevention regulations!
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of tilting!
Risk of tilting, if the required specifications for the fork-lift truck are not observed (section
4.1.4.3
, page 146) !
Only use the specified fork-lift for transportation.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the placement machine.
Wear special protective shoes.
