4.1.5.4 Points that MUST be noted when transporting the machine

WARNING

Risk of damaging the machine feet!

The thread for the machine feet in the machine frame could be damaged by being

dragged along the floor or from impact.

 When you are transporting the machine, make sure that all the feet are clear of the

floor.

WARNING

Risk of damaging the exhaust air duct for the vacuum pump!

Vacuum pumps can be fitted in placement area 1. The exhaust air duct is fitted under the

machine base. This exhaust air duct could be damaged during transportation with the

fork-lift.

 Dismantle the exhaust air duct before you transport the placement machine with the

fork-lift.

Instruction manual SIPLACE CA4 V2 4 Setting up and commissioning

From software version 713.0 Edition 12/2019 4.2 Infrastructure at the installation location

151

4.2 Infrastructure at the installation location

4.2.1 Recommendations for foundation quality

The floor on which the placement machine is installed must be firm and level, as dynamic forces

could cause vibrations when the placement machine is operated. The degree of vibration depends

on the construction of the foundation. The following are suitable provided that the floor loading pa-

rameters, etc., are not exceeded:

– Reinforced concrete ceiling constructions, e.g. ceilings in production halls

– Reinforced concrete floor slabs, e.g. concrete floors in production halls without a basement

– Rooms with double floors, provided that a stable foundation is included in the space between

them. The same setup conditions apply to this intermediate foundation, which can be made

from steel girders or concrete.

4.2.1.1 Maximum ground levelness

The floor underneath the placement machine may not exceed an incline of 0.63%. This corre-

sponds to an incline of 5 mm over a distance of 800 mm (e.g. the width of a changeover table).

4.2.1.2 Machine weight and floor loading

The machine weight and floor loading values can be found in section 3.3.1, page 103.

PLEASE NOTE

Also observe the document "Network and compressed air configuration for SMD sys-

tems" (German+English, Item No. 00197548-xx), which is supplied with your SIPLACE

placement machine.

4 Setting up and commissioning Instruction manual SIPLACE CA4 V2

4.2 Infrastructure at the installation location From software version 713.0 Edition 12/2019

152

4.2.2 Compressed air supply

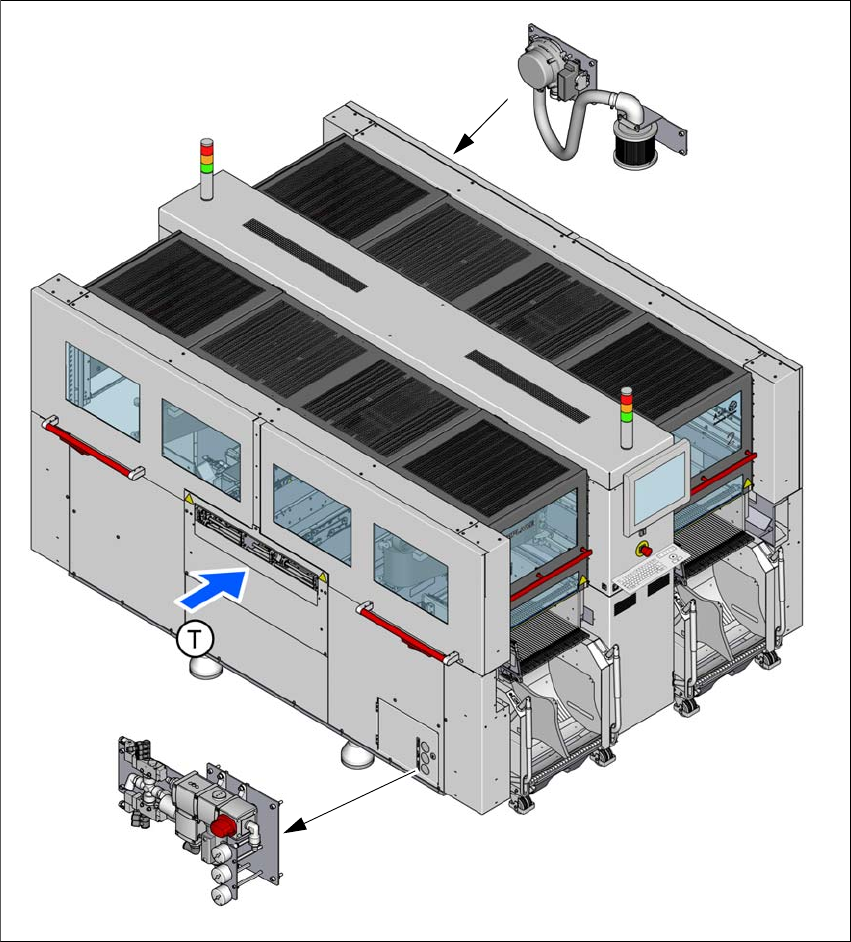

Fig. 4.2 - 1 Position of compressed air supply in the placement machine

(1) Installation position of compressed air supply in sector 1

(2) Installation position of the silencer unit in sector 3 (behind the cover)

(T) Direction of PCB conveyor
