4 Setting up and commissioning Instruction manual SIPLACE CA4 V2

4.6 Commissioning the placement machine From software version 713.0 Edition 12/2019

188

4.6 Commissioning the placement machine

4.6.1 Commissioning the placement machine at the customer's premises

 Check all modules for correct seating.

 Remove the shipping braces (see section 4.3.9, page 183).

 Wipe the linear guide rails of the X/Y axis with a lint-free cloth. Do not use any solvents (see

section 4.3.10

, page 183).

 Connect to the electricity and compressed air supplies. Make sure that the incoming leads

and cables can not be tripped over. Where possible, run the supply lines under the machine.

 Switch the placement machine on and check the function of the safety features such as the

EMERGENCY STOP button, position switch for covers and the component trolley.

 Perform a reference run.

 Perform initial calibration of the placement machine (see section 4.6.2.1, page 189).

 Load a recipe in the computer and test it.

 Check the placement machine zero point after a period of warming up of 3 - 4 h.

 Get the customer's operating personnel to equip the feeder modules according to the cus-

tomer's placement program.

 Instruct them in handling the feeder modules using the Job Guide.

4.6.2 Checking and setting the protective cover switch

 Check the function of the protective cover switch (see 2.4.1 on page 63).

 Adjust the protective cover switch if necessary (see service manual).

Instruction manual SIPLACE CA4 V2 4 Setting up and commissioning

From software version 713.0 Edition 12/2019 4.6 Commissioning the placement machine

189

4.6.2.1 Performing initial calibration

 Click on "Service Tools" in the toolbar.

 Click on the Automatic calibration button.

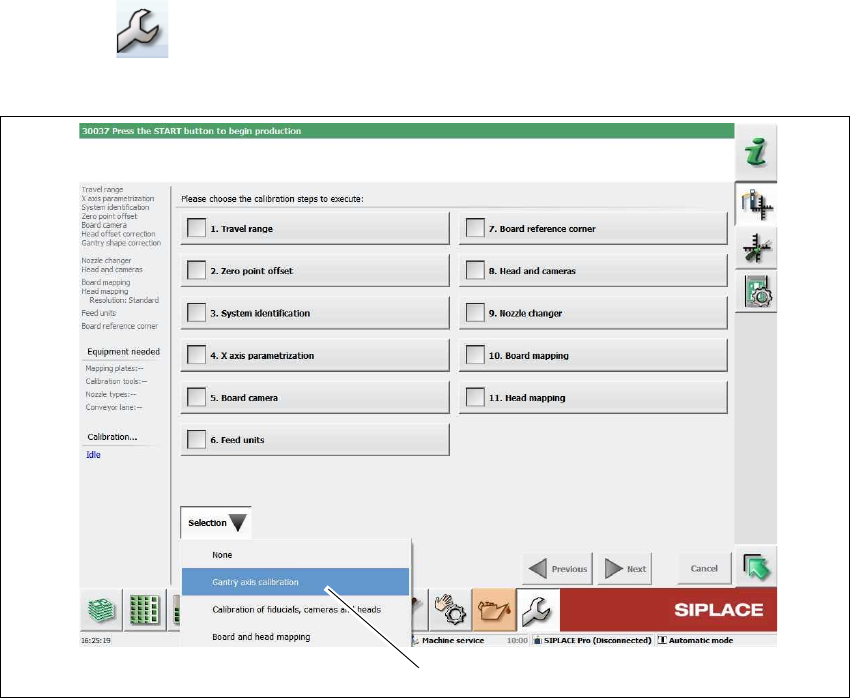

Fig. 4.6 - 1 Service tools => automatic calibration (example)

 Select Selection => Gantry axis calibration (1).

(1)

4 Setting up and commissioning Instruction manual SIPLACE CA4 V2

4.6 Commissioning the placement machine From software version 713.0 Edition 12/2019

190

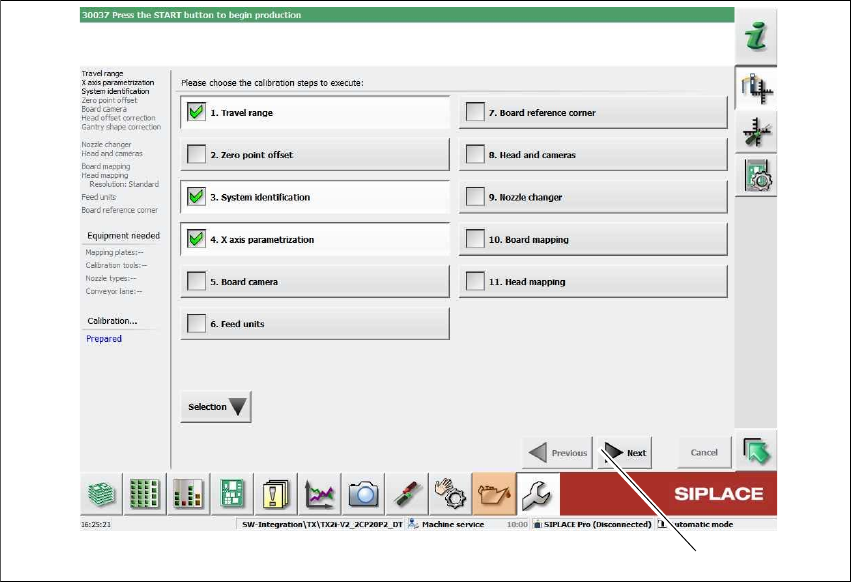

Fig. 4.6 - 2 Service tools => automatic calibration => calibrating the gantry axes (example)

The following calibration steps are enabled:

– 1. Travel range

– 3. System identification

– 4. Parameterization X axis

 Click on Next (1).

The calibration must be completed without errors.

4.6.3 Instructing the customer's personnel

 Explain all customer-specific installed options, in particular software / software compatibility.

 Explain the SIPLACE Pro editors to programmers.

 Instruct the operators and line engineers in using the station software.

 Explain about password protection.

 Instruct the customer's personnel according to the instruction manual and the preventive

maintenance.

(1)
