5 Tasks at the placement machine Instruction manual SIPLACE CA4 V2 5.5 The user interface From software version 713.0 Edition 12/201 9 206 Filling level view During placeme nt, the operator is shown at al l times when th…

100%1 / 322
Instruction manual SIPLACE CA4 V2 5 Tasks at the placement machine
From software version 713.0 Edition 12/2019 5.5 The user interface
205
Boards being processed

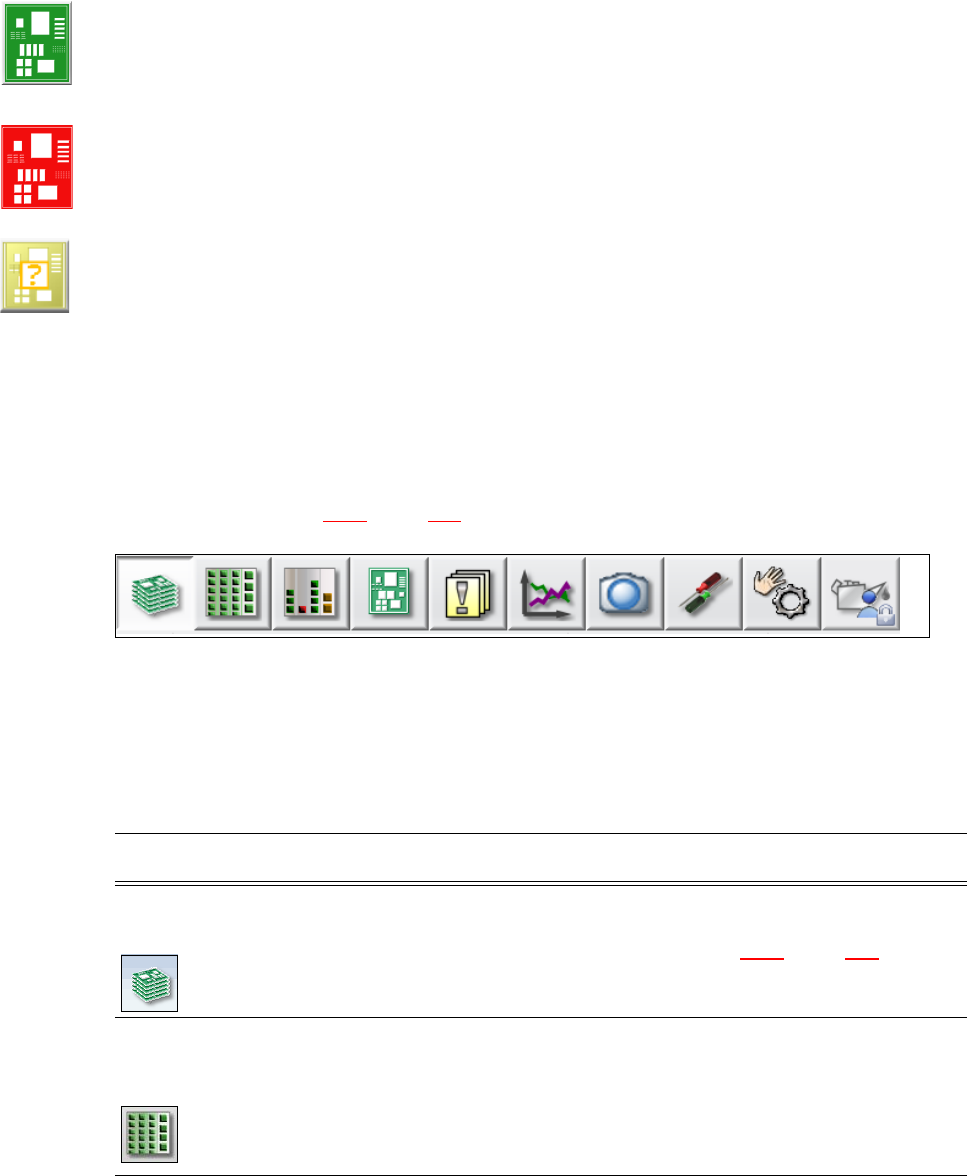

The board is taken up by the system and placed. The PCB icon will be shown as a dark green
button.
Board processing terminated
If processing is terminated, the PCB icon will be shown in red.
Check the board
If the board is in the output conveyor and the board status needs to be checked by the operator,
the PCB icon will be shown in yellow.
5.5.3 Toolbar
The toolbar contains buttons for the main station software functions.
These enable you to switch the user interface over to other views and to use the functions avail-
able there (see section 5.5.5
, page 209).
5
Fig. 5.5 - 2 Toolbar
The buttons vary according to your individual configuration and the operator level set. Some views
are only available in higher operator levels.
The following table briefly describes the buttons and main functions.
5
Icon View Description
Production
(main view)
Shows the machine status for the most frequently performed tasks
during production.
Shows the operating states, see section 5.5.2
, page 204.
Shows locations, name of setup, name of recipe, configuration
changes and additional options.
Feeder modules,
components and
nozzles
The setup can be individually opened for each of the 4 locations.
Allows you to check and configure feeder modules, components
and nozzles.
Allows you to teach component shapes and component pocket
shapes.
Shows the component level indicator.
5 Tasks at the placement machine Instruction manual SIPLACE CA4 V2
5.5 The user interface From software version 713.0 Edition 12/2019
206
Filling level view During placement, the operator is shown at all times when the
individual feeders will run empty and need to be filled up again.
PCBs Shows the boards and placement positions list.
Allows you to check and configure boards and components.
Allows you to teach fiducials.
Notifications Shows notifications about current and previous events. The notifi-
cations vary according to their type. Individual tables can be viewed
for track errors, conveyor errors, machine errors, general errors and
linked error messages (see section 5.6
, page 211).
Statistics Shows the statistics for performance, quality and rejected material.
Shows the machine and board performance.
Starts the OIS (Operator Information System), for more information
refer to the OIS documentation.
Live image during
placement
Shows the individual live camera images.
Only available from operator level "Advanced Production" :
Allows you to view and save the Vision dump.
Maintenance sta-
tus
Contains information about the maintenance status for the place-
ment machine.
Refer to the maintenance guide for further information.
Settings Contains all the settings and options.
Allows you to set the operator level and the user interface language.
Allows you to display and edit the machine settings, user settings,
machine options and software options, see section 5.5.5
, page 209.
Check sensors
and functions
Contains information and functions for tests and diagnoses.
Allows you to set the function of the start button for the placement
machine.
Only available from operator level "Advanced Production" :
Allows you to test the complete reference run and C&P20 head
functions.
Single functions and continuous runs. Each gantry is addressed
individually.
Service Service tools.
Only available from operator level "Service (customer)".
Allows you to set up and calibrate the SIPLACE placement ma-
chines, download embedded software versions, calibrate and con-
figure the entire machine.
Test bench in-
spection
Only available in the operator level Machine service.
For a detailed description of the individual functions refer to the
Online Help.
Icon View Description
Instruction manual SIPLACE CA4 V2 5 Tasks at the placement machine
From software version 713.0 Edition 12/2019 5.5 The user interface
207
5.5.4 Operating the station software in the views
Most views which can be accessed via the toolbar (see section 5.5.3, page 205) have an addi-
tional vertical toolbar with subviews and functions, on the right-hand side of the user interface.
5
Example: View: "Feeder modules, components and nozzles"
Click on "Feeder modules, components and nozzles" in the toolbar.
The following view will open:
5

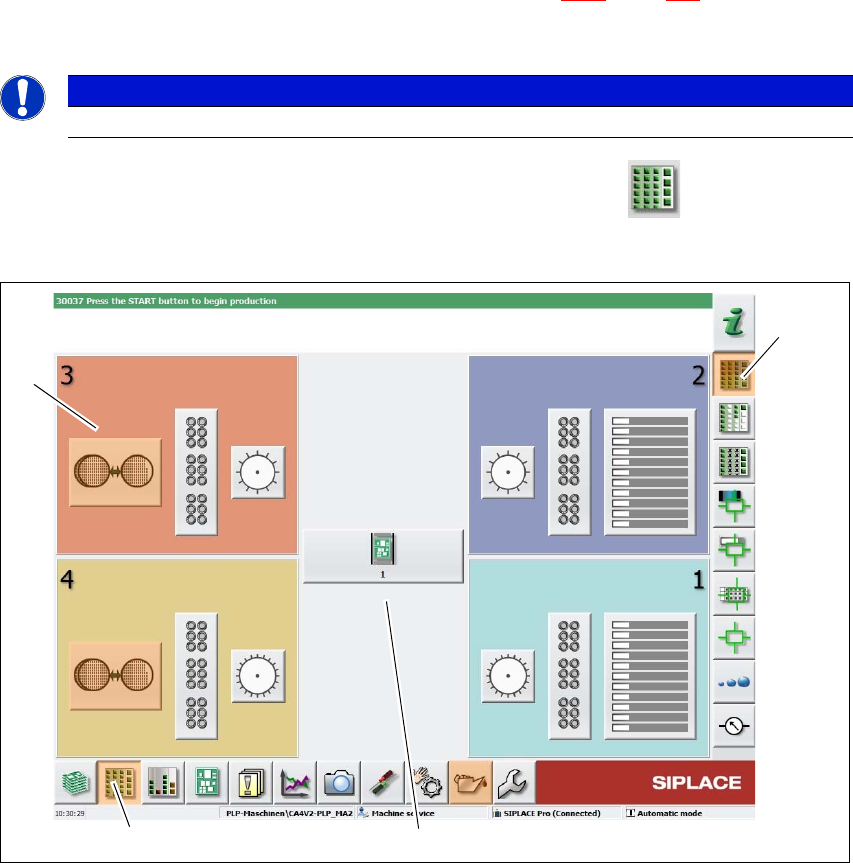

Fig. 5.5 - 3 User interface in the "Feeder module, components and nozzles" view (example)
Legend
(1) Toolbar ("Feeder modules, components and nozzles" button)
(2) Vertical toolbar in "Feeder modules, components and nozzles" view
(3) Processing area with 4 gantries
(4) Button for SIPLACE Wafer System (SWS) at location 3
Click, for example, on the SIPLACE Wafer System (SWS) (4) to open the SWS functions.
PLEASE NOTE
For a detailed description of the individual functions refer to the Online Help.
(1)
(2)
(3)
(4)
