1.2.2.2 Wafer level fan out
Wafer level fan out is used for smaller workpiece carriers with different thicknesses. The vacuum
tooling used for this can be temperature-controlled. The wafer level fan out process can also be
used in conjunction with the Gas station mode.
In Gas station mode, two workpiece carriers are moved into the placement machine at the same
time.The first workpiece carrier is conveyed into the second placement area, the following work-
piece carrier to the first placement area. These two workpiece carriers are then clamped into place
at the same time. This prevents the clamping procedure from affecting the accuracy of the other
workpiece carrier. The two workpiece carriers are placed parallel to one another. One prerequisite
for Gas station mode, is that the setup in the first and second placement area is the same.
Instruction manual SIPLACE CA4 V2 1 Introduction
From software version 713.0 Edition 12/2019 1.2 Placement machine description
21
1.2.3 Placement machine serial number
The serial number of the placement machine can be found on the inside of the machine frame at
location 1.
1

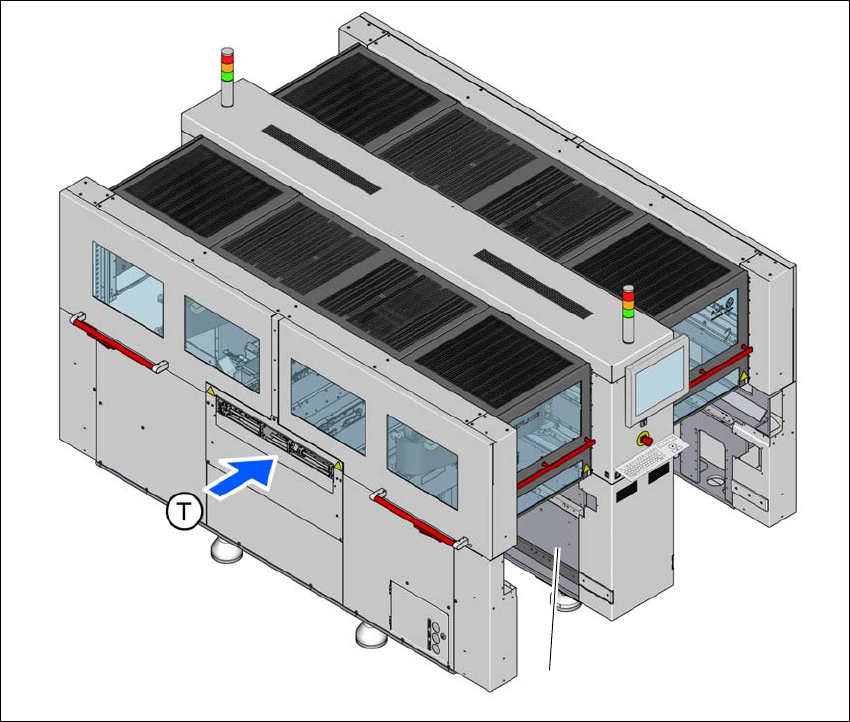

Fig. 1.2 - 3 Position of typeplate with serial number
(T) Direction of PCB conveyor
(1) Typeplate
(1)
1 Introduction Instruction manual SIPLACE CA4 V2
1.2 Placement machine description From software version 713.0 Edition 12/2019
22
1.2.4 EC Declaration of conformity
The product described below:
1
Manufactured by
ASM Assembly Systems GmbH&Co.KG
Rupert-Mayer-Str. 44
81379 Munich 1
conforms to the regulations and standards listed in the EC Declaration of
Conformity provided.
1.2.5 Use as prescribed
The product may only be used for the areas of application specified in the catalogs and technical
descriptions i.e. for the placement of SMD components and may only be used together with the
third party devices and components recommended or approved by ASM Assembly Systems
GmbH & Co. KG. Use for a different or extended purpose is not prescribed.
In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability
for any damage which occurs and will not guarantee the correct and proper function of machine
components.
Use as prescribed also includes compliance with all the instructions in the instruction manual.
For the product to operate correctly and reliably, it must have been conveyed, stored, erected and
assembled correctly and must be operated and maintained with care.
Product
Placement machine
Type SIPLACE CA4 V2
Item no.: 519781
