Instruction manual SIPLACE CA4 V 2 5 Tasks at the placement machi ne From software version 713.0 Ed ition 12/2019 5.7 Indicator lamps w ith horn 215 5.7 Indicator lamp s with horn These indicator lamp s are used t o sign…
5 Tasks at the placement machine Instruction manual SIPLACE CA4 V2
5.6 Alert information From software version 713.0 Edition 12/2019
214
5.6.4 Color coding in the Online Help alert information
5
5.6.5 Context-sensitive Online Help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
Text highlight Meaning
Red text Alert number and message
Black text Possible cause(s) of alert
Green text Instructions for solving the alert
Blue underlined text Open additional information
Instruction manual SIPLACE CA4 V2 5 Tasks at the placement machine
From software version 713.0 Edition 12/2019 5.7 Indicator lamps with horn
215
5.7 Indicator lamps with horn
These indicator lamps are used to signal operating statuses and malfunctions of the placement
machine. The buzzer issues an acoustic signal when an alert occurs. The indicator lamp system
is set in the autoconfiguration. See the station software installation guide for details, item number
00196771-xx.
5 Tasks at the placement machine Instruction manual SIPLACE CA4 V2
5.7 Indicator lamps with horn From software version 713.0 Edition 12/2019
216
5.7.1 Status displays and their meanings
5.7.1.1 Configuration of three-color indicator lamp and audio signal

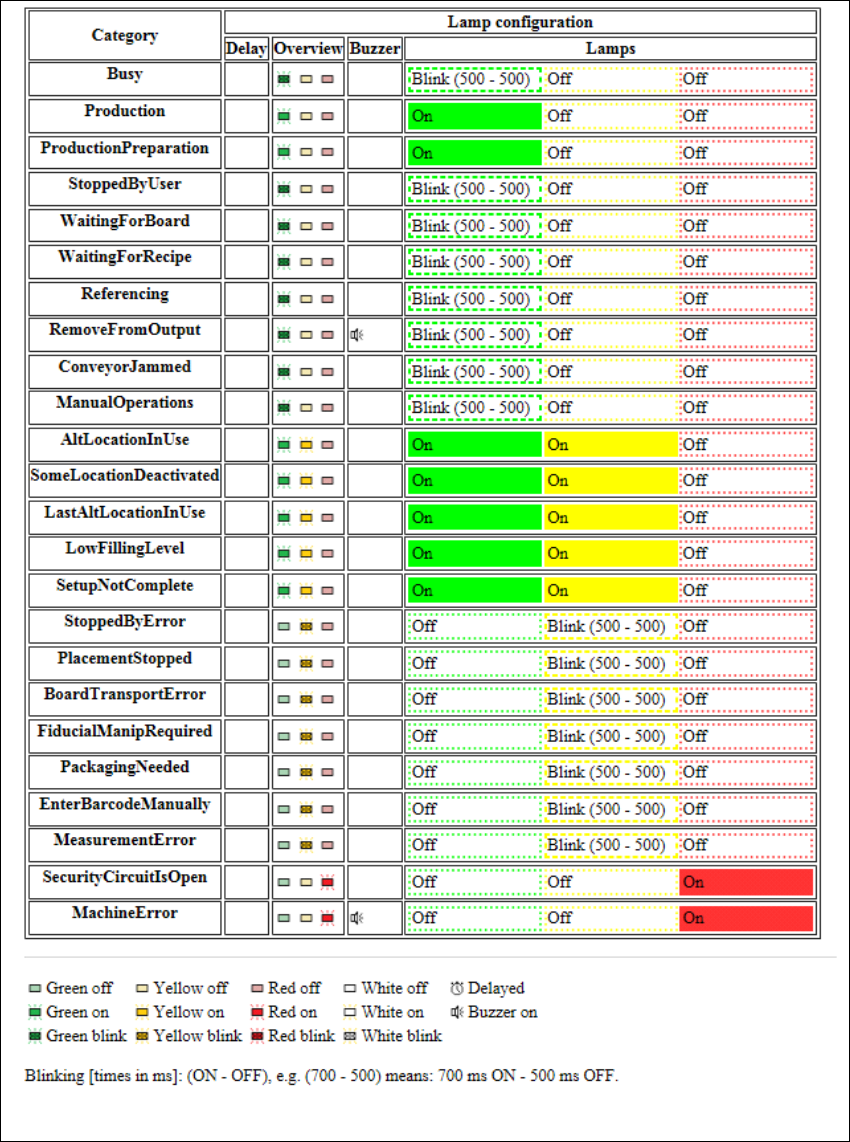

Fig. 5.7 - 1 Configuration of three-color indicator lamp and audio signal
