5.15.4 Docking the component trolley
5

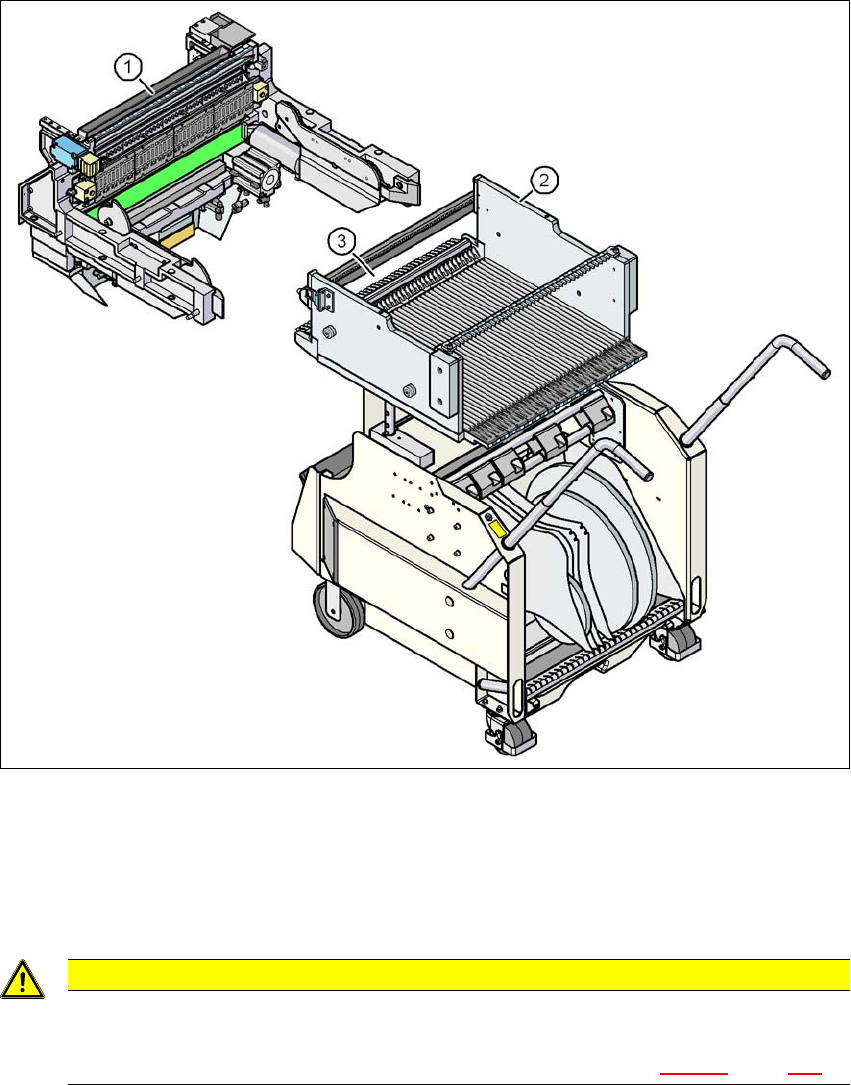

Fig. 5.15 - 3 Component trolley and COT insert, SIPLACE CA4 V2
(1) COT insert, SIPLACE CA4 V2
(2) Component trolley, SIPLACE CA4 V2
(3) Locking latches
5
CAUTION
Pushing in component trolley!
When pushing the component trolley into the placement machine, make sure that
you do not hit obstacles with the locking latches (item 3 in fig. 5.15 - 3
, page 245).
5 Tasks at the placement machine Instruction manual SIPLACE CA4 V2
5.15 Docking the component trolley in or out From software version 713.0 Edition 12/2019
246
5
5
Carefully push the component trolley into the placement machine as far as the stop.
5
Press the button on the respective placement machine location until the trolley is completely
docked in.
Push the sleeve (item 1 in fig. 5.15 - 4, page 247) on both handles up and swivel the handle
down (item 2 in fig. 5.15 - 4
, page 247).
PLEASE NOTE
Cut tapes flush
If you do not cut tapes off flush at the front end of the X feeder modules, the emptied
tapes will not enter the empty tape duct.
Cut the tapes off flush, before you dock the component trolley into place.
CAUTION
Position of placement head!
Check that the placement head is outside the range of the component trolley.
PLEASE NOTE
Docking only possible if protective cover is closed
Close the protective covers.
Instruction manual SIPLACE CA4 V2 5 Tasks at the placement machine
From software version 713.0 Edition 12/2019 5.15 Docking the component trolley in or out
247
5

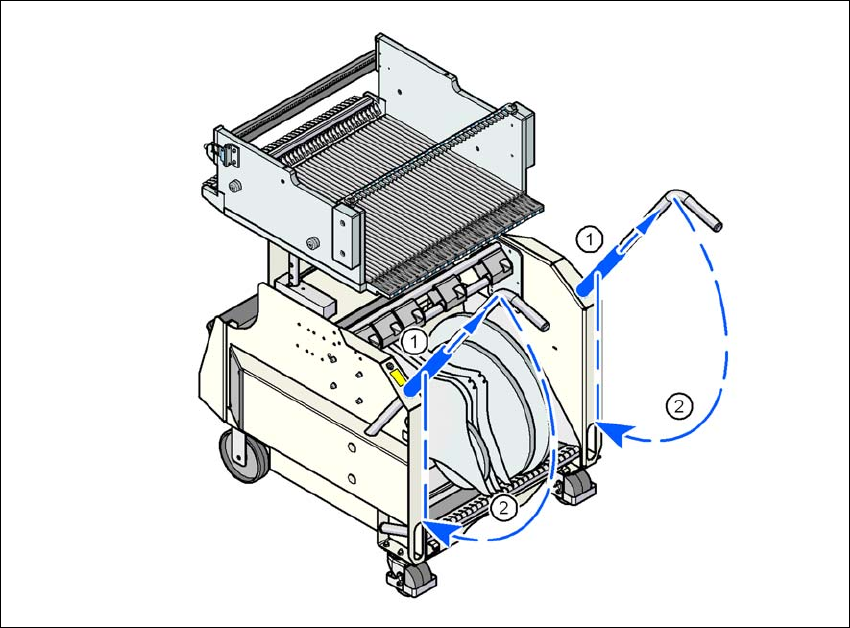

Fig. 5.15 - 4 CA4 V2 component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
