Instruction manual SIPLACE CA4 V2 6 Component handling
From software version 713.0 Edition 12/2019 6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2
255
6.1.3.1 Feeder module adapter with label presenter
6

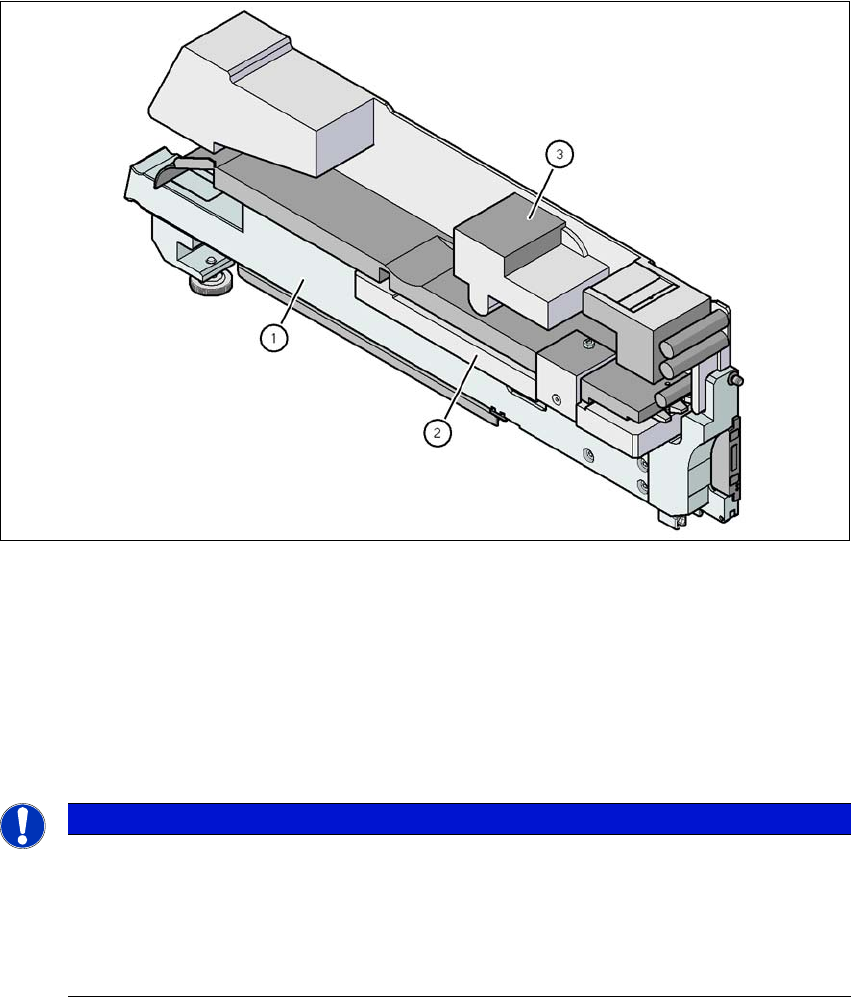

Fig. 6.1 - 4 Feeder module adapter with label presenter
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for label presenter (item no. 00141310-xx)
(3) Label presenter
6.1.3.2 Feeder module adapter with linear vibratory feeder
6
6
PLEASE NOTE
Use of adapter plate
An adapter plate is supplied as standard with the adapter for CA4 V2 feeder modules:
The adapter plate should be used for component heights up to 16.5 mm.
Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
6 Component handling Instruction manual SIPLACE CA4 V2
6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2 From software version 713.0 Edition 12/2019
256
6

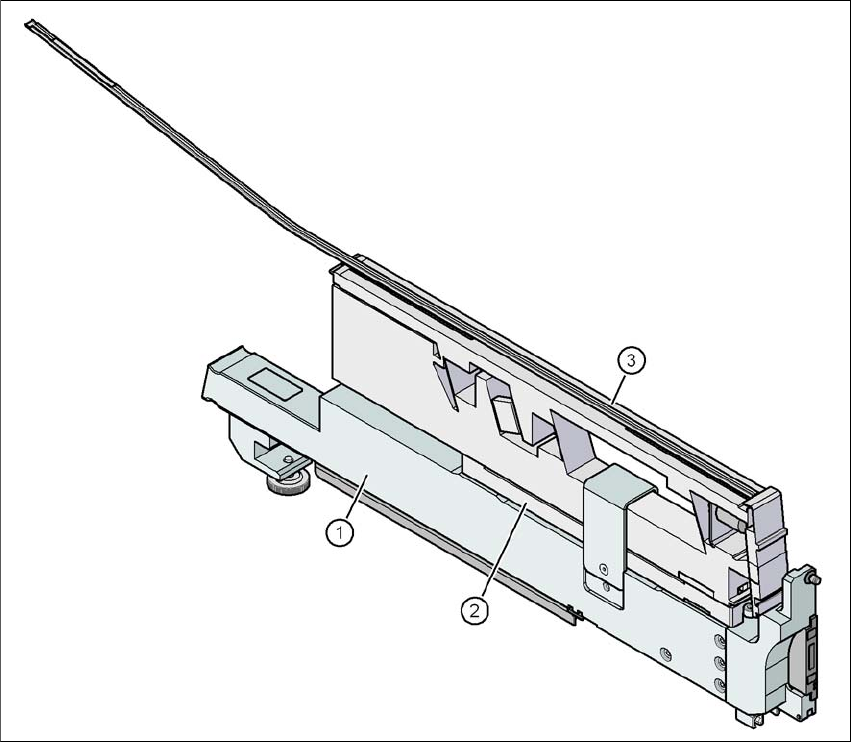

Fig. 6.1 - 5 Feeder module adapter with linear vibratory feeder
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder module 1, 2 or 3 6
Occupied feeder module locations 3 6
Stock of components Up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / 1 x 6
Vibrating time: variable setting with SIPLACE Pro from 400 to
over 1000 msec 6
Instruction manual SIPLACE CA4 V2 6 Component handling
From software version 713.0 Edition 12/2019 6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2
257
6.1.3.3 Feeder module adapter with reject conveyor
6
Fig. 6.1 - 6 Feeder module adapter with reject conveyor
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor (reject module)
