Instruction manual SIPLACE CA4 V2 6 Component handling From software version 713.0 Ed ition 12/2019 6.1 SIPLACE tape feed er modules for SIPLACE CA4 V2 261 6.1.5.2 Safety instructions 6.1.5.3 T echnical dat a 6 6 6 6 War…
6 Component handling Instruction manual SIPLACE CA4 V2
6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2 From software version 713.0 Edition 12/2019
260
6.1.5 SIPLACE PowerConnector X
Item no. 00141420-xx SIPLACE PowerConnector X
6

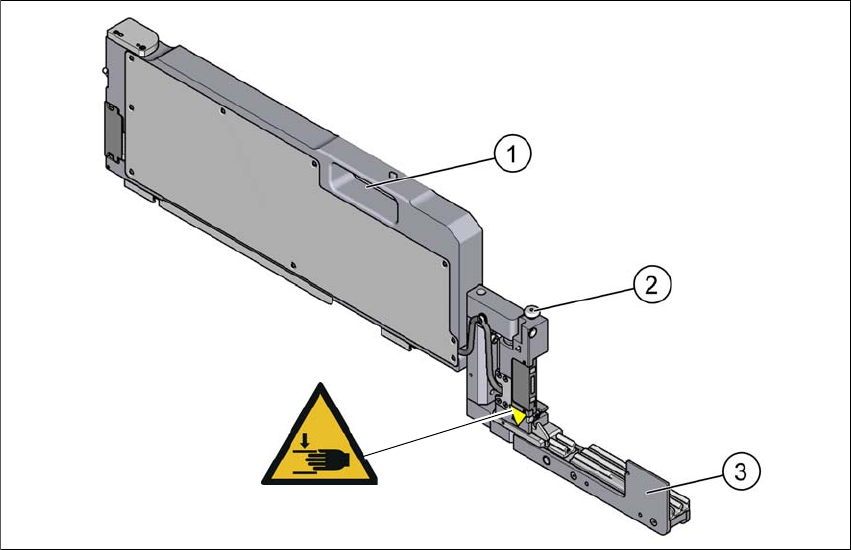

Fig. 6.1 - 8 SIPLACE PowerConnector X
(1) Handle
(2) Unlocking button for extender arm and feeder
(3) Extender arm (in work position)
Item W 024, item no. 03155346-01
6.1.5.1 Description
The SIPLACE PowerConnector X helps to resolve problems connected to SIPLACE X feeder
modules in the machine, without the need to stop the production process.
For a detailed description, see the SIPLACE PowerConnector X user guide, [item no. 00198772-
01-xx.]
W 024
Instruction manual SIPLACE CA4 V2 6 Component handling
From software version 713.0 Edition 12/2019 6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2
261
6.1.5.2 Safety instructions
6.1.5.3 Technical data
6
6
6
6
Warning about hand injuries
There is a risk of injury to hands when folding the extender arm up
into the park position.
When folding up the extender arm, make sure that you do not
trap your hand between the extender arm and the
S
IPLACE PowerConnector X.
Length 648.4 mm (folded in)
866.9 mm (folded out)
Width 34.4 mm
Height 188.4 mm
Occupied locations 3
Weight 3.2 kg
6 Component handling Instruction manual SIPLACE CA4 V2
6.1 SIPLACE tape feeder modules for SIPLACE CA4 V2 From software version 713.0 Edition 12/2019
262
6.1.6 Tray holder for component trolley
Item no. 00141285-xxTray holder for X-Series
6

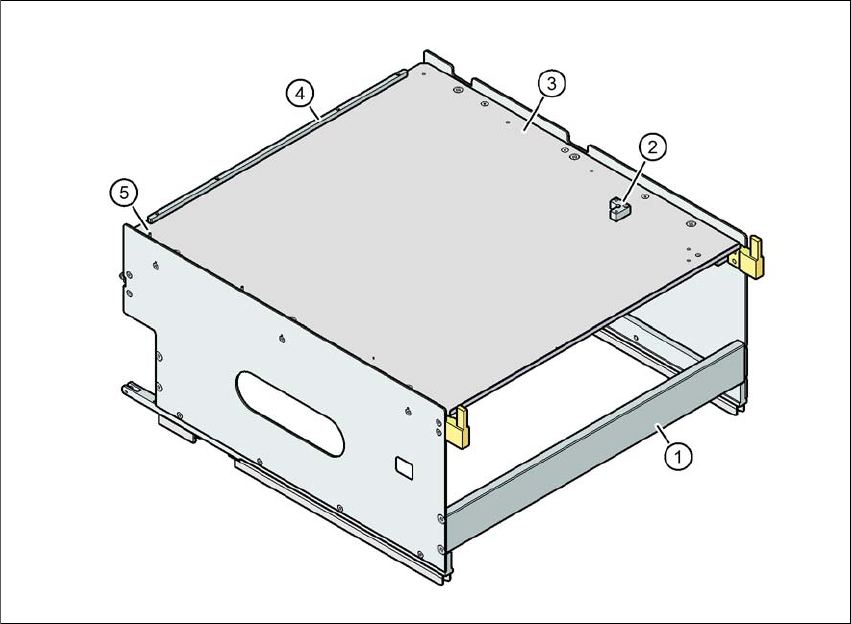

Fig. 6.1 - 9 Tray holder
(1) Tray holder
(2) Bracket for 2nd JEDEC waffle pack tray
(3) Waffle pack tray carrier
(4) Stop bar for the JEDEC waffle pack tray
(5) Locating pin - zero point of JEDEC waffle pack tray
6
Individually placed JEDEC waffle pack trays or waffle pack magazines can be fixed to the waffle
pack tray carrier with magnets. If two JEDEC waffle pack trays are placed, these will need to be
fixed into place with locking bars or mounting rails, as used for the MTC waffle pack tray carriers.
Parts: Item no.:
Magnet 00316593-xx
Locking bar/mounting rail for JEDEC magazines 00372615-xx
