6.2.4 Fiducials on the component trolley
6

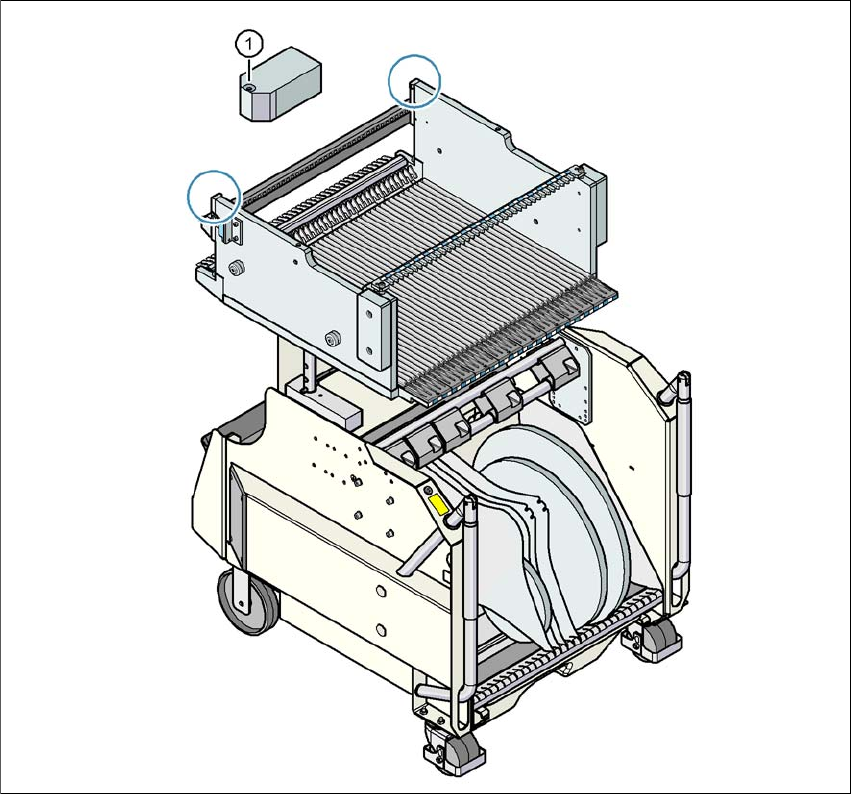

Fig. 6.2 - 4 Fiducials on the component trolley
(1) Fiducials on the component trolley
Once the SIPLACE component trolley has been docked in, the placement machine measures the
fiducials on the component trolley.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
Instruction manual SIPLACE CA4 V2 6 Component handling
From software version 713.0 Edition 12/2019 6.2 Component trolley
271
6.2.5 Dimensions of the component trolley
6
Fig. 6.2 - 5 Component trolley dimensions in millimeters
6 Component handling Instruction manual SIPLACE CA4 V2
6.2 Component trolley From software version 713.0 Edition 12/2019
272
6.2.6 Changeover table
The front slider guides of the feeder modules are placed on the insertion aid. As it is pushed in,
the guides of the feeder module slide on the guide profile as far as the stop bar. A centering hole
on the stop bar holds the "front" centering pin of the X feeder module. At the same time, the
changeover table locking latch (item 1 in fig. 6.2 - 7
, page 273) engages onto the locking roller of
the feeder module. The "back" centering pin on the top of the feeder module is held by the recess
in the centering bar.
6
Fig. 6.2 - 6 Changeover table, back view
(1) Insertion aid
(2) Guide profile ( profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Contact for switching the safety switch of the EMERGENCY STOP circuit
(7) Hand guard
