Instruction manual SIPLACE CA4 V2 7 Station extensions From software version 713.0 Ed ition 12/2019 7.1 Nozzle changer 291 7 Fig. 7.1 - 9 Nozzle changer for t he C&P/CPP - changing the magazine (1) Lev er for raising…
7 Station extensions Instruction manual SIPLACE CA4 V2
7.1 Nozzle changer From software version 713.0 Edition 12/2019
290
7.1.3.2 Changing the magazine
Press the lever (item 1 in fig. 7.1 - 9, page 291), to release the magazine from the balls of the
snap fasteners (item 5 in fig. 7.1 - 9
, page 291). Lift the magazine off the base.
7
WARNING
Risk of head crashes with protruding lever
Any lever that is protruding over the magazine (item 1 in fig 7.1 - 9
) can result in a head
crash.
You should therefore make sure that the lever does not protrude over the maga-
zines.
Instruction manual SIPLACE CA4 V2 7 Station extensions
From software version 713.0 Edition 12/2019 7.1 Nozzle changer
291
7
Fig. 7.1 - 9 Nozzle changer for the C&P/CPP - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "magazine locked" position
7
PLEASE NOTE
7
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
7.1 - 9
, page 291) can slide into the centering holes and slot.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
7 Station extensions Instruction manual SIPLACE CA4 V2
7.1 Nozzle changer From software version 713.0 Edition 12/2019
292
Place the magazine on the snap fastener balls (item 5 in fig. 7.1 - 9, page 291).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
7.1.3.3 Position detection
Each nozzle changer magazine has two fiducials for determining the position.
7

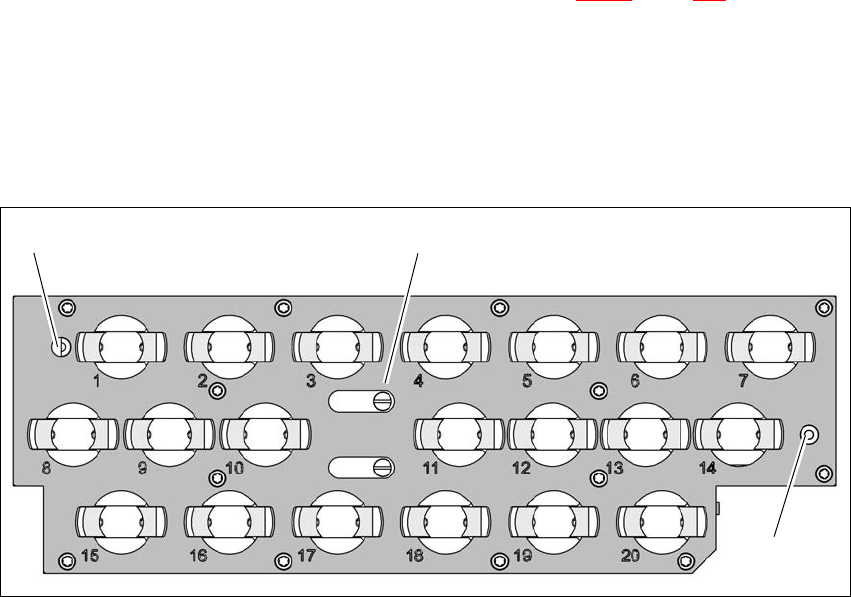

Fig. 7.1 - 10 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducials for determining the position
(1)
(2)
(2)
