2 Operational safety Instruction manual SIPLACE CA4 V2 2.2 Warning labels From software version 713.0 Edition 12/2019 38 2.2.3 Meaning and description of wa rning labels (default labelin g) 2.2.3.1 Information sign M002 …
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.2 Warning labels
37
2.2.2 Warning labels in the placement machine

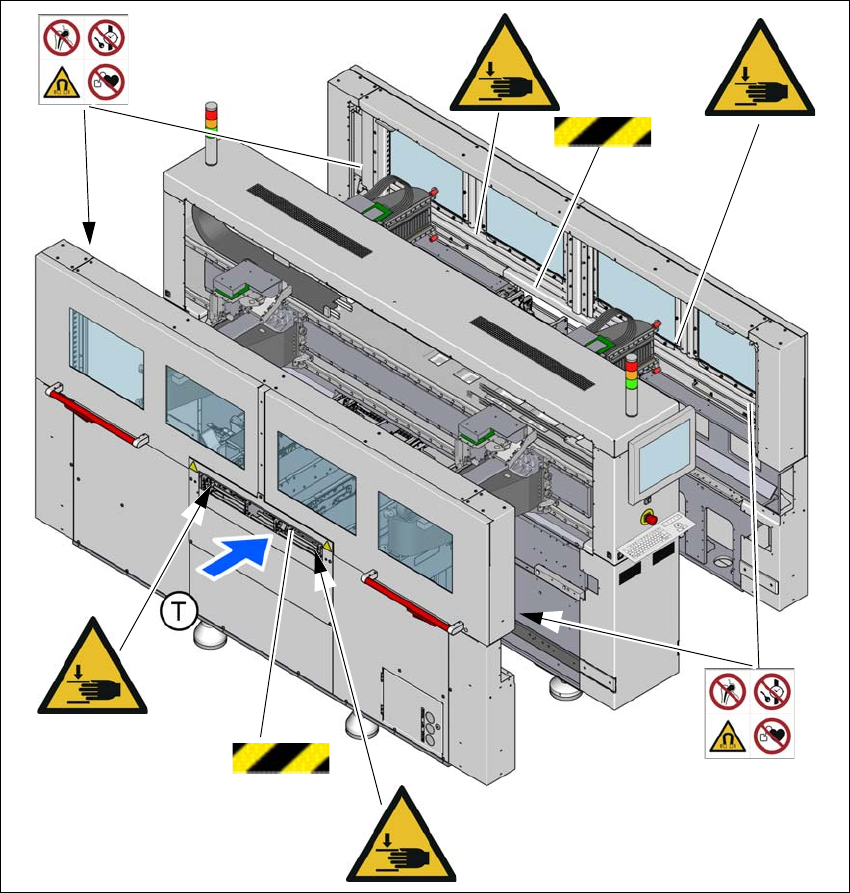

Fig. 2.2 - 3 Warning labels in the placement machine - default labeling
Item W 024, item no. 03155346-01
Item W 006, item no. 03155812-01
(1) Warning strips
The warning labels are attached to the inside of the metal cover panels.
W 006
W 006
1
1
W 024
W 024
W 024
W 024
2 Operational safety Instruction manual SIPLACE CA4 V2
2.2 Warning labels From software version 713.0 Edition 12/2019
38
2.2.3 Meaning and description of warning labels (default labeling)
2.2.3.1 Information sign M002
2
Item M 002 in fig. 2.2 - 1, page 35, item no. 3155798-01 or
Item M 002 in fig. 2.2 - 5
, page 44, item no. 3155798-01
(Quantity per placement machine: 1)
2.2.3.2 Warning sign laser class 2
2
W Laser class 2 in fig. 2.2 - 1, page 35, item no. 03155298-01
(Quantity per placement machine: 1)
2.2.3.3 Warning label W 024
2
W 024 in fig. 2.2 - 1, page 35 and 2.2 - 2, page 36, item no. 03155346-01
(Quantity per placement machine: 16)
2
2
2
2
2
2
2
2
Safe operation of placement machine
Safe operation of the placement machine depends absolutely on
the operator being familiar with the instruction manual and safety
instructions and putting them into effect.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
2
2
2
Warning about hand injuries
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the running placement machine.
Do not reach into the inside of the adjacent placement ma-
chine
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.2 Warning labels
39
2.2.3.4 Warning label W 012
2
Item W 012 in fig. 2.2 - 1, page 35, item no. 03155378-01 or
Item W 012 in fig. 2.2 - 5
, page 44, item no. 03155378-01
(Quantity per placement machine: 1)
2.2.3.5 Warning label W 210
2
W 210 in fig. 2.2 - 1, page 35 and 2.2 - 2, page 36, item no. 03009350-01
(Quantity per placement machine: 2)
2.2.3.6 Warning label W 209
2
W 209 in fig. 2.2 - 1, page 35 and 2.2 - 2, page 36, item no. 03009349-01
(Quantity per placement machine: 2)
Dangerous voltages
Marked parts are initially still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the placement machine from the mains before opening
the cover.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
2
2
2
2
2
Warning sign on the EMERGENCY STOP button
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warning label
W209 is affixed to the extension kit instead of the yellow
ring on the EMERGENCY STOP buttons.
