Instruction manual SIPLACE CA4 V2 2 Operational safety From software version 713.0 Edition 12/2019 2.2 Warning labels 45 Fig. 2.2 - 6 Warning labels on the placement machine - part 2 - labeling for China Item W 204-CN, i…
2 Operational safety Instruction manual SIPLACE CA4 V2
2.2 Warning labels From software version 713.0 Edition 12/2019
44
2.2.5 Warning labels on the placement machine (label for China)

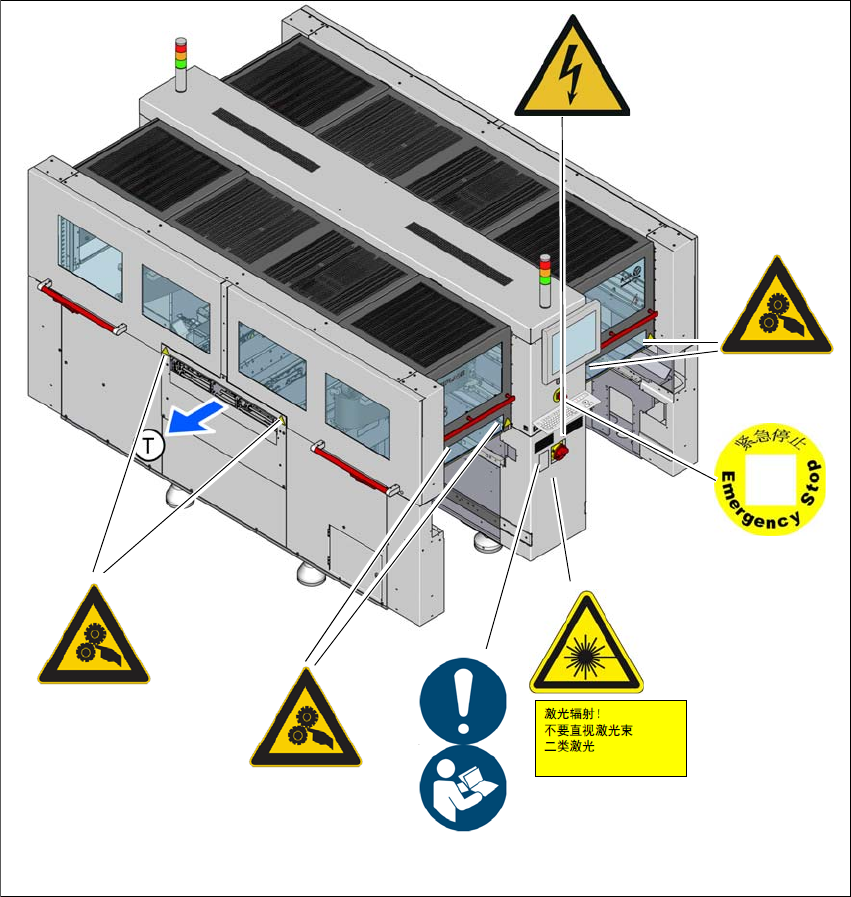

Fig. 2.2 - 5 Warning labels on the placement machine - part 1 - labeling for China
Item W 002, item no. 03155798-01
Item W 204-CN, item no. 03149290-01
Item W 209-CN, item no. 03149080-01
Item W 012, item no. 03155378-01
Item W 004-CN, item no. 03155348-01
(1) Laser text label, item no. 03155432-01
(T) Direction of PCB conveyor
W 204-CN
W 209-CN
M 002
W 204-CN
W 204-CN
W 004-CN
W 012
(1)
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.2 Warning labels
45

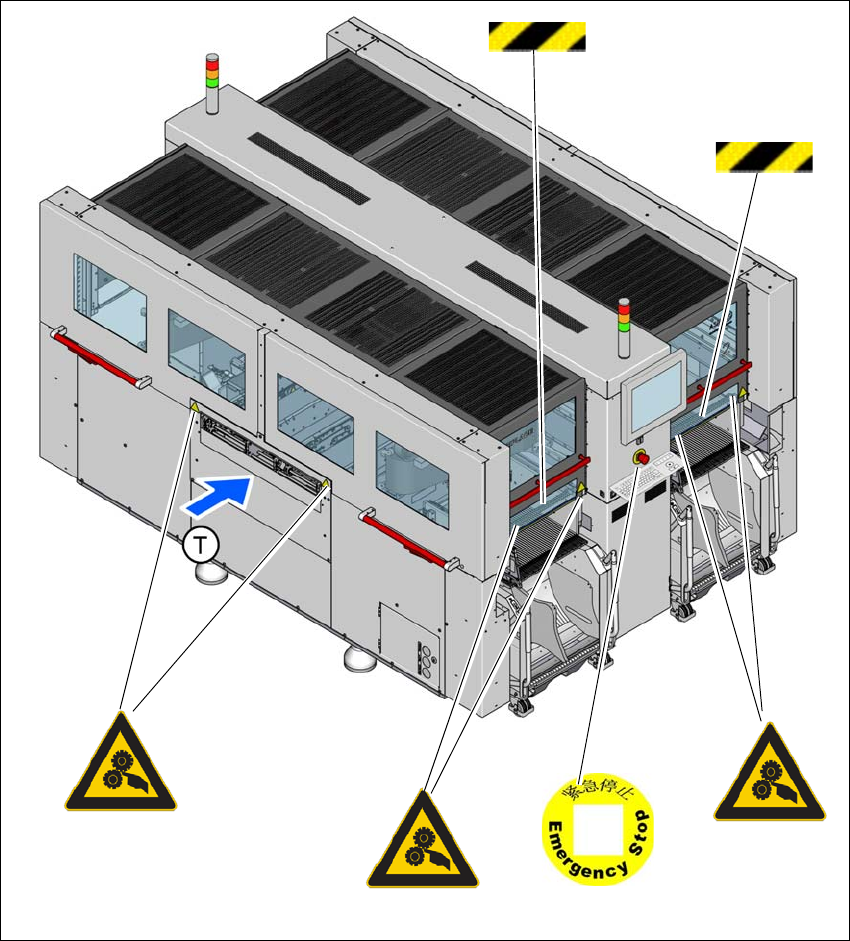

Fig. 2.2 - 6 Warning labels on the placement machine - part 2 - labeling for China
Item W 204-CN, item no. 03149290-01
Item W 209-CN, item no. 03149080 -01
(1) Warning strips, down on the four protective hoods
(T) Direction of PCB conveyor
1
1
W 204-CN
W 204-CN
W 204-CN
W 209-CN
2 Operational safety Instruction manual SIPLACE CA4 V2
2.2 Warning labels From software version 713.0 Edition 12/2019
46
2.2.6 Warning labels in the placement machine (labels for China)
Fig. 2.2 - 7 Warning labels in the placement machine - labeling for China
Item W 204-CN, item no. 03149290-01
Item W 006, item no. 03155812-01
(1) Warning strips
(T) Direction of travel
The warning labels are attached to the inside of the metal cover panels.
1
1
W 006
W 006
W 204-CN
W 204-CN
W 204-CN
W 204-CN
