Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.2 Warning labels
57
2.2.14 Warning sign on PCB conveyor
2

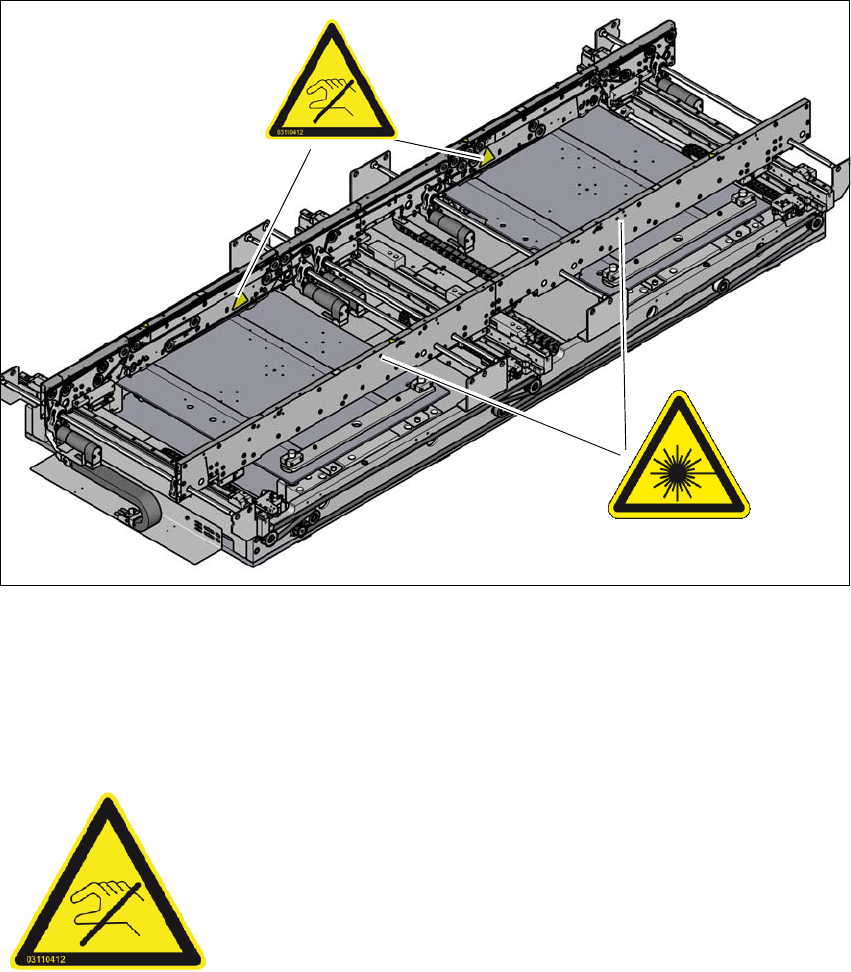

Fig. 2.2 - 14 Warning labels on the board conveyor (example of single conveyor)
(1) Sensitive conveyor sides
Item. W 004, on the laser light barrier
2.2.14.1 Warning label "Sensitive conveyor sides" on the clamping plate
2
Item no. 03110412-01 (quantity: single conveyor 2, dual conveyor 4)
W 004
1
Sensitive conveyor sides!
The conveyor sides are highly sensitive and may not be moved
unless the brakes have been released.
Moving the sides without releasing the brakes can cause irrepa-
rable damage to the conveyor sides.
2 Operational safety Instruction manual SIPLACE CA4 V2
2.2 Warning labels From software version 713.0 Edition 12/2019
58
2.2.14.2 Warning label W 004
2
W 004 in fig. 2.2 - 14, page 57, item no. 03223713-01
(quantity: single conveyor 2, dual conveyor 4)
2.2.15 Safety instruction for wafer lane conveyor
2
Fig. 2.2 - 15 Warning signs on the wafer lane conveyor with temperature-controlled vacuum tooling DM 300
(1) Watch out for fluid splash
(2) Watch out for high temperatures
2
LASER RADIATION
Risk class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
(1)
(2)
(1)
(2)
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.2 Warning labels
59
2.2.15.1 Watch out for fluid splash
2
1 in fig. 2.2 - 15, page 58 (quantity per temperature-controlled vacuum tooling: 2)
2.2.15.2 High temperatures on the temperature-controlled vacuum tooling option DM 300
2
2 in fig. 2.2 - 15, page 58 (quantity per temperature-controlled vacuum tooling: 2)
