Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.3 Classification of camera systems
61
2.3.2 Classification of the camera systems
2.3.2.1 Camera types with bright LEDs - risk group 1
The bright LEDs are fitted in the following cameras. These are classified as risk group 1, according
to IEC 62741:.
– Component camera type 45 and 49
– PCB camera, type 28
2
2.3.2.2 Camera types with blue LEDs - risk group 2
The ultra-bright blue LEDs are fitted in the following cameras. These are classified as risk group
2, according to IEC 62741:.
– Component camera, type 48
2
2
PLEASE NOTE
Risk group 1
Do not look into the beam of the ready-for-operation camera!
2
Risk group 2
The beam from cameras with ultra-bright blue LEDs can be a haz-
ard.
Do not look into the beam of the ready-for-operation camera!
2 Operational safety Instruction manual SIPLACE CA4 V2
2.4 Safety instructions for transportation From software version 713.0 Edition 12/2019
62
2.4 Safety instructions for transportation
2.4.1 Transporting the placement machine
2

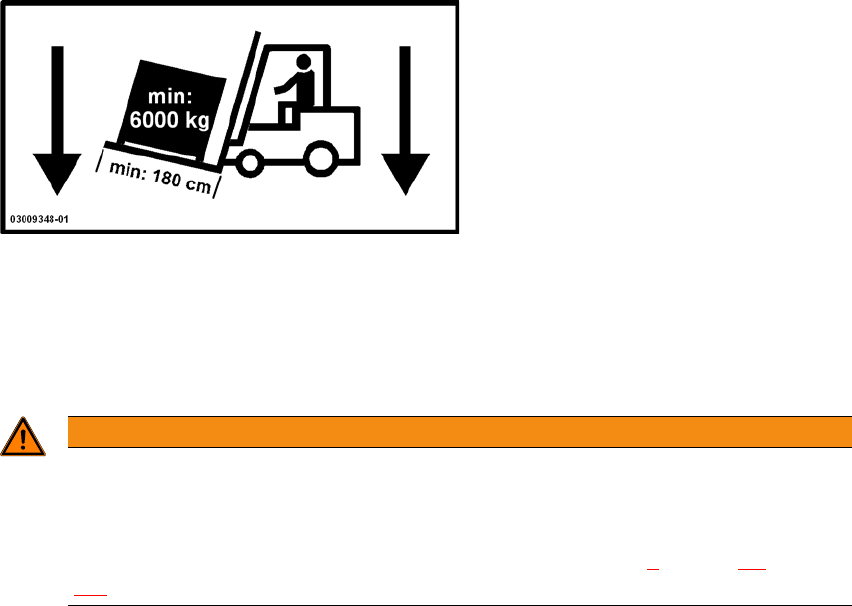

Use a fork-lift truck with the following specification to carry the placement machine:
Fork length: Min. 1800 mm
Carrying power: Min. 6000 kg
Clear width between forks: Min. 350 mm 2
2
WARNING
Risk of tilting!
Risk of tilting, if the required specifications for the fork-lift truck are not observed.
Only use the specified fork-lift for transportation.
Transportation of the placement machine is described in chapter 4
, section 4.1, page
143
.
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.5 Safety instructions for operation
63
2.5 Safety instructions for operation
2.5.1 Safety instructions for closing the protective covers
To avoid risk of injury when closing the protective covers on the placement machine, the operator
must instruct the personnel concerned to always follow the instructions below when handling the
protective covers.
2
2

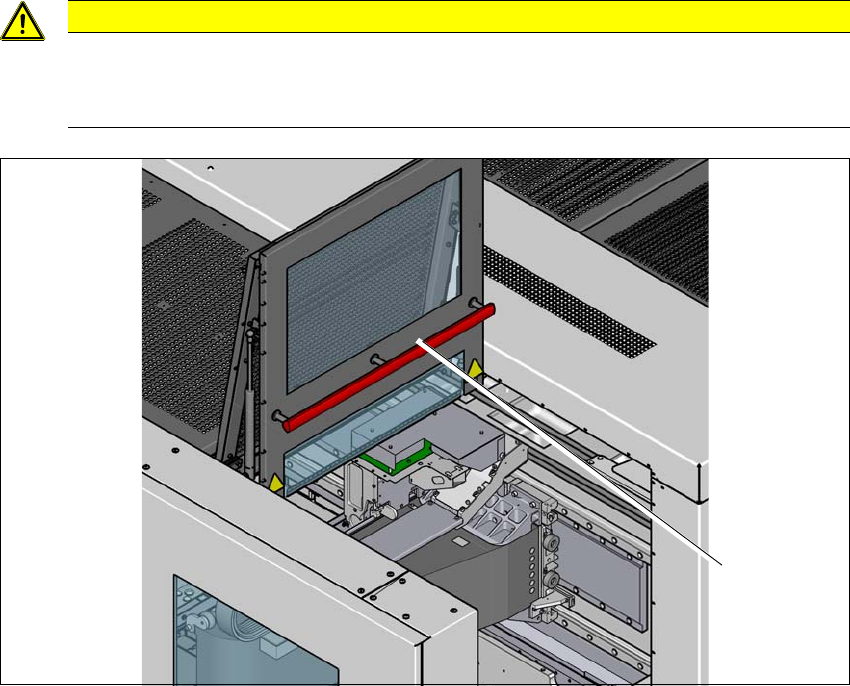

Fig. 2.5 - 1 Safety instructions for closing the protective covers
(1) Grab handles
To open or close the protective covers, always take hold of these by the grab handles.
When closing, do not reach into the gap between the protective cover and the machine panel.
When closing the protective cover, make sure that the area in which it is swiveled is free of
obstruction and that no other people are at risk of injury.
CAUTION
Risk of crushing hands!
Risk of crushing hands if the protective covers are not closed correctly.
Close the protective covers correctly.
(1)
