2.5.9 Safety instructions for docking the component trolley in or out
2
2
2
2
2
2.5.10 Safety instructions for emptying the waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so. To prevent this, observe the safety instructions in section
5.8.2
, page 221.
WARNING
Operation only with component trolley!
The placement machine may only be operated if there is a component trolley present
and docked at each location.
Fill any free locations with dummy feeder modules as described in
section 2.6.5
, page 83.
WARNING
DANGER OF CRUSHING!
Risk of crushing when docking and undocking the component trolley.
Always dock/undock the component trolley alone.
CAUTION
Risk of breaking handles!
Risk of breaking handles when transporting the component trolley.
When transporting the component trolley, do not lift it by its handles.
CAUTION
Risk of injuring limbs!
Risk of injuring limbs when docking and undocking.
When docking and undocking, make sure that there are no body limbs in the travel
area of the component trolley.
CAUTION
Risk of injury due to uncontrolled movement of component trolley!
Make sure that the component trolley does not roll away on inclined surfaces or ramps.
Secure the component trolley so that it does not start rolling away.
2 Operational safety Instruction manual SIPLACE CA4 V2
2.6 Safety features From software version 713.0 Edition 12/2019
70
2.6 Safety features
2.6.1 Protective covers and sliding doors
The travel range of the gantries is covered with four movable protective covers. Side sliding doors
make it easier to access the inside of the SWS. The protective hoods, sliding doors and covers
serve as protective devices which prevent unauthorized access to the inside of the placement ma-
chine.
2
2
CAUTION
Risk of damage!
The protective hoods, sliding doors and other covers could be damaged if too much force
is exerted.
Do not stand on or climb up the protective hoods, sliding doors or covers.
CAUTION
Make sure that foreign bodies do not fall into the inside of the placement machine!
Foreign bodies could fall into the placement machine through the vents in the pro-
tective covers. Small parts such as components could fall into the placement ma-
chine.
Do not use the protective covers as a surface on which to place objects. Do not
place anything on the vents in the protective covers. Small parts such as compo-
nents could fall into the placement machine.
Instruction manual SIPLACE CA4 V2 2 Operational safety
From software version 713.0 Edition 12/2019 2.6 Safety features
71
2

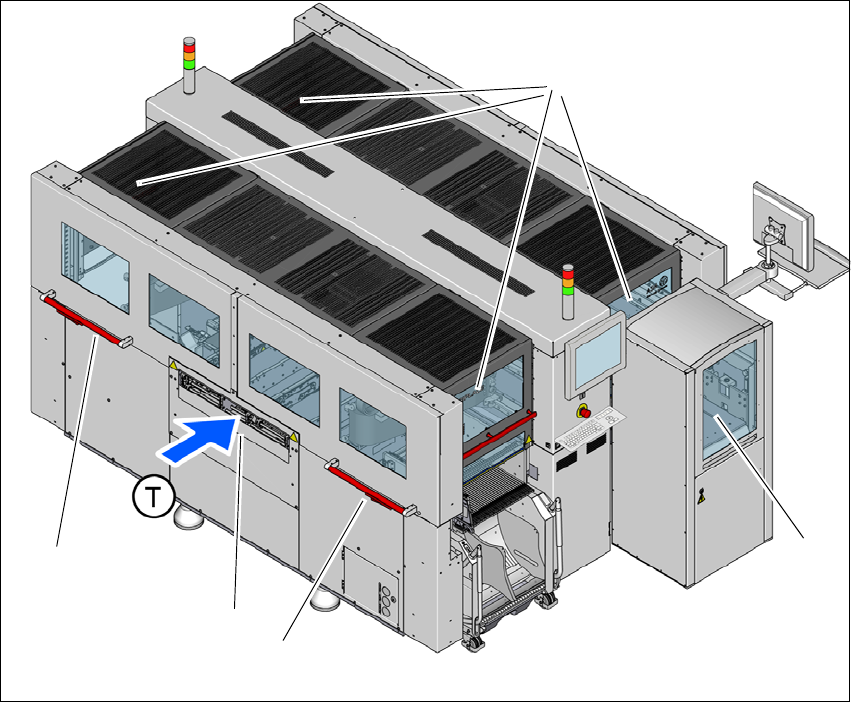

Fig. 2.6 - 1 Protective covers and other covers
(1) Protective covers on the locations
(2) SWS magazine lift with sliding door (optional)
(3) Side sliding door
(4) Hand guard on the input conveyor
(T) Direction of PCB conveyor
The traveling range of the gantries has four protective covers that can be swung upwards (item
1). Side sliding doors (item 3) make it easier to access the inside area. The SWS magazine lift is
covered by a sliding door (item 2). The hand guard (item 4) over the input or output conveyor pre-
vents unauthorized access to the PCB conveyor.
(1)
(2)
(3)
(4)
(3)
