Nozzle changer CPP
Page 4 / 6 23.11.2021
Nozzle changer CPP
Page 5 / 6 23.11.2021
Pos. Item no. Description Part marking
00119741-01 NOZZLE CHANGER CPX LONG
1 03070123-02 NOZZLE CHANGER BASIS
ASSEMBLY CPX LONG
Spare Part

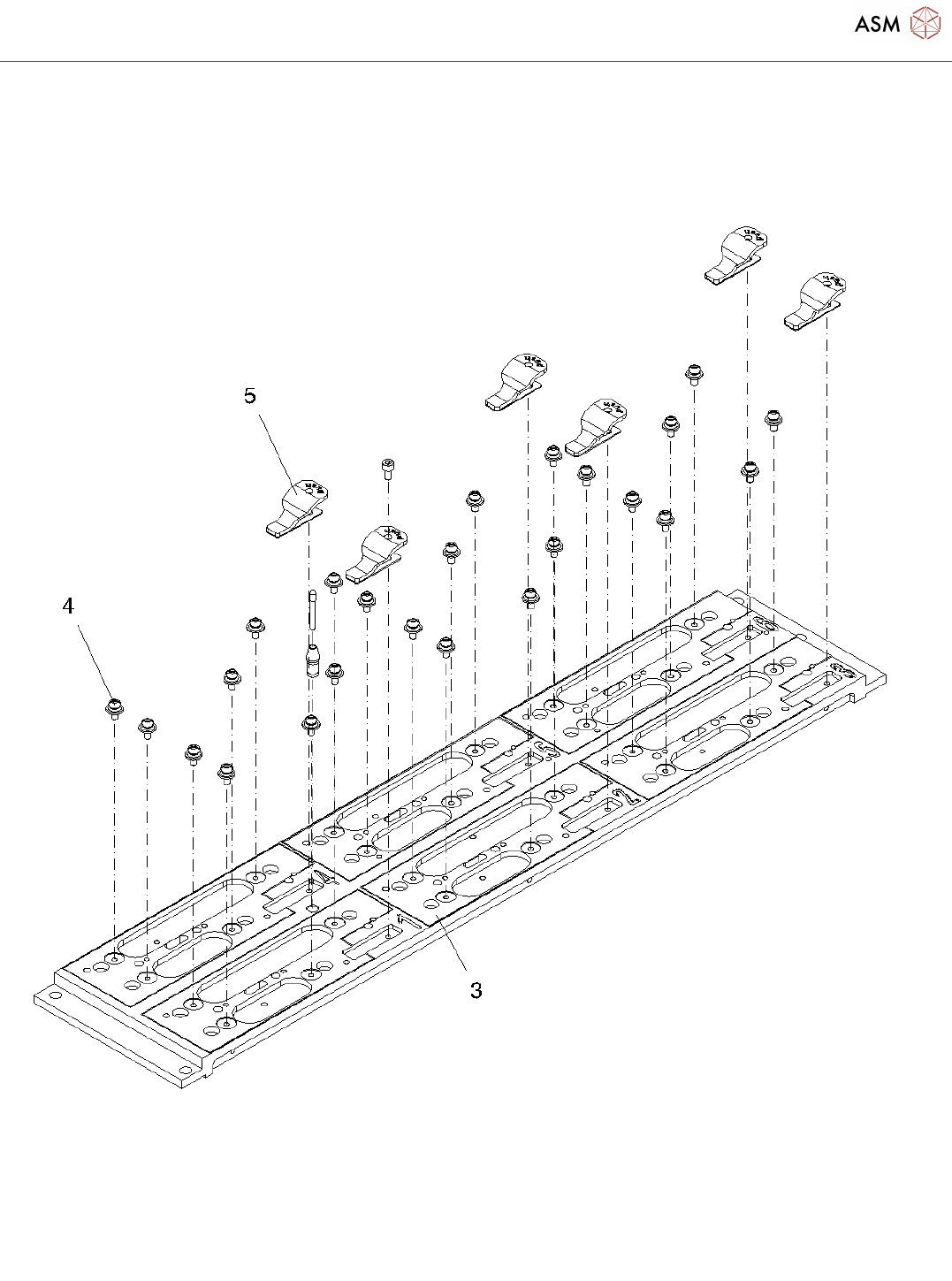

2 03070735-01 BASIS PLATE CPX LONG CPLT.
3 03070113-01 BASIS PLATE CPX LONG
4 03001821-01 BALL FOR SNAP FASTENER SPARE PART
5 03013445S01 LEVER COMPLETE SPARE PART
03072906-01 LIGHT GUIDE BUSHING CPX
03072502-01 LIGHT GUIDE SPHERICAL CPX
8 03070775-01 SLIDER LONG/ NC CPX LONG
COMPL.
9 03063318-01 DRIVE CPX CPLT.
10 03064012-01 VALVE CPX CPLT.
11 03063425S01 SWITCH UNIT CPX CPLT. SPARE PART
12 03069324-02 PCB / MAIN-PCB CPX CPLT.
13 03069337-02 PCB / SUB-PCB CPX KPLT.
14 03070058-01 KULISSE CPX
15 03070371-01 LIGHT BARRIER ANGLE CPX
16 03073176-01 COVER SHEET CPX LONG
17 03072807-01 CONNECTING CABLE CPX
18 03073078-01 CONNECTING CABLE CPX
00334212-01 KABEL: STEUERPL.
PIPETTENWECHS. - VENTIL
03073219-01 HOSE 1 DRIVE CPX / 200MM
03073220-01 HOSE DRIVE CPX / 240MM
03073221-01 CONNECTING TUBE CPX
20 03065782-03 NOZZLE MAGACINE TYPE 28XX SPARE PART
21 03066107-02 NOZZLE MAGACINE TYPE 20XX SPARE PART
00119742-01 NOZZLE CHANGER 2 CPP X-SERIES
03070123-02 NOZZLE CHANGER BASIS
ASSEMBLY CPX LONG
Spare Part
03065782-03 NOZZLE MAGACINE TYPE 28XX SPARE PART
03066107-02 NOZZLE MAGACINE TYPE 20XX SPARE PART
03005337-03 MOUNT, NC OPTION SPARE PART
22 03031981-01 MOUNT FOR NZ
23 03021079-01 NOZZLE CHANGER SHIM PLATE SPARE PART
