EUKYX 4-16 199-2100 3.1 "PP Prod. His." Window 3. 1 "PP P r od. His. " Windo w The PCB production star t date and ti me, and end dat e and time a re recorded. F2D14

EUKYX

4-15199-2100

3. "CRNT.PP.MNG.DT" Window

This window enables the operator to confirm the production management data for the current

pattern program.

[2]

[1]

[3]

Graphic

Development

F2D13

[1] Tabs and Tab Sheets

There are three tab sheets for the "CRNT.PP.MNG.DT" window. When any tab is pressed, the

corresponding tab sheet appears.

Buttons Description

PP Prod. His. In this tab sheet, the automatic operation starting date and time and ending

date and time are recorded.

Mach.Prfrm. In this tab sheet, the device management result data is displayed.

Reference

Refer to “2.1 “Mach.Prfrm,” Tab Sheet” for each item.

FdrMng. In this tab sheet, the pick-up data for each feeder is displayed.

Reference

Refer to “2.2 “FdrMng.” Tab Sheet” for each item.

[2] [Clear] Button

When this button is pressed, all the data parameters are deleted in each tab sheet for the "CRNT.

PP.MNG.DT" window.

[3] Information on Totalization File Information

The update date and time for the totalization file and pattern program are displayed in this area.

EUKYX

4-16199-2100

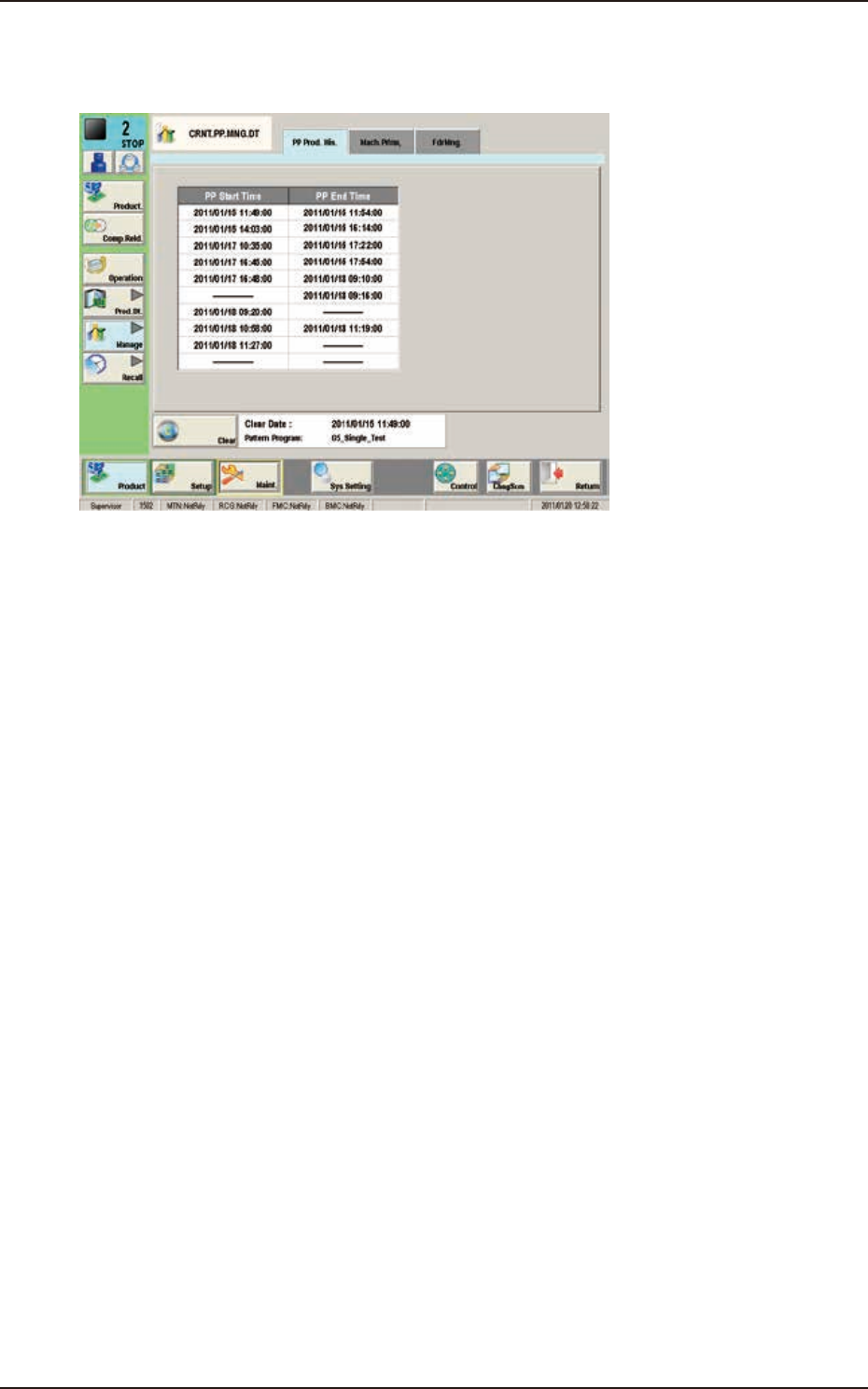

3.1 "PP Prod. His." Window

The PCB production start date and time, and end date and time are recorded.

F2D14

EUKYX

4-17199-2100

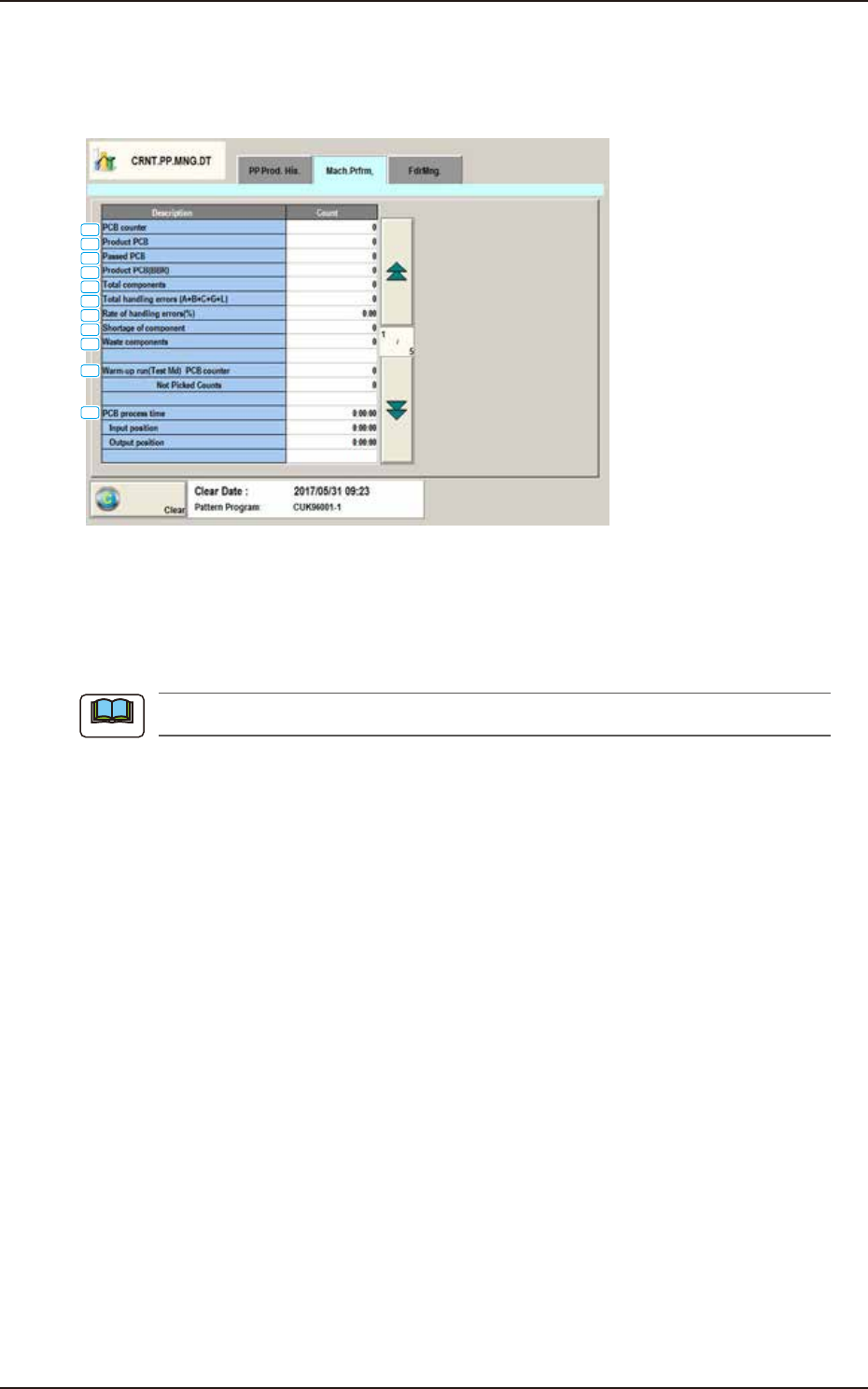

3.2 "Mach.Prfrm," Tab Sheet

When the "Mach.Prfrm," tab is pressed in the "Manage" window, the following tab sheet appears

inside the window.

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

F2D15A

[1] PCB counter

Shown is the number of produced PCBs.

Counting is implemented when the X/Y beam is zeroed after component placement operation (when

a PCB is finished).

When a particular pattern program is set several times for production, the sum total is computed.

[2] Product PCB

The number of produced unit PCBs on multi-unit PCB is summed up. Counting is implemented

when the X/Y beam is zeroed after component placement operation (when a unit is finished).

When the bad board reject (BBR) function is used, defective unit PCBs are excluded.

[3] Passed PCB

The number of passed PCBs is counted when the machine is set in the "PASS" mode.

Counting is implemented when the PCB transfer starts (when the PCB on the PCB positioning

section is transferred to the output conveyor).

[4] Product PCB (BBR)

Shown is the number of defective PCBs summed up when the bad board reject function (option) is

used.

[5] Total components

Shown is the number of picked components (the number of pickup operations).

[6] Total handling errors (A+B+C+G+L)

Shown is the total number of component handling errors.

[7] Rate of handling errors(%)

Shown is the percentage of handling errors per total number of picked components.

[8] Shortage of component

Shown is the total time of the detected “Component Shortage”.

Note
