EUKYX

1-60199-2100

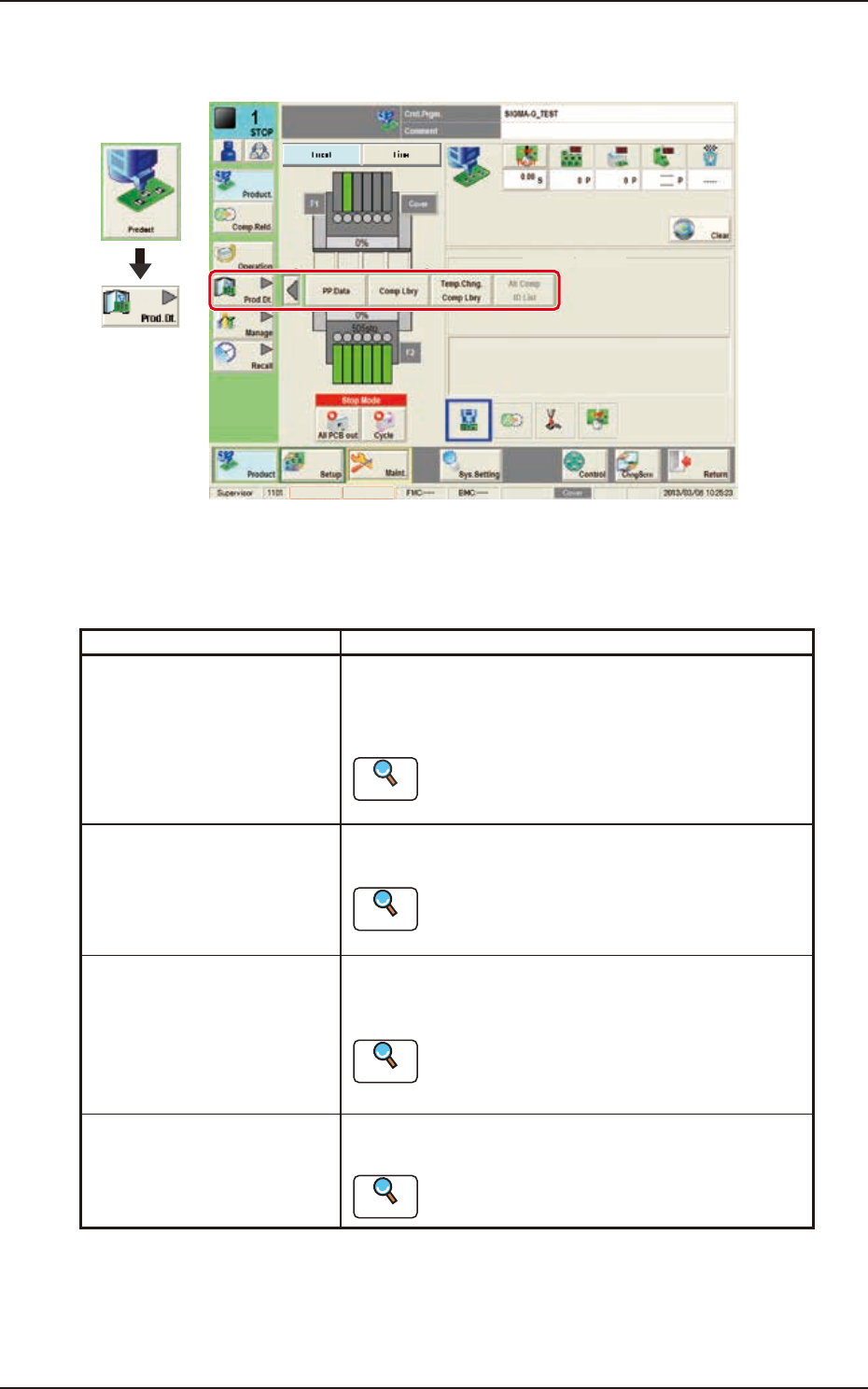

5. "Prod.Dt." Submenu

Graphic

Development

MTN:NotRdy RCG:NotRdy

F2A46

The "Prod.Dt." submenu is provided with the following three menu items. When each button is

pressed, the corresponding window appears.

Please fully understand the purposes of each data for better performance of the machine.

Buttons Description

PP.Da t a Pattern programs must be created for each PCB to be

produced.

The automatic operation of this machine is controlled by

these pattern programs.

Reference

Refer to “Chapter 2 Pattern Program” for details.

Comp Lbry This library stores data related to picks, recognition, and

placement of each individual component.

Reference

Refer to “Chapter 3 Component Library” or “Volume

6 : Component Library” for the details.

Temp.Chng.Comp Lbry The corresponding tab window enables the operator to

change the component library temporarily during the

automatic operation.

Reference

Refer to “2. “Temp Chng Comp Lib” Window” in

Chapter 3 or “Volume 6 : Component Library” for

the details.

Alt Comp ID List The corresponding window is used to setup the alternative

components in placed of the current components.

Reference

Refer to “3. “Alt Comp ID List” Window” in Chapter

3 for details.

EUKYX

1-61199-2100

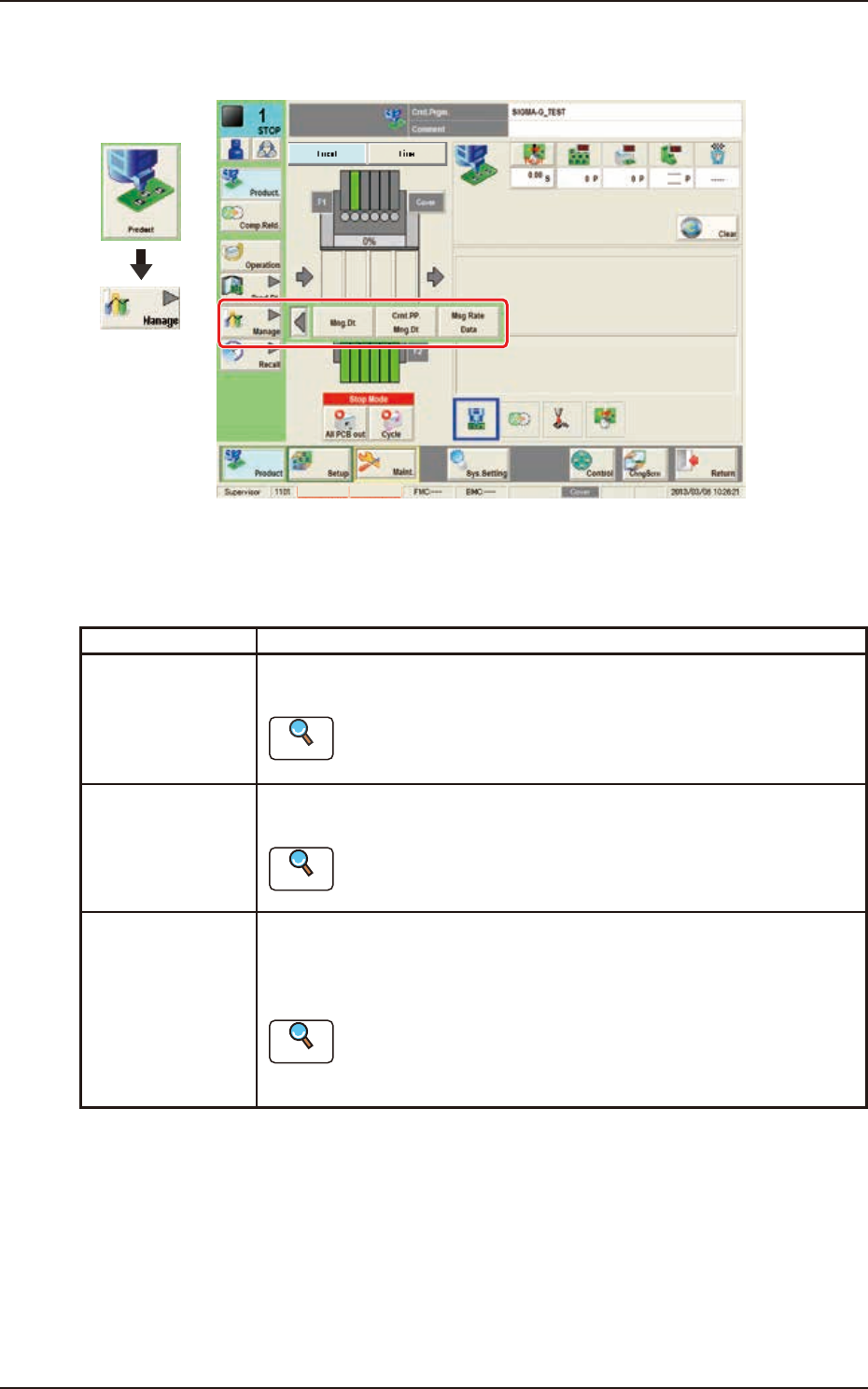

6. "Manage" Submenu

Graphic

Development

MTN:NotRdy RCG:NotRdy

F2A47

The "Manage" submenu is provided with the following three buttons.

When a button is pressed, the corresponding window opens, enabling the operator to select the

required data.

Buttons Description

Mng.Dt. When pressed, the "Management Data" window is displayed and operated for

totaling the management data for the whole system.

Reference

Refer to “2. “MNG.DT.” Window” in Chapter 4 for the details.

Crnt.PP.Mng.Dt When pressed, the "Crnt.PP.Mng.Dt" window is displayed and operated for

totaling the current pattern program management data for each pattern program.

Reference

Refer to”3. “CRNT.PP.MNG.DT” Window” in Chapter 4 for the details.

Msg Rate Data When pressed, the "Msg Rate Data" window is displayed and operation for

displaying the component handling error rate managed for each feeder or nozzle

based on each component handling error rate specified in the operation

parameter setting.

Reference

Refer to”4. “MESSAGE.RATE.DT” Window” in Chapter 4 for the

details.

EUKYX

1-62199-2100

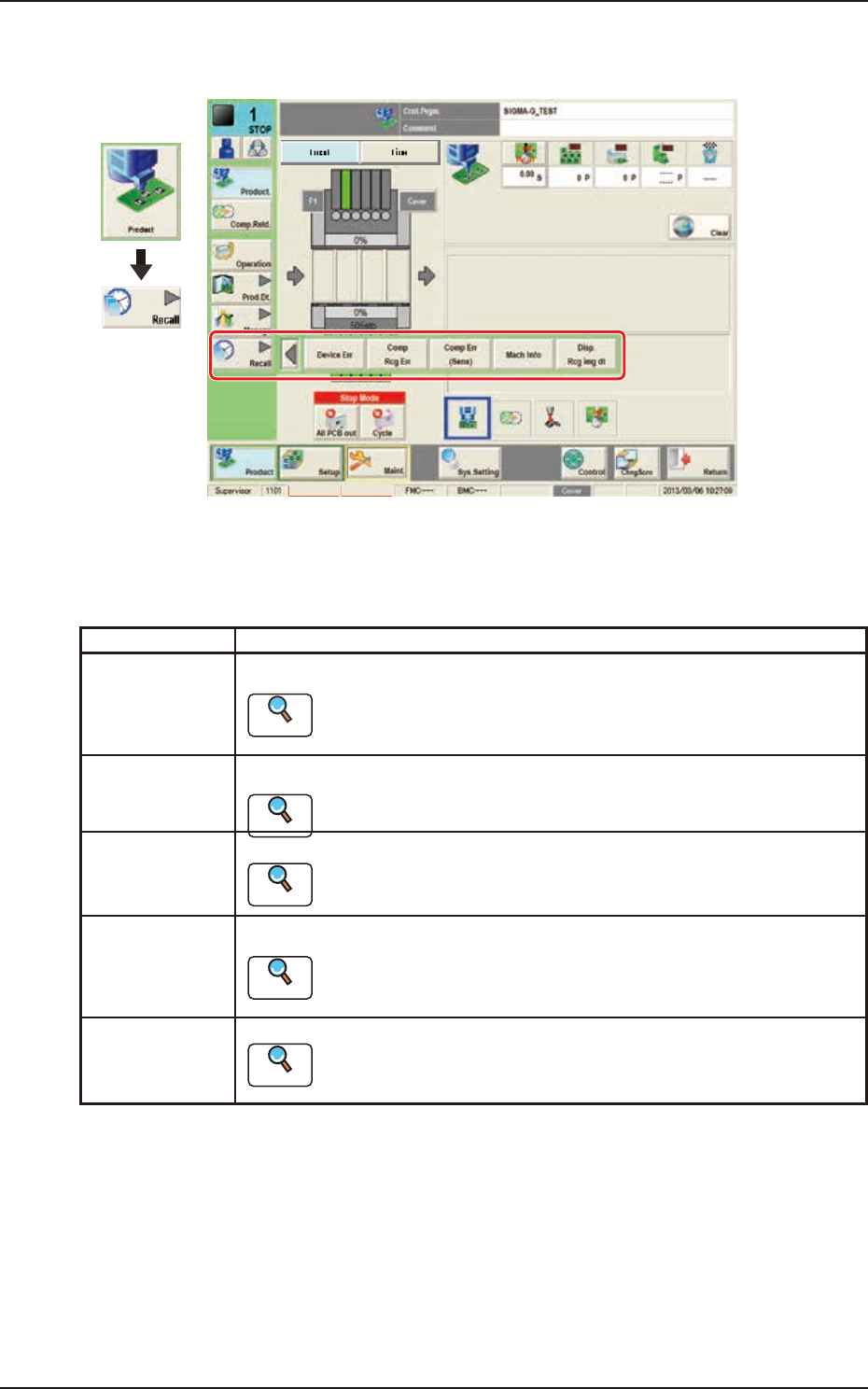

7. "Recall" Submenu

Graphic

Development

MTN:NotRdy RCG:NotRdy

F2A48

The "Recall" submenu is provided with the following five buttons.

When a button is pressed, the corresponding window opens, enabling the operator to select the

required data.

Buttons Description

Device Err When pressed, the device error history is displayed.

Reference

Refer to “2. “Device Err” Window” in Chapter 5 for the details.

Comp Rcg Err When pressed, the component recognition error history is displayed.

Reference

Refer to “3. “Comp Rcg Err” Window” in Chapter 5, for the details.

Comp Err(Sens) When pressed, the detected component posture error history is displayed.

Reference

Refer to “4. “Comp Err(Sens)” Window” in Chapter 5, for the details.

Mach Info When pressed, the machine information history is displayed.

Reference

Refer to “5. “Mach Info” Window” in Chapter 5, for the details.

Disp. Rcg img dt When pressed, the "Disp. Rcg Img Dt" window appears.

Reference

Refer to “6. “RECOG IMAGE” Window” in Chapter 5, for the details.
