EUKYX
2-29199-2100
3.3 Operation
(C04) Set-up Data
Graphic
Development
F2B24
(C04_01)
Conveyor

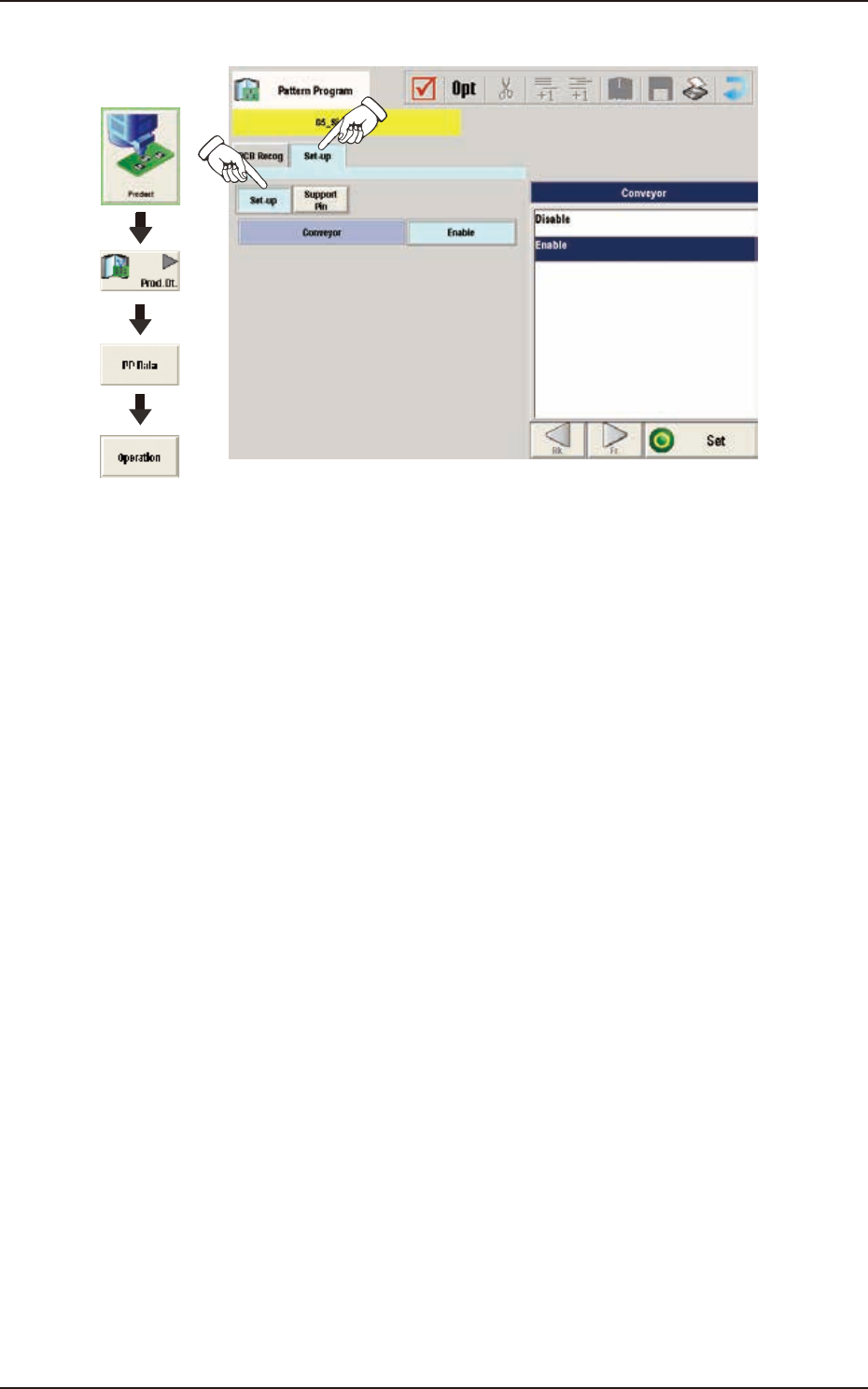

Using these buttons, whether or not the conveyor width is setup in the pattern program change
operation, is set.
EUKYX
2-30199-2100
3.3 Operation
(C05) Support Pin Data
Graphic
Development
F2B25
(C05_01)
Support Pin

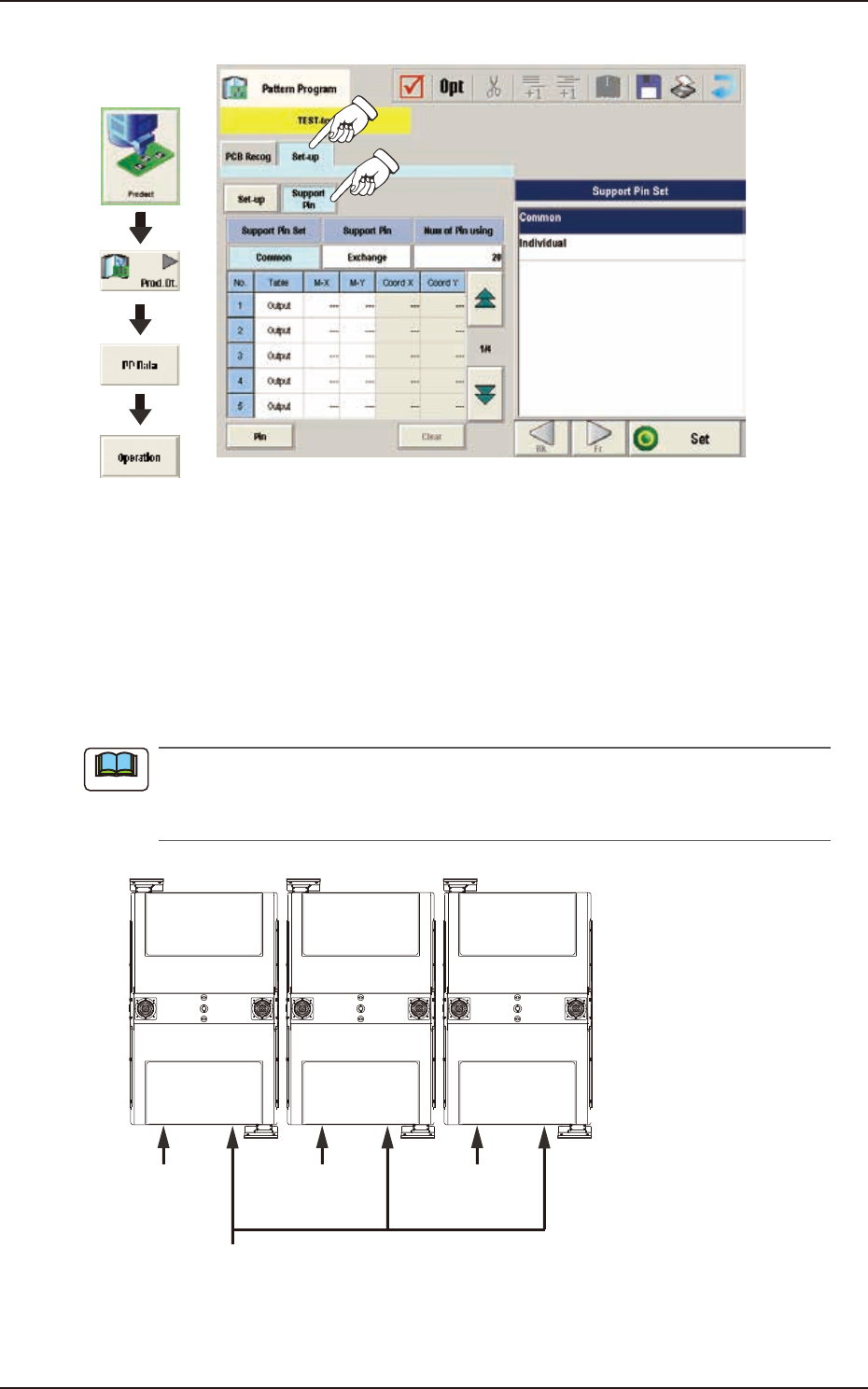

Using the selection buttons, select "Common" or "Individual" to set.
Common
When selected, it is set as the line common data.
Individual
When selected, it is set as the machine individual data.
When the line consists of two or more machines and the line common data is set up, the data
is shared by all the machines (SIGMA-G5II) in the line. However, when the machine individual
data is set up, each machine has its own individual data to be set.
Line Common Data
Machine Individual
Data
Machine Individual
Data
Machine Individual
Data
F2B26
Note
EUKYX
2-31199-2100
3.3 Operation
(C05_02)
Support Pin
Using this selection button, it is set whether or not the support pins are setup automatically in the
pattern program change operation.
(C05_03)
The number of Pin using
The number of pins to be used in the automatic operation is set in this selection box.
• Data Input Range: 1 to 20 pins
(C05_04)
Table
Using this selection box, it is set that the backup base where the support pins are placed, is in the
output or input.

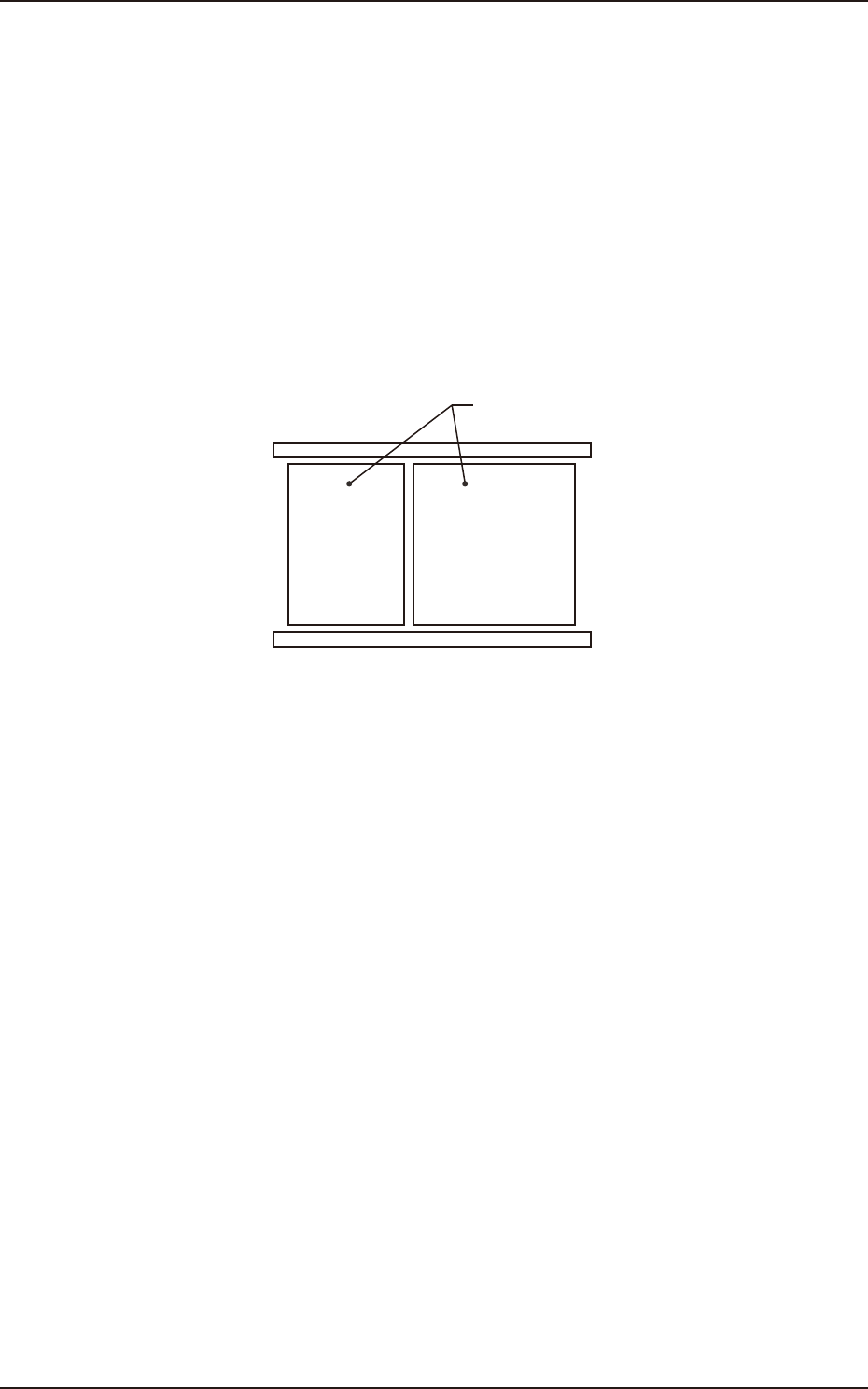

Input Output
Backup Base
F2B27
