EUKYX
2-33199-2100
3.4 Control
3.4 Control
(D01) Control Data

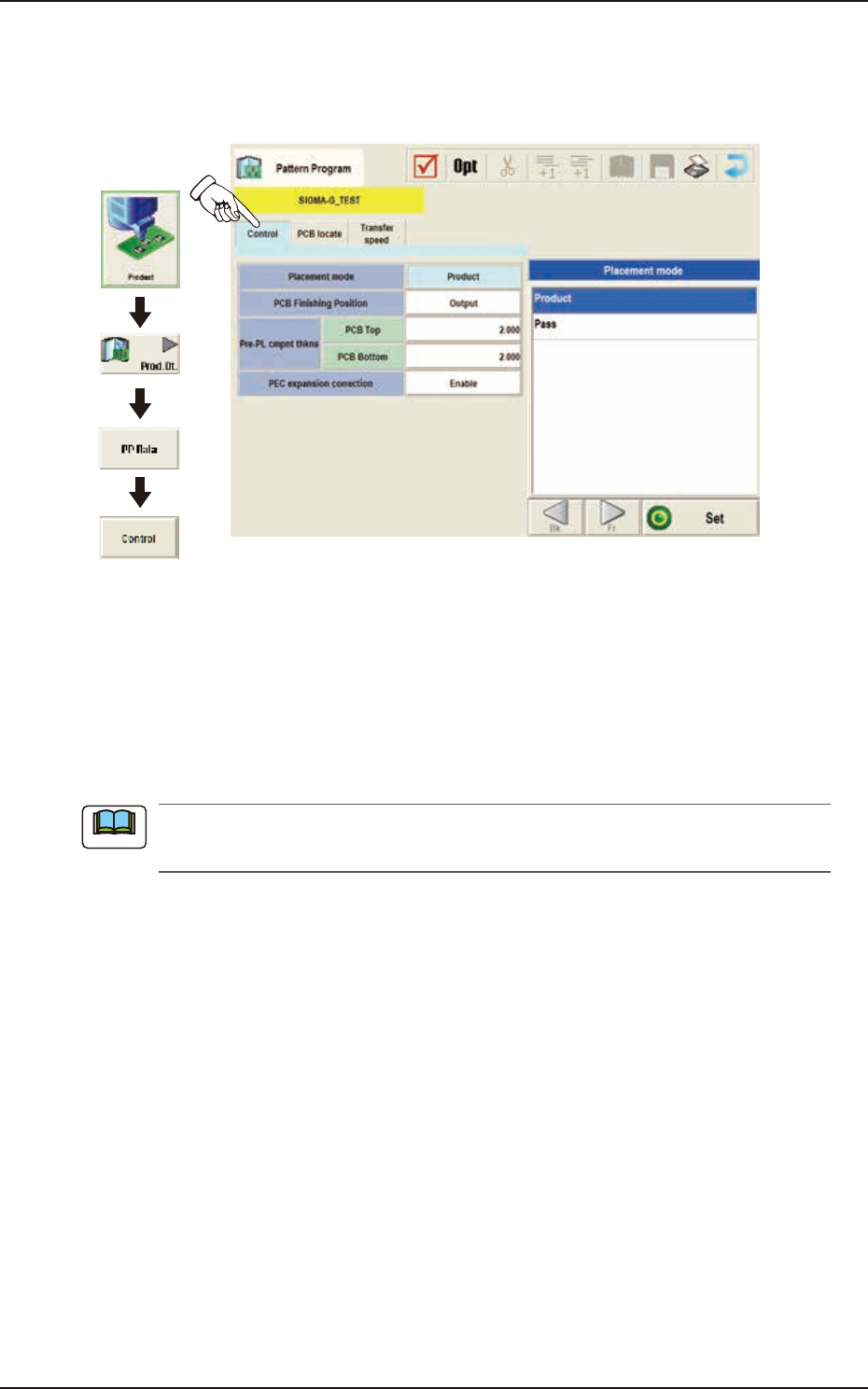

When the [Control] tab is pressed in the "Control" window, the following tab sheet appears.
Graphic
Development
F2B30
(D01_01)
Placement Mode
"Product" or "Pass" is selected for the placement mode in this pane.
Normally, "Product" is selected.
Product : When selected, the placement operation is performed.
Pass : When selected, the PCB is passed without placement.
When the pattern program set to "Pass" is setup on the Pattern Program Data on “Setup“
- “Prgm Chg.“ window, the vacuum pump is automatically turned OFF.
Note
EUKYX
2-34199-2100
3.4 Control
(D01_02)
PCB Finishing Position
The PCB Finishing Position is selected in this text box.
Output
The component placement is performed on the downstream side.
For the PCB with the size of 260 mm or more in the X-direction, the components are to be
placed in the downstream side.
Process Position
F2B31
Input
The component placement is performed on the upstream side.
Process Position
F2B32
Sequential
The component placement is performed on the upstream and downstream sides successively.
Process Position
F2B33
Note
EUKYX
2-35199-2100
3.4 Control
(D01_03)
Pre-PL cmpnt thkns
PCB Top [mm]
When some components are placed previously on a PCB by the input machine, etc., and transferred
to the main machine, be sure to enter the thickness of the tallest component of all in the text box.
Tallest Previously Placed Component
Set this thickness in the text box.
PCB
F2B34
• Data Input Range: 0 to 25.400
(a) When components are placed previously and the main machine is operated with "0.00"
in this text box, some of the previously placed components may interfere with
components to be placed newly.
(b) It is advisable that placement data should be created such that shorter components are
placed before the tallest one.
(c) When the specified thickness of a previously placed component differs from the actual
one, the light emitter of the Side View Camera may interfere with the previously placed
component.
2.0 mm
4.0 mm
2.0 mm
3.0 mm
2.0 mm
NL Origin Position NL Origin Position
Light
Emitter
Light
Emitter
Previously
Placed
Component
PCB
Placement Level
No Previously Placed Component Previously Placed Component
F2B35
Notice
