EUKYX
2-57199-2100
3.7 Placement
(G04) O-Data
When the [O-Data] button is pressed in the "Placement" window, the following tab sheet appears.
Graphic
Development
F2B53
(G04_01)
Ono.
Shown are the step Nos. of the placement data (O). These step Nos. are regarded as repetitive
pattern Nos. Parameters must be entered in each line (pattern).
O-No.1
O-No.2
O-No.3
O-No.4
Pattern 4
Pattern 2 Pattern 1
Pattern 3
F2B54
EUKYX
2-58199-2100
3.7 Placement

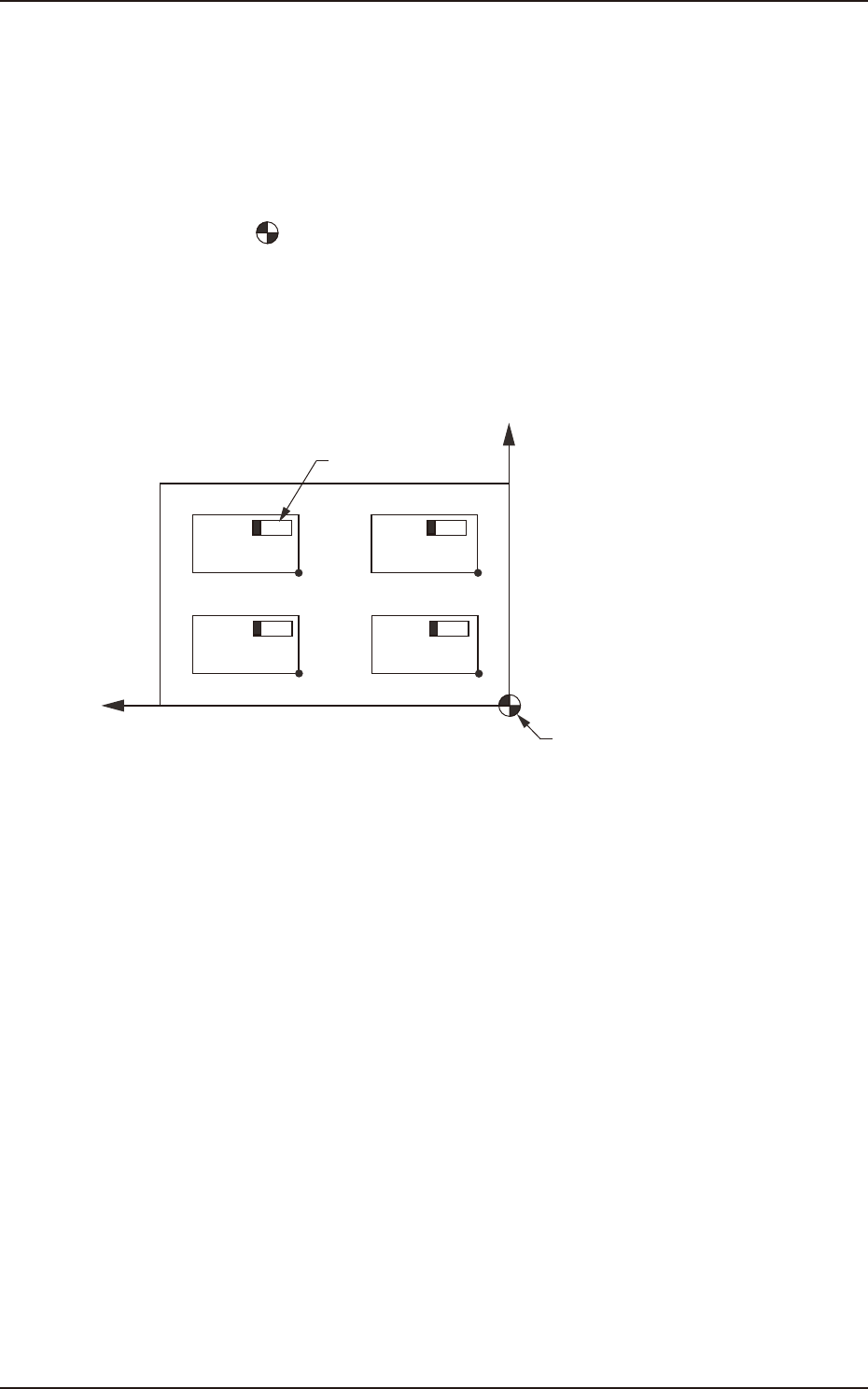

(G04_02)
X [mm] and Y [mm]
Set the coordinates of each pattern origin (O01 through On) based on the placement coordinate
reference (N0). A pattern origin refers to the reference coordinates of a repetitive pattern.
The pattern origins (coordinate reference of repetitive patterns) must be determined, regarding the
"Z=theta [deg]" data as "0°" (described in "G04_03") and located at corners on the same side as the
placement coordinate reference (N0).
N
0
: The center of is the placement coordinate reference.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4
O04
O03
O02
O01
X
Y
Placement Coordinate
Reference (No)
Component
Pattern 4 Pattern 3
Pattern 2 Pattern 1
F2B55
EUKYX
2-59199-2100
3.7 Placement

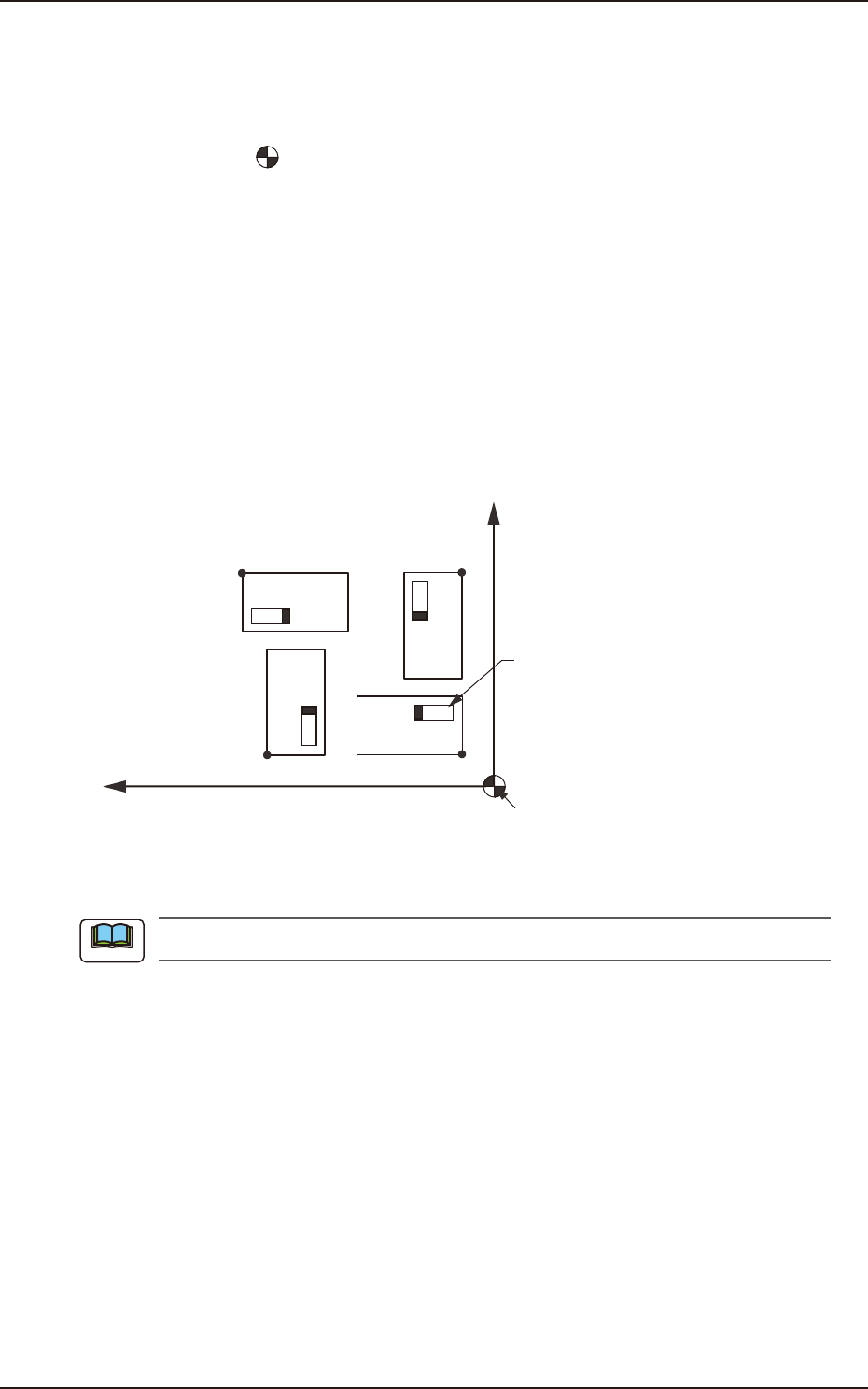

(G04_03)
Z=theta [deg]
Set an angle of each pattern. Keep the angle of the reference pattern as "0 deg".
In the figure below, "Pattern 1" is regarded as a reference one.
N
0
: The center of is the placement coordinate reference.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4
Pattern 1 : 0 deg
Pattern 2 : 90 deg
Pattern 3 : 180 deg
Pattern 4 : 270 deg
X
O
03
O02
O01
O04
Y
Placement Coordinate
Reference (No)
Component
Pattern 4
Pattern 3
Pattern 2
Pattern 1
F2B56
A numerical value must be entered in increments of 90 deg. Otherwise, an error will occur.
Note
