EUKYX 2-62 199-2100 3.8 HDLG/PL 3 . 8 H D LG / PL Graphic Development F2B58A The "HDL G /PL " dat a is cr eate d automatically by means of the optim ization pr ocessing . Note

EUKYX

2-61199-2100

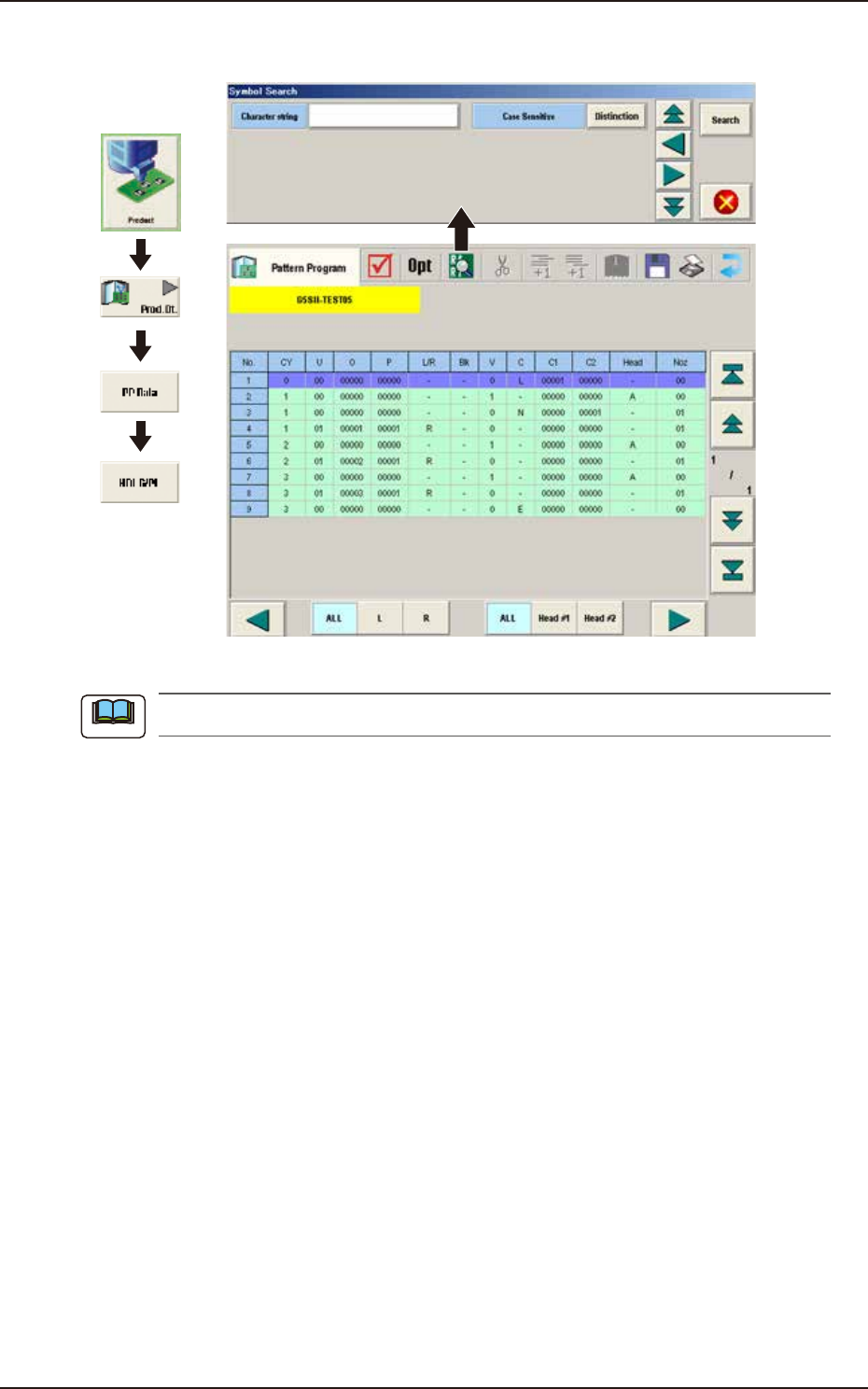

3.7 Placement

(G04_07)

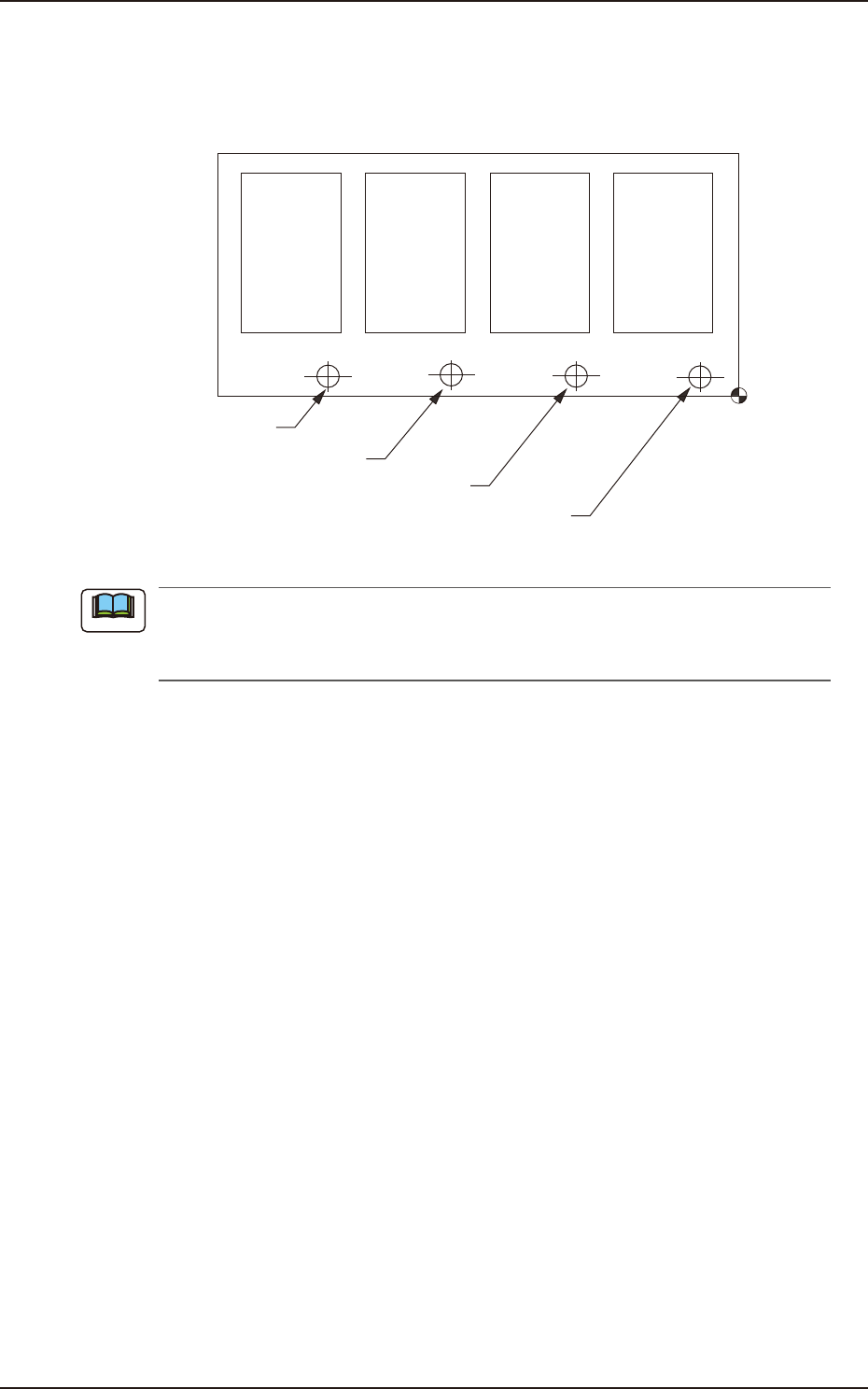

B-X, B-Y [mm]

When "Optional" is set in the "Unit PCB" text box, it is required to set the coordinates of each unit

PCB mark (each bad mark) based on the placement coordinate reference No. Unit: mm

Pattern 4 Pattern 3 Pattern 2 Pattern 1

(B-X

4, B-Y4) (B-X3, B-Y3) (B-X2, B-Y2) (B-X1, B-Y1)

Bad Mark of Pattern 4

Bad Mark of Pattern 3

Bad Mark of Pattern 2

Bad Mark of Pattern 1

Placement Coordinate

Reference (No.)

F2B57

(a) Do not set any coordinates in the text boxes of the last line (last step No.). Keep them as

"000.00".

(b) The function of bad board reject is optional.

Note

EUKYX

2-62199-2100

3.8 HDLG/PL

Graphic

Development

F2B58A

The "HDLG/PL" data is created automatically by means of the optimization processing.

Note

199-2100

Chapter 3

Component Library

This chapter describes the operation procedure in each of the

component library windows. Refer to the separate Instruction

Manual “Vol. 6. Component Library” for the component library

data description and creation procedure.

1. Selection of Component IDs

2. “Temp Chng Comp Lib” Window

3. “Alt Comp ID List”

Window
