EUKYX

3-6199-2100

1.2 Basic Operations in "Selection of component ID" Window

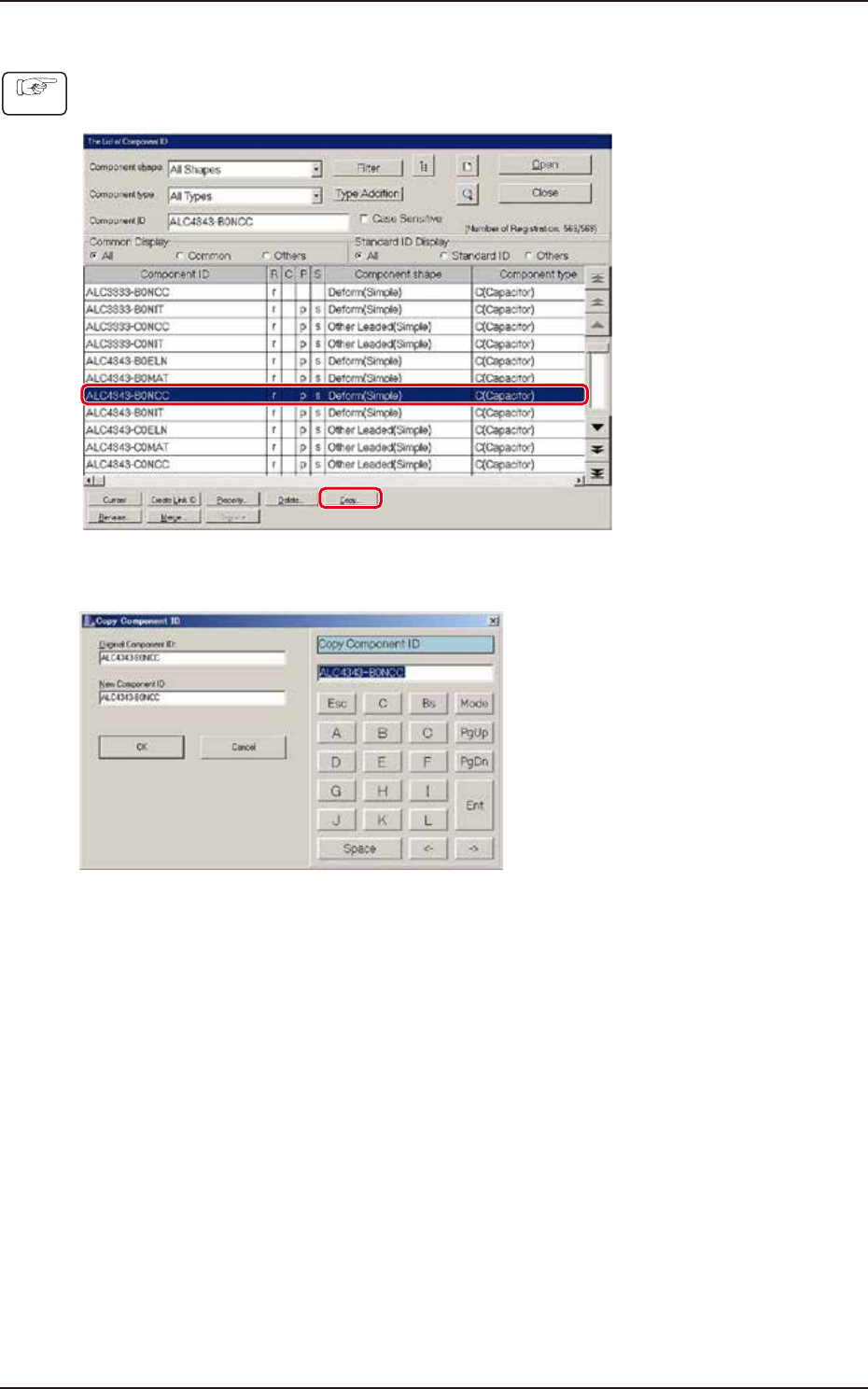

1.2.3 Copying the Component ID

(1) Select the component ID to be copied.

(The selected component ID turns blue, indicating that it is selected.)

F2C4

(2) Press the [Copy...] button. (The "Copy Component ID" dialog box opens.)

F2C5

(3) Enter a new component ID name in the "New Component ID" text box and press the [OK]

button. (A Component ID is created.)

Procedure

EUKYX

3-7199-2100

1.2 Basic Operations in "Selection of component ID" Window

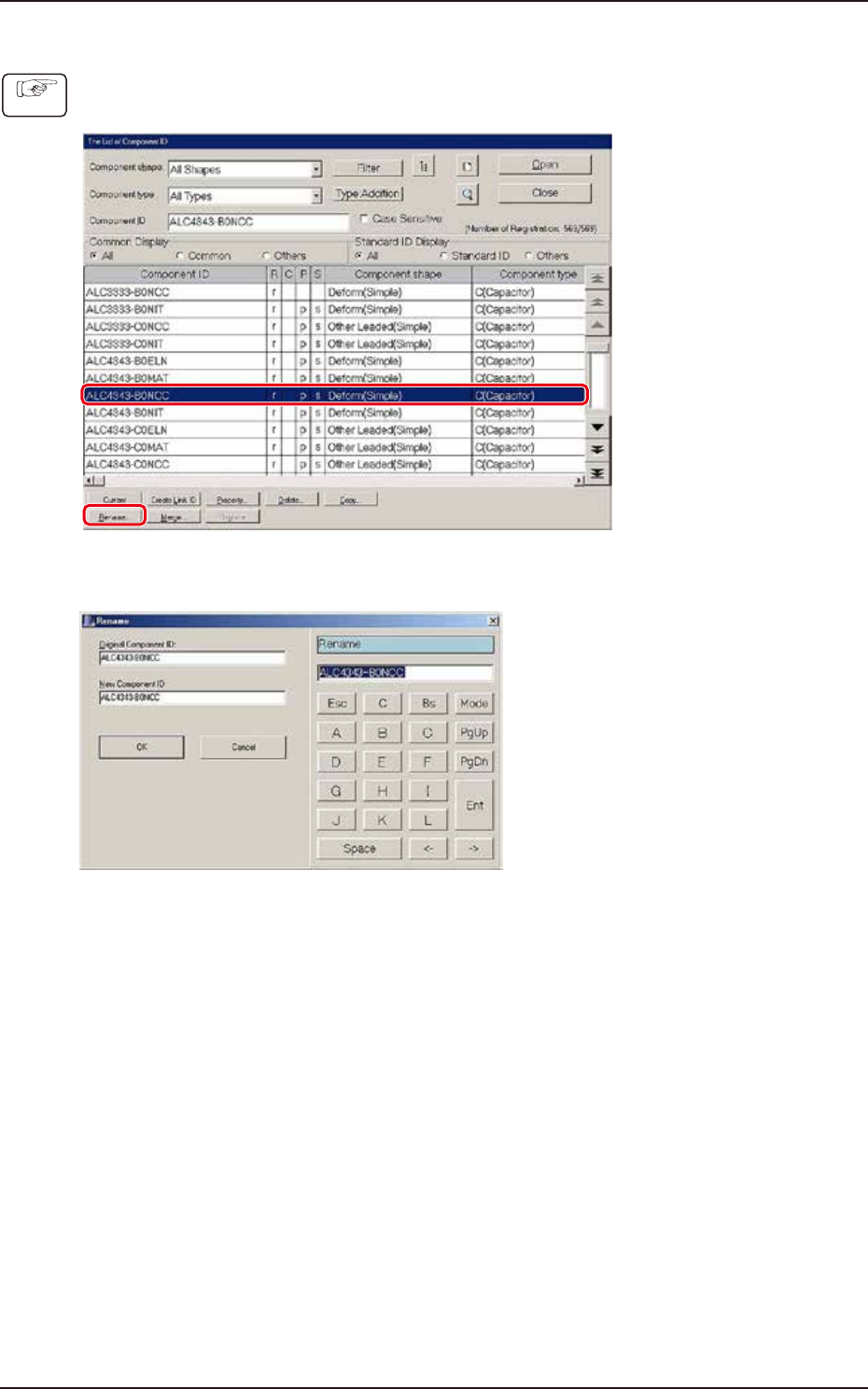

1.2.4 Renaming the Component ID

(1) Select the component ID to be renamed.

(The selected component ID turns blue, indicating that it is selected.)

F2C6

(2) Press the [Rename...] button. (The "Rename" dialog box opens.)

F2C7

(3) Enter a new component ID name in the "New Component ID" text box and press the [OK]

button. (The name of the original component ID is changed to the new one.)

Procedure

EUKYX

3-8199-2100

1.2 Basic Operations in "Selection of component ID" Window

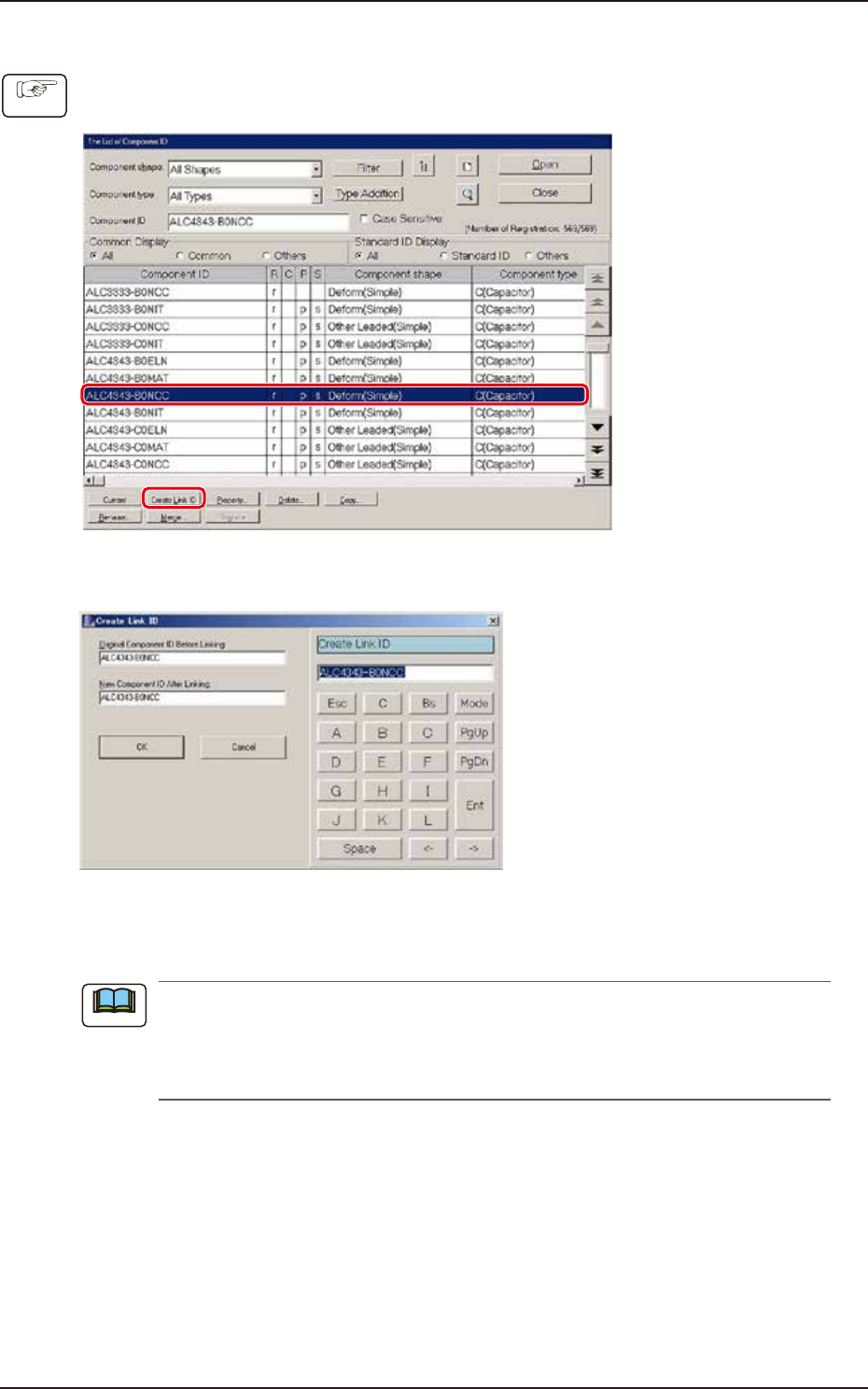

1.2.5 Creating the Link ID

(1) Select the component ID as an original component ID before linking.

(The selected component ID turns blue, indicating that it is selected.)

F2C8

(2) Press the [Create Link ID] button. (The "Create Link ID" dialog box opens.)

F2C9

(3) Enter a new link ID name in the "New Component ID After Linking" text box and press the

[OK] button. (A new link ID is created.)

Creating Link ID means giving a new name to the original component ID before linking while

keeping the data of the original component ID as it is.

For application, it can be used for a capacitor of the same shape as other one but of different

capacit y.

Procedure

Note
