3.3 "EdrMng." Tab Sheet
(a) The displayed tab sheet will look different, depending on which option is selected.
(b) Each item box functions as a button and each pressing of the buttons can list the data
parameters in descending order. The top box shows the largest value for error times.
Therefore, it is useful for the analysis to enhance the operation rate. When the [Feeder
No.] button is pressed, the Nos. are re-arranged in their initial order (Feeder Nos.).
The "EdrMng." tab sheet is divided further into several tabs and each tab sheet shows the handling
errors per feeder on each individual feeder bases.
When each tab is pressed, the corresponding tab sheet appears.
[1] Feeder No.
Shown are the feeder Nos.
[2] Component ID.
The set component ID is displayed in this data box.
[3] Total Comp
Each text box shows the total number of picked components (number of pickup actions) for each
individual feeders.
[4] Placement Comp.
The number of component placement operation total times for each feeder, is displayed in these
data box.
[5] Total Hdlg Errors
The number of pick-up error total times for each feeder is displayed in these data box.
[6] Rate of Hdlg Err (%)
The percentage of the pick-up error total times to the total pick-up operation times, is displayed in
this data box.
[7] Total Errors
Each text box shows the total number of errors detected in [5] through [13].
[8] Rate of Error [%]
Each text box shows the percentage of the total number of errors per the number of picked
components.
[9] A:Comp. Missing
Each text box shows the total number of missing components detected by the linear measure
detection sensor for each individual feeders.
[10] B:Comp. Missing
Each text box shows the total number of missing components detected through recognition
operation for each individual feeders.
[11] C:Comp. Vertical
Each text box shows the total number of vertical component errors detected by the linear measure
detection sensor for each individual feeders.
[12] D:Comp. Recog.
Each text box shows the total number of errors detected through recognition operation for each
individual feeders.
[13] E:Comp. Thick
Each text box shows the total number of errors in component thickness detected by the linear
measure detection sensor for each individual feeders.
Note

EUKYX
4-26199-2100
3.3 "EdrMng." Tab Sheet
[14] F:Pick-up Diff
Each text box shows the total number of pickup difference errors detected in the recognition
process for each individual feeders.
[15] G:Comp. Posture
Each text box shows the total number of reversed component and polarity judgment errors detected
in the recognition process for each individual feeders.
[16] H:Meas. Error
Each text box shows the total count for each feeder where a measurement error has occurred.
[17] K:Copla. Error
Each text box shows the total number of coplanarity errors detected in each individual feeder.
[18] L:obv/Reverse
The "judged front/rear error" times for each feeder, detected using the linear measure, is displayed
in these data boxes.
[19] Shrtg. of Comp.
Each text box shows the total number of component shortage errors detected for each individual
feeders.
[20] Type
Each text box shows the type of the attached tape.
[21] Width
Each text box shows the tape feeder width.
[22] [All], [A Lane] and [B Lane] Buttons
Each text box shows the update date & time for each individual feeder.

EUKYX
4-27199-2100

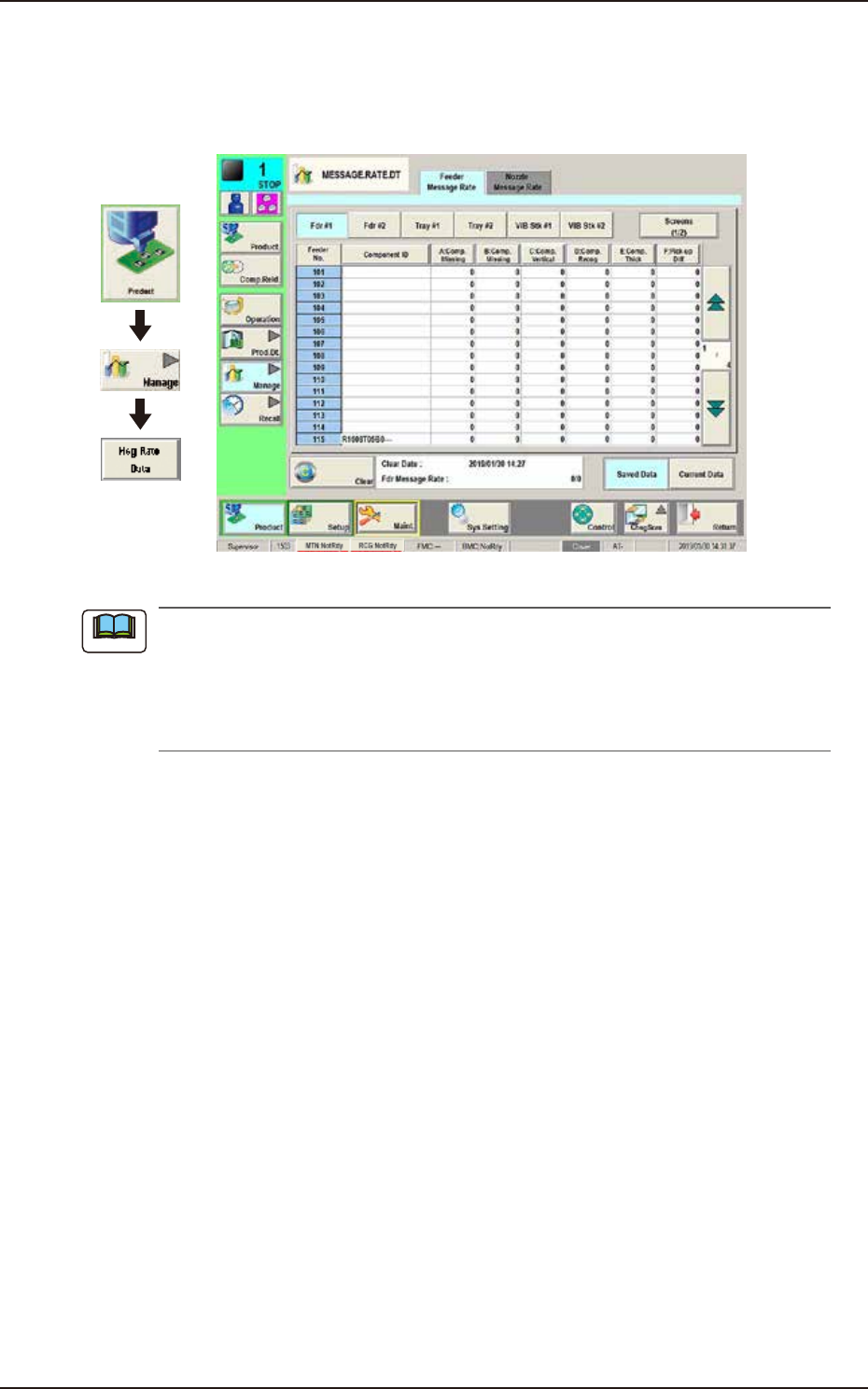

4. "MESSAGE.RATE.DT" Window
4. "MESSAGE.RATE.DT" Window
4.1 "Feeder Message Rate" Tab Sheet
Graphic
Development
F2D21
(a) The displayed tab sheet will look different, depending on which option is selected.
(b) Each item box functions as a button and each pressing of the buttons can list the data
parameters in descending order. The top box shows the largest value for error times.
Therefore, it is useful for the analysis to enhance the operation rate. When the [Feeder
No.] button is pressed, the Nos. are re-arranged in their initial order (Feeder Nos.).
The window to display the feeder pickup information per feeder base is divided.
Pressing the [Fdr #1] or [Fdr #2] button displays the relevant feeder base window.
Note
