EUKYX 4-28 199-2100 4.1 "Feeder Message Rate" T ab Sheet F2D22 [ 1 ] Feed er No. (Actual Fdr No.) Shown are the feeder Nos. [2] Compone nt ID Each te xt box shows the component IDs f or each i ndivi dua l feede…
EUKYX
4-27199-2100
4. "MESSAGE.RATE.DT" Window
4. "MESSAGE.RATE.DT" Window
4.1 "Feeder Message Rate" Tab Sheet
Graphic
Development
F2D21
(a) The displayed tab sheet will look different, depending on which option is selected.
(b) Each item box functions as a button and each pressing of the buttons can list the data
parameters in descending order. The top box shows the largest value for error times.
Therefore, it is useful for the analysis to enhance the operation rate. When the [Feeder
No.] button is pressed, the Nos. are re-arranged in their initial order (Feeder Nos.).
The window to display the feeder pickup information per feeder base is divided.
Pressing the [Fdr #1] or [Fdr #2] button displays the relevant feeder base window.
Note
EUKYX
4-28199-2100

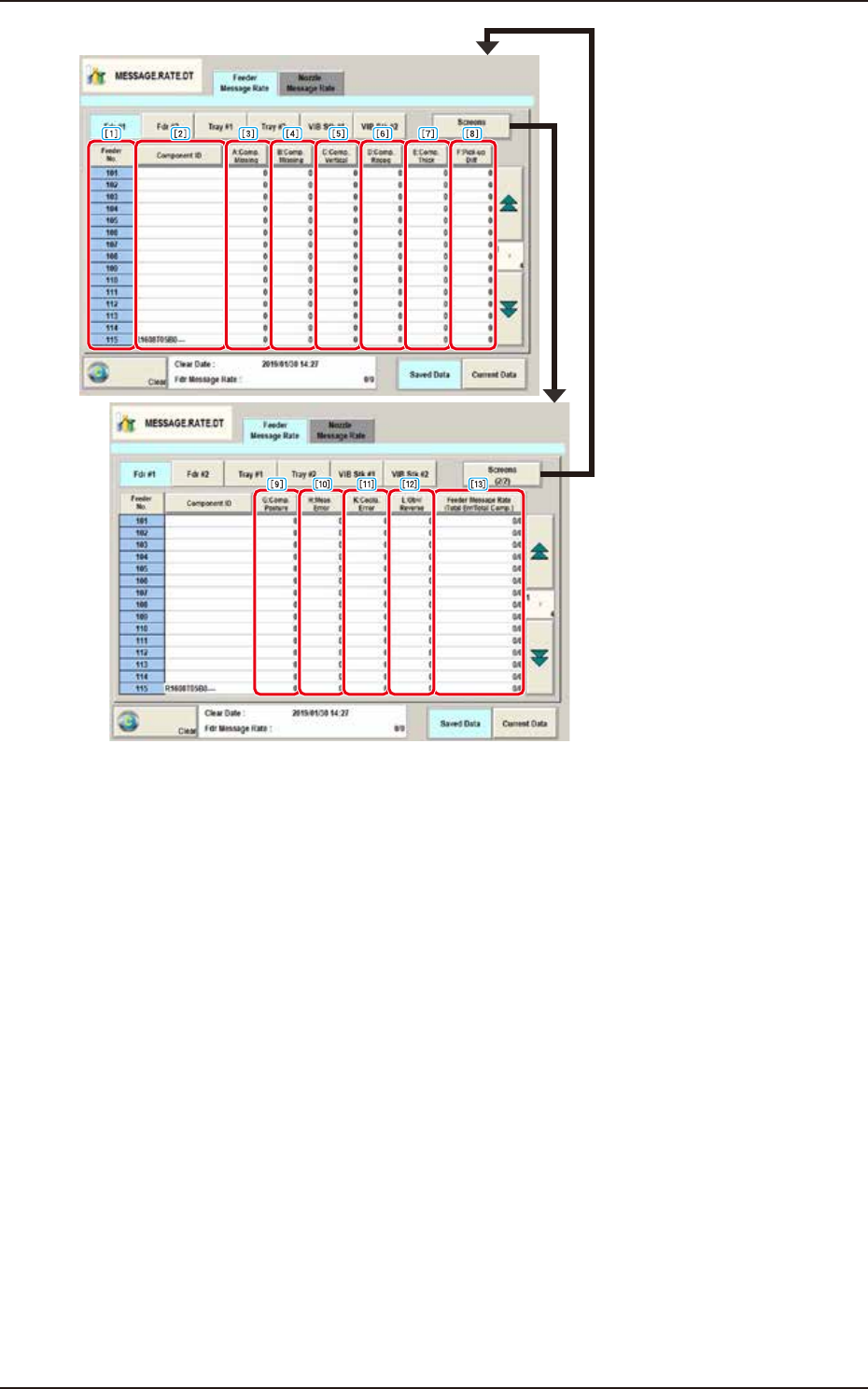

4.1 "Feeder Message Rate" Tab Sheet
F2D22
[1] Feeder No. (Actual Fdr No.)
Shown are the feeder Nos.
[2] Component ID
Each text box shows the component IDs for each individual feeders.
[3] A:Comp. Missing
Each text box shows the total number of missing components detected by the linear measure
detection sensor for each individual feeders.
[4] B:Comp. Missing
Each text box shows the total number of missing components detected through recognition
operation for each individual feeders.
[5] C:Comp. Vertical
Each text box shows the total number of vertical component errors detected by the linear measure
detection sensor for each individual feeders.
[6] D:Comp. Recog
Each text box shows the total number of errors detected through recognition operation for each
individual feeders.
EUKYX
4-29199-2100
4.1 "Feeder Message Rate" Tab Sheet
[7] E:Comp. Thick
Each text box shows the total number of errors in component thickness detected by the linear
measure detection sensor for each individual feeders.
[8] F:Pick-up Diff
Each text box shows the total number of pickup difference errors detected in the recognition
process for each individual feeders.
[9] G:Comp. Posture
Each text box shows the total number of reversed component and polarity judgment errors detected
in the recognition process for each individual feeders.
[10] H:Meas. Error
The No. of measurement error total times for each feeder is displayed in this data box.
[11] K:Copla. Error
Each text box shows the total count of the "Copla. Error" detection in each feeder.
[12] L:Obv/Reverse
The "judged front/rear error" times for each feeder, detected using the linear measure, is displayed
in these data boxes.
[13] Feeder Message Rate
(Total Err / Total Comp.)
Each text box shows the rate of pickup errors (the number of pickup errors per number of picked
component) for each feeder.
