EUKYX
5-3199-2100
3. "Comp Rcg Err" Window
3. "Comp Rcg Err" Window
When the [Comp Rcg Err] button is pressed, the "Comp Rcg Err" window appears.
[2]
[3]
[1]
Graphic
Development
F2E3
[1] Detailed Display
Up to 500 logs of component recognition errors will be displayed.
When the number of logs exceeds "500", the old logs are deleted in the sequential order. That is,
the logs are updated.
[2] [Clear] Button
When pressed, this button deletes the error logs.
[3] [Back] and [Next] Buttons
When the [Next] button is pressed, the next page opens. Pressing the [Back] button opens the
previous page.
EUKYX
5-4199-2100
4. "Comp Err(Sens)" Window
4. "Comp Err(Sens)" Window
When the [Comp Err(Sens)] button is pressed, the "Comp Err(Sens)" window appears.
[2]
[3]
[1]
Graphic
Development
F2E4
[1] Detailed Display
Up to 500 logs of linear measure detection errors will be displayed.
When the number of logs exceeds "500", the old logs are deleted in the sequential order. That is,
the logs are updated.
[2] [Clear] Button
When pressed, this button deletes the error logs.
[3] [Back] and [Next] Buttons
When the [Next] button is pressed, the next page opens. Pressing the [Back] button opens the
previous page.
EUKYX
5-5199-2100

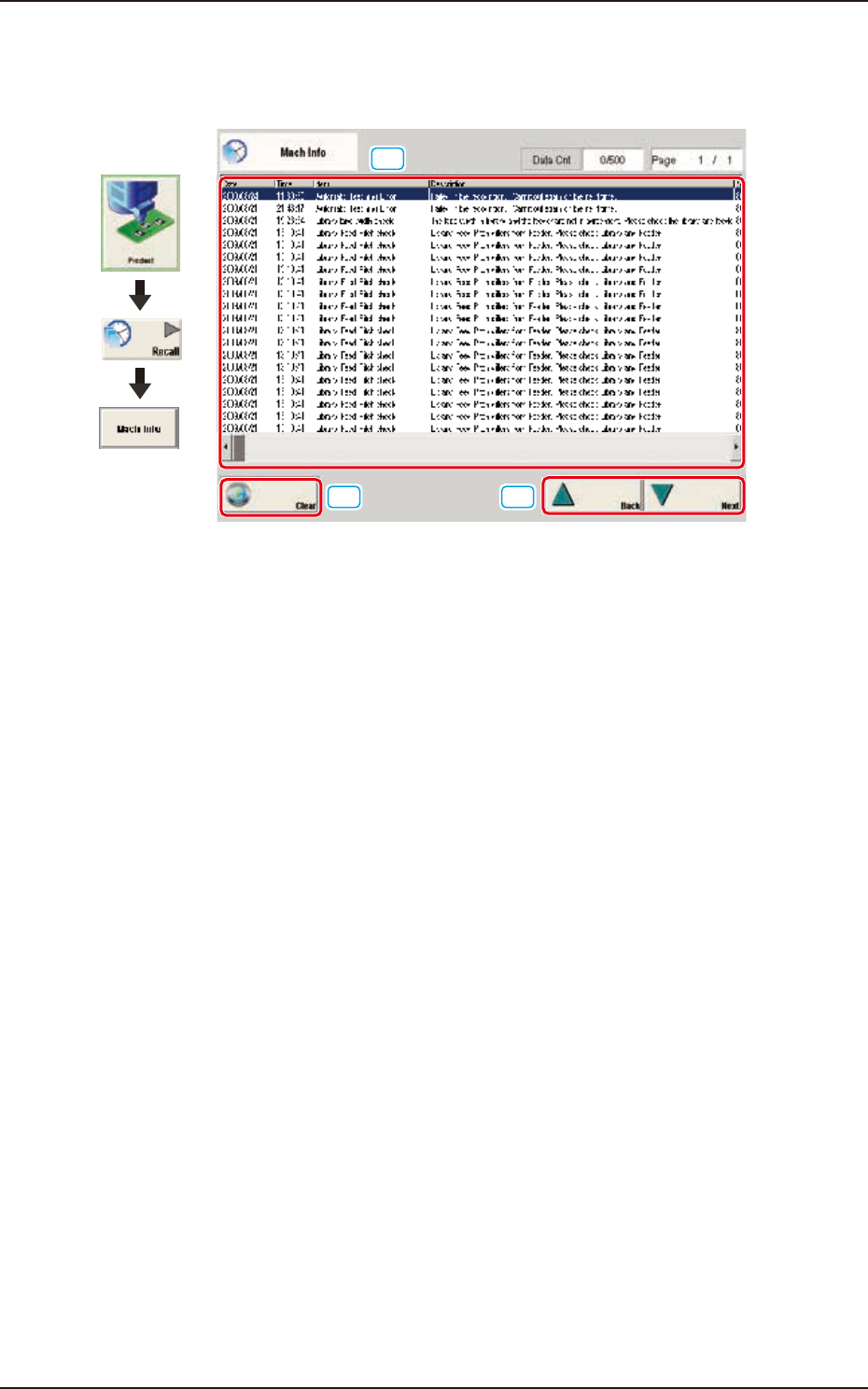

5. "Mach Info" Window
5. "Mach Info" Window
When the [Mach Info] button is pressed, the "Mach Info" window appears.
[2]
[3]
[1]
Graphic
Development
F2E5
[1] Detailed Display
Up to 5000 logs of the machine information will be displayed.
When the number of logs exceeds "5000", the old logs are deleted in the sequential order. That is,
the logs are updated.
[2] [Clear] Button
When pressed, this button deletes the error logs.
[3] [Back] and [Next] Buttons
When the [Next] button is pressed, the next page opens. Pressing the [Back] button opens the
previous page.
