EUKYX
5-7199-2100
6. "RECOG IMAGE" Window
[4] Recognized Image Display Section
The saved recognized image data items are displayed in the four panes and the images are
displayed in order from the new one (Upper Left, Upper Right, Lower Left and Lower Right
in this order). When the recognized image to be checked is selected, the recognized image
window appears.
Refer to “6.2 “RECOG IMAGE” Confirmation Window” for the details of the "Recog Image
Window".

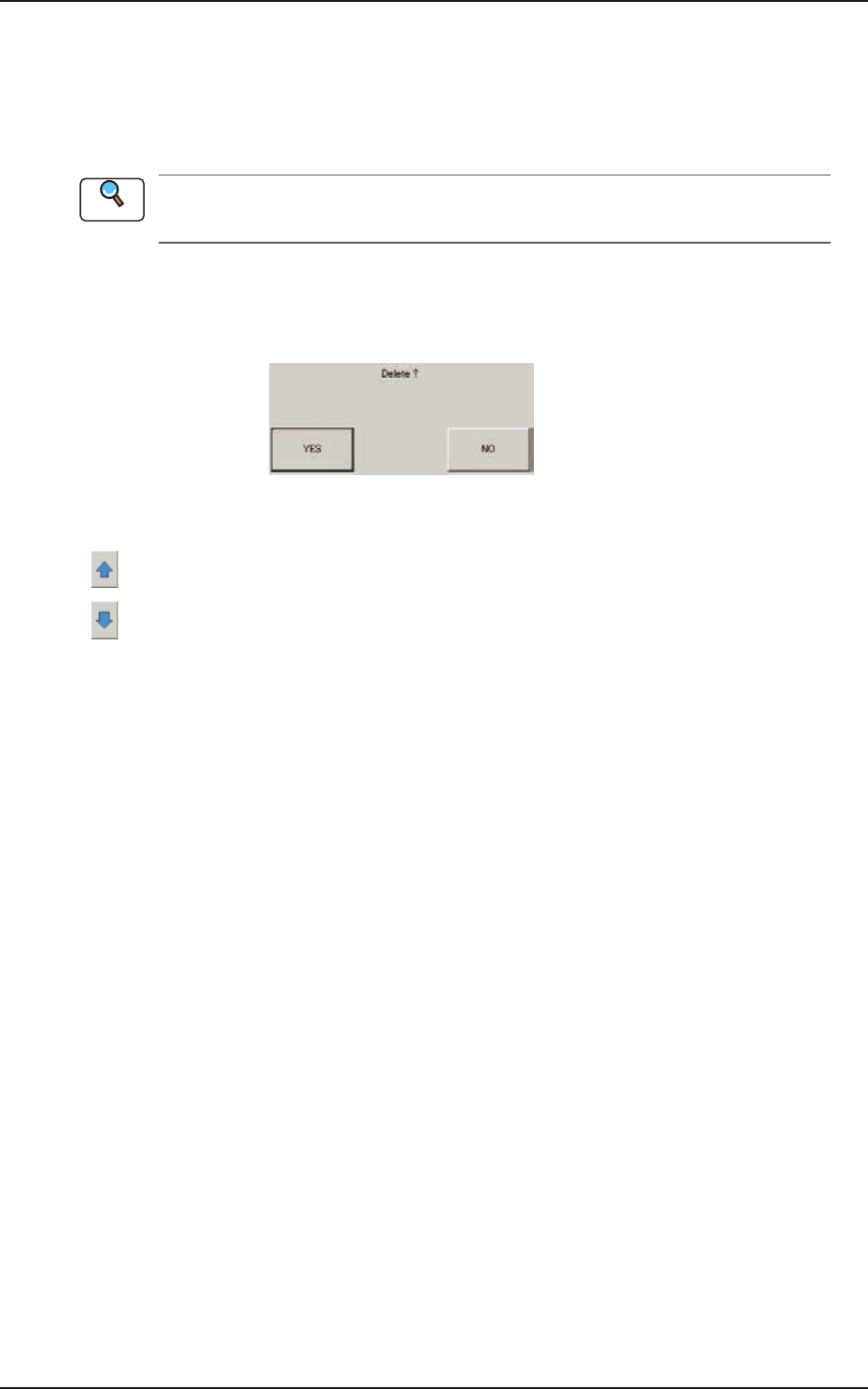

[Delete] Button
When the [Delete] button for the recognized image to be deleted, is pressed, the deletion
confirmation window appears.
F2E7
[5] Page Change Button
[
] : When pressed, the previous page appears.
[
] : When pressed, the next page appears.
Reference
EUKYX
5-8199-2100
6.1 Recog Image List

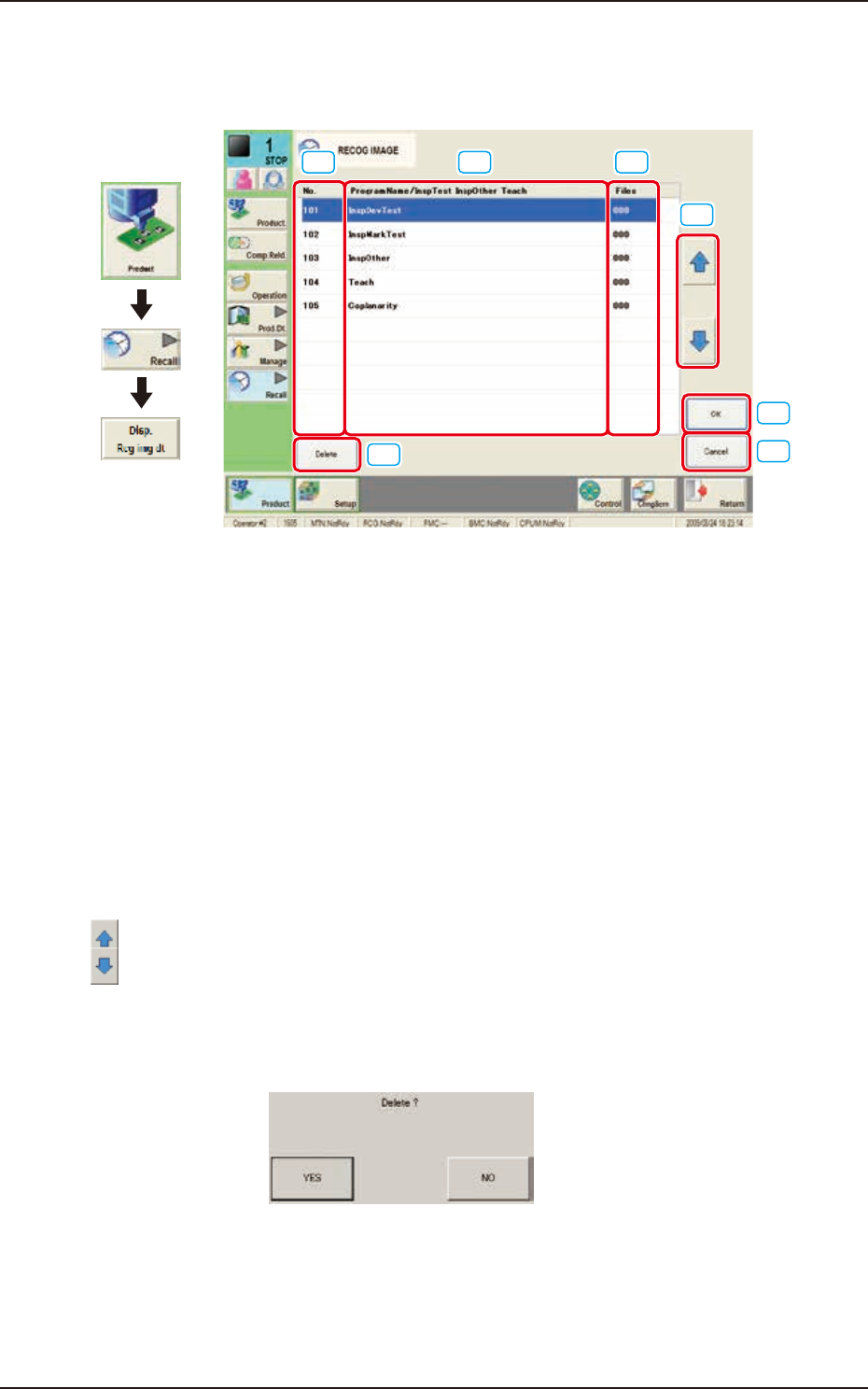

6.1 Recog Image List
When the [SelectProgram/] button is pressed on the "RECOG IMAGE" window, the following
window appears.
[1] [2] [3]
[4]
[5]
[6]
[7]
Graphic
Development
F2E8
[1] No.
Shown are the saved recognized image Nos.
1 to 100
: The recognized images for the Component Recognition or PEC Recognition for each
pattern program are saved.
101 : The recognized images obtained in the Component Recognition Test are saved.
102 : The recognized images obtained in the PEC Recognition Test are saved.
103 : Other recognized images are saved.
104 : The recognized images obtained in the teaching results are saved.
[2] ProgramName/InspTest InspOther Teach
Shown are the pattern program names, items, etc.
[3] Files
Shown is the number of recognition images saved in "[1] No." pane.
[4] Page Change Button
[
] : When pressed, the previous page appears.
[
] : When pressed, the next page appears.
[5] [Delete] Button
When this button is pressed, the recognized image is deleted.
When the No. for the recognized image to be deleted is selected and the [Delete] button is pressed,
the deletion confirmation window appears.
F2E9
[6] [OK] Button
When this button is pressed, the window returns to the “RECOG IMAGE” window and the
recognized image with the selected No. is displayed.
[7] [CANCEL] Button
When this button is pressed, the window returns to the “RECOG IMAGE” window.
EUKYX
5-9199-2100
6.2 "RECOG IMAGE" Confirmation Window

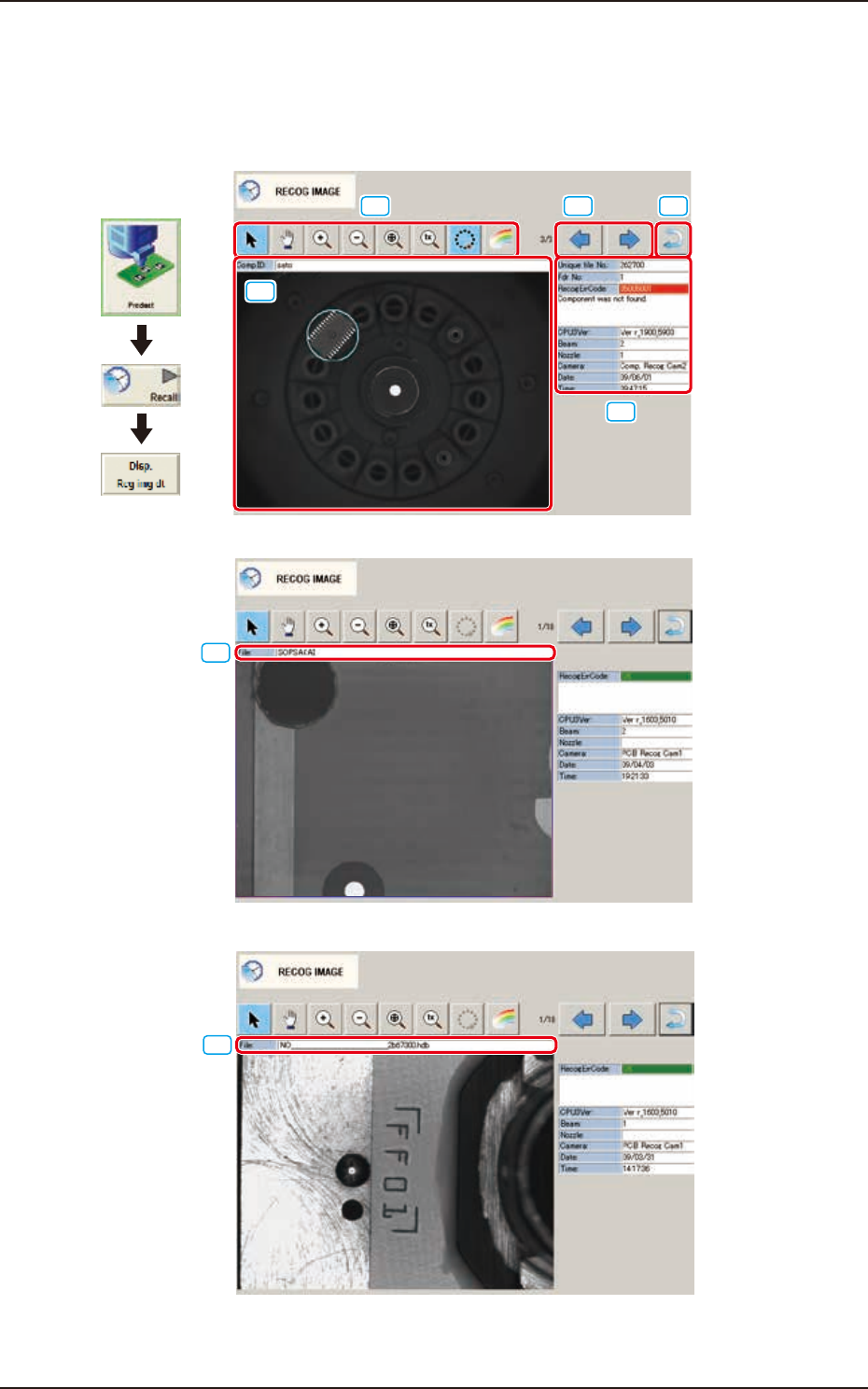

6.2 "RECOG IMAGE" Confirmation Window
When the recognized image displayed in the "RECOG IMAGE" window is selected, the following
window appears.
[1]
[2]
[3] [4]
[5]
[2]
[6]
[6]
[6]
[7]
■ Component recognition
■ PCB recognition
■ Nozzle ID recognition
Graphic
Development
F2E10
