EUKYX

6-13199-2100

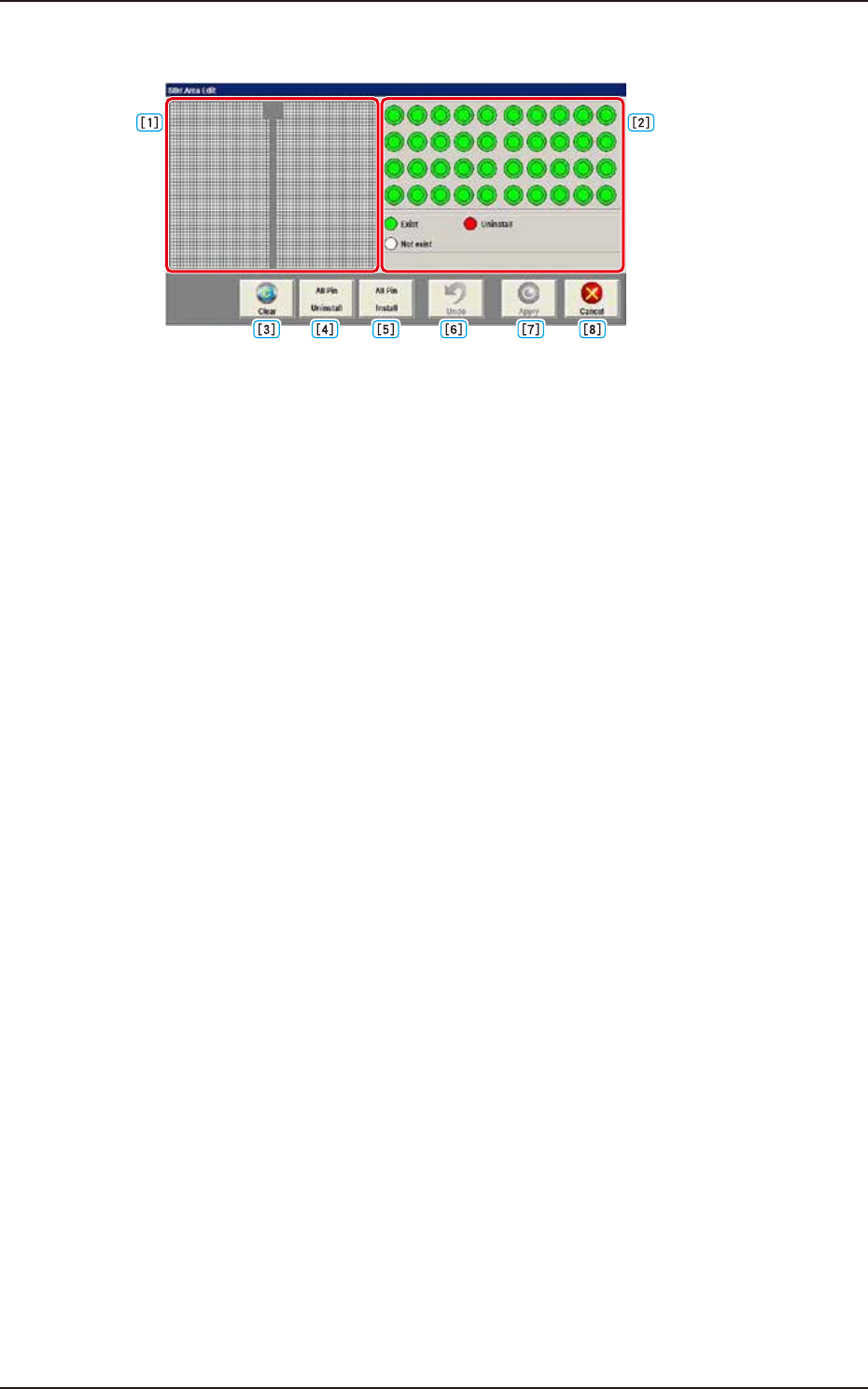

4.2 "Stkr.Area Edit" Window

F2F15

[1] PCB Support Pin Position Display Pane

The backup base is displayed as an image in this pane.

The arrangement condition of the PCB support pins is displayed.

[2] Stock Area Image Display Pane

The stock area for the PCB support pins is displayed as an image.

When any pin is clicked, "pin presence" and "pin absence" is toggled for the corresponding pin.

Green : Exist

Red : Uninstall

White : Not exist (If pins are arranged on the backup base, it is regarded as “No exist“.)

[3] [Clear] Button

When pressed, the arrangement parameters for the PCB support pins arranged on the backup base,

is cleared.

[4] [All Pin Uninstall] Button

When pressed, the arrangement parameters for all the support pins for the stock area, is changed to

ones for “pin absence”.

[5] [All Pin Install] Button

When this button is pressed, the stock area arrangement data is changed to one for all pins

placement.

[6] [Undo] Button

When pressed, the parameters are returned to the original ones before the change is applied.

[7] [Apply] Button

When pressed, the changed arrangement parameters in the stock area are applied.

[8] [Cancel] Button

When pressed, the editing operation is ended.

Any arrangement parameter that has not been applied is cancelled.

EUKYX

6-14199-2100

4.2 "Stkr.Area Edit" Window

4.2.1 Stocker Area Edit Procedure

This section is described based on the front reference and PCB ﬂow direction from left to right.

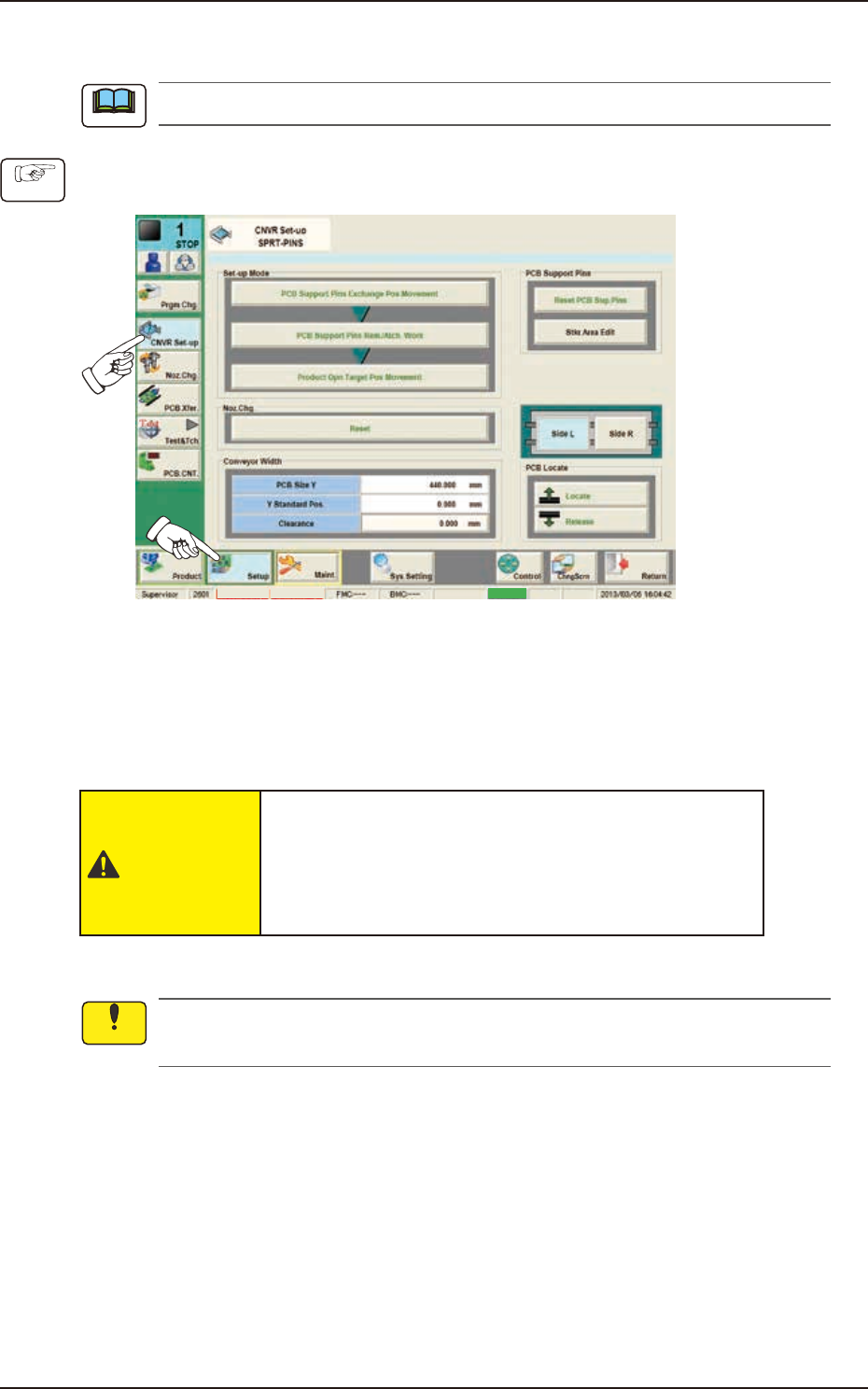

(1) Press the [Setup] button and [CNVR Set-up] button to display the “CNVR Set-up SPRT-PINS“

window.

MTN:NotRdy RCG:NotRdy Cover

F2F16

(2) Press the [PCB Support Pins Exchange Pos. Movement] button and within 10 seconds, press

the [START] button on the operation panel.

(The head will retract and the conveyor width becomes the maximum one.)

(3) Press the “cover” to unlock the cover.

(4) Open the covers.

CAUTION

The load power to the motors, etc., is turned

OFF but the setup operation must be performed

carefully when you put your hand inside the

machine. Avoid hand and nger injuries.

(5) Insert the PCB support pins directly into each hole in the stock area on the backup base.

Do not put your hand or any heavy object on the backup base while working on the backup

base. Otherwise, the backup base may be deformed due to an excessive load.

(6) Make sure that no PCB support pins are left on the backup base.

(Make sure that no components or debris drop into any of the backup base holes).

(7) Close the covers.

Note

Procedure

Notice

EUKYX

6-15199-2100

4.2 "Stkr.Area Edit" Window

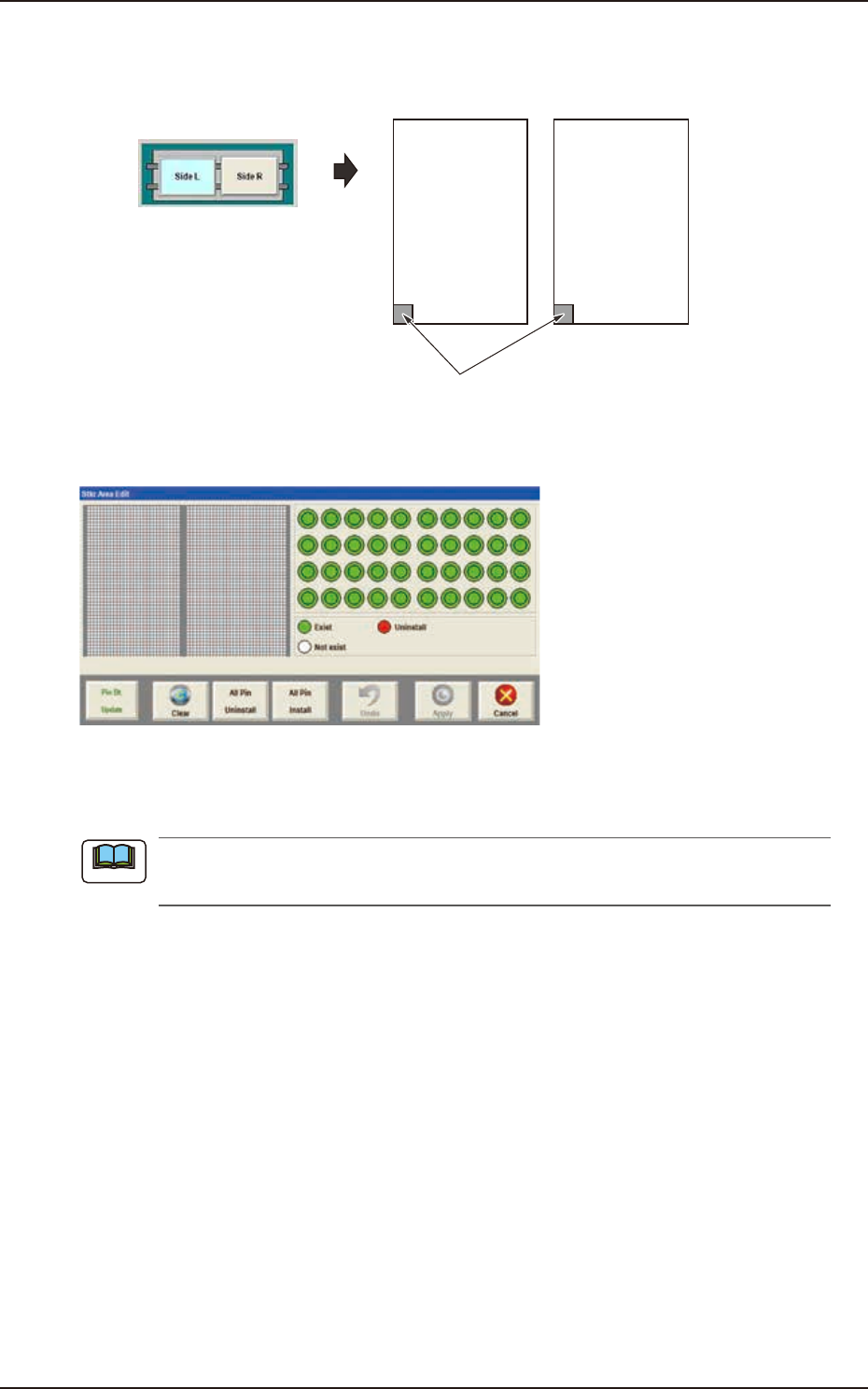

(8) Using the PCB positioning select button, select the stock area for which the parameters are

edited.

Side L Side R

Stkr.Area

PCB positioning select button

F2F17

(9) Press the [Stkr Area Edit] button to display the following window.

F2F1

(10) Edit the parameters in the stock area image display section so that the setup condition is

the same as that for the support pins in the stock area.

When the setup operation is stopped due to an error, press the [Clear] button to clear the

arrangement data for the PCB support pins on the backup base.

Note
