EUKYX

6-21199-2100

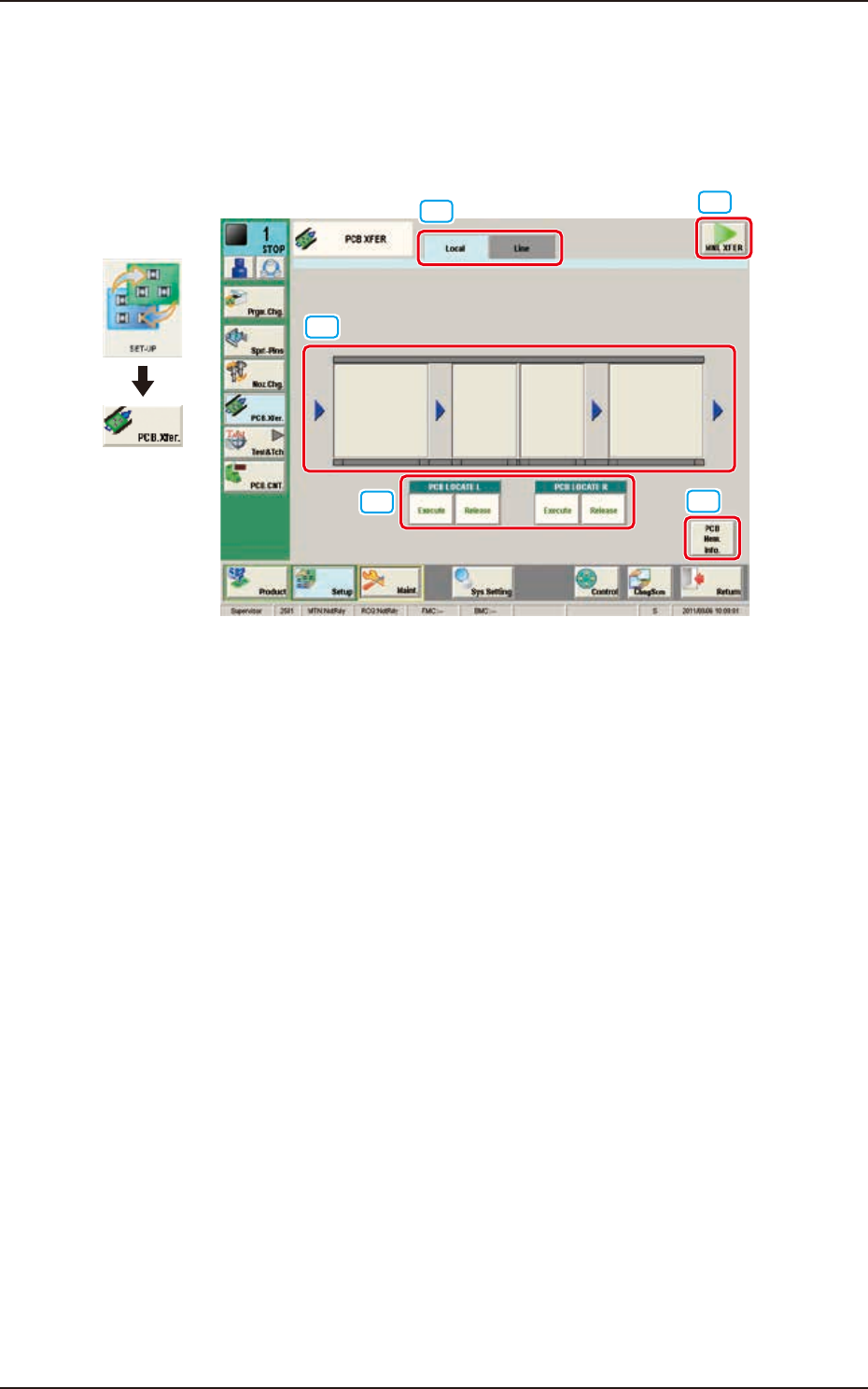

6. "PCB XFER" Window

6.1 "Local" Tab Sheet

Using this function, the PCB on each block on the conveyor can be moved to the next block.

[3]

[4]

[1]

[2]

[5]

Graphic

Development

F2F28

[1] “Local/Line” Switch tab

This button switches the "Local" tab sheet and "Line" tab sheet.

[2] [MNL XFER] Button

When pressed, the PCB positioning is performed manually.

[3] Conveyor Image Display Section

Each block in the graphic image of the conveyor is provided with a button function. When the

[START] button on the operation panel is pressed within 10 seconds after pressing a conveyor block

button, the PCB is transferred to the block position.

[4] PCB LOCATE (PCB LOCATE L, R)

The PCB locating operation is performed.

When the [START] button on the operation panel is pressed within 10 seconds after pressing the

[Execute] button, the backup base of the selected stage moves up and the PCB is positioned.

When the [START] button on the operation panel is pressed within 10 seconds after pressing the

[Release] button, the backup base moves down and the PCB positioning is released.

EUKYX

6-22199-2100

6.1 "Local" Tab Sheet

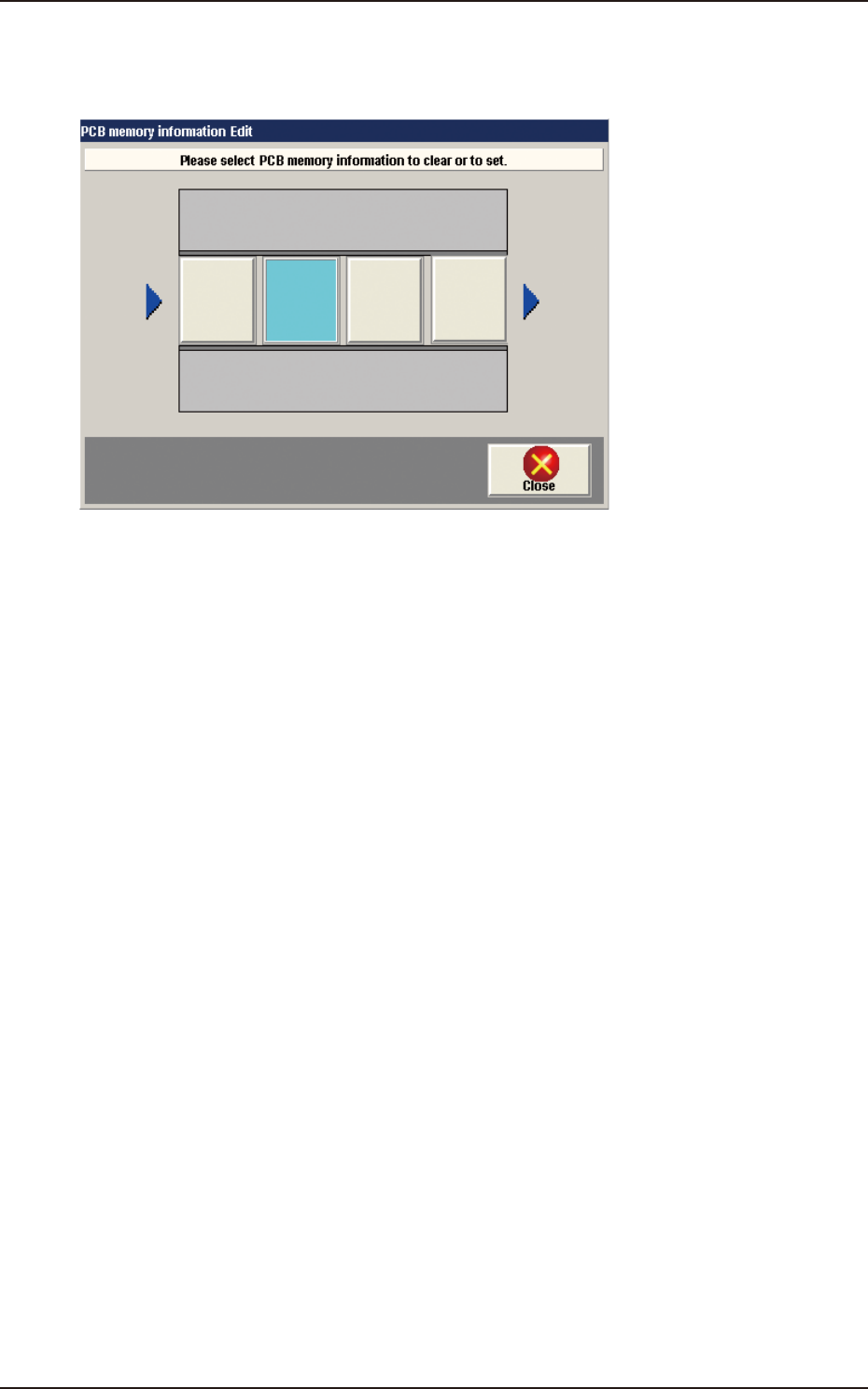

[5] [PCB Mem. Info.] Button

In the case that PCB presence/absence does not agree with the memory due to the removal of the

PCB, the PCB presence/absence data can be setup using the window operation.

F2F29

Light Blue : PCB Presence Status

Gray : PCB Absence Status

EUKYX

6-23199-2100

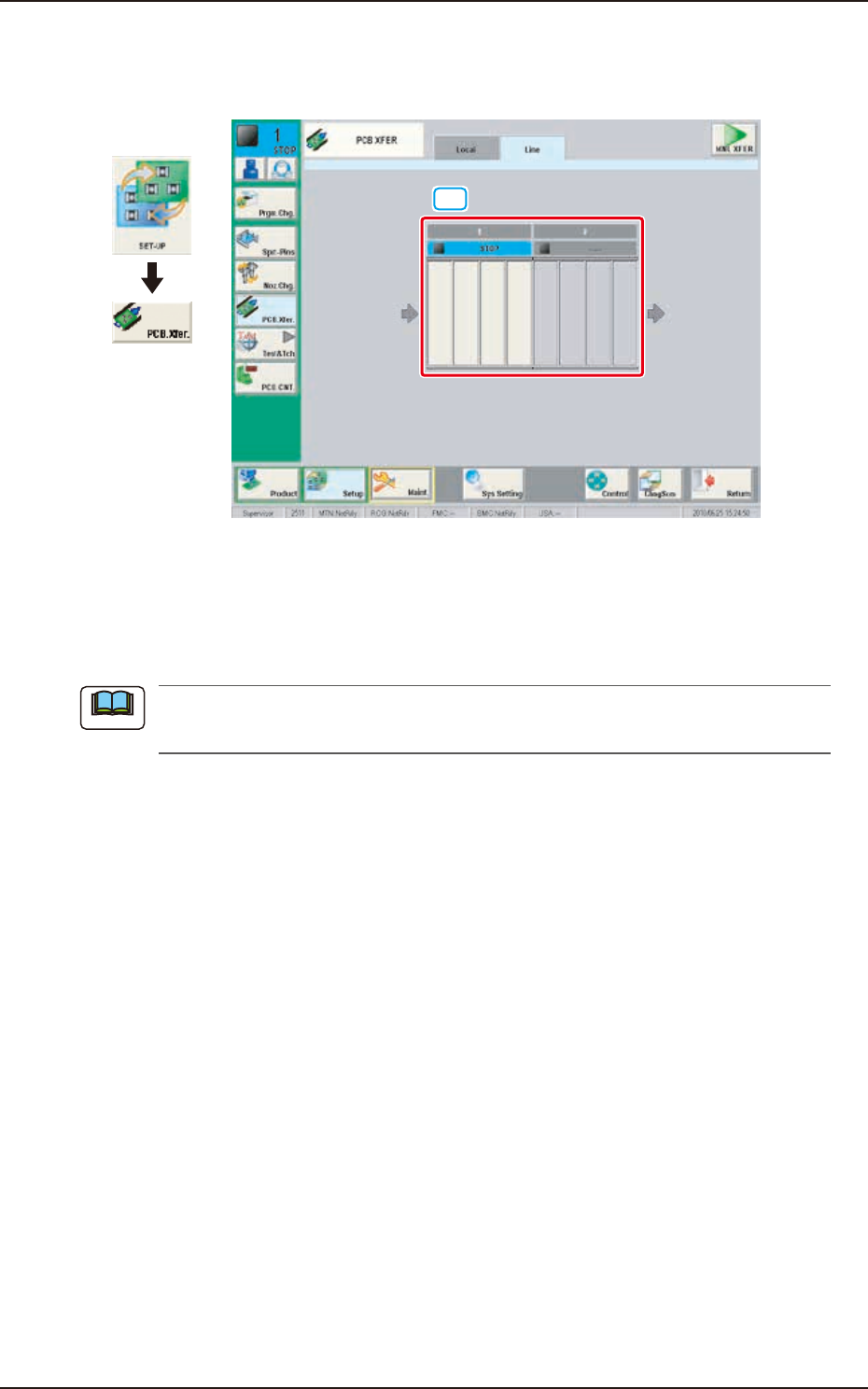

6.2 "Line" Tab Sheet

This tab sheet enables the operator to transfer a PCB between two or more machines.

[1]

Graphic

Development

F2F30

[1] Conveyor Image Display Section

Each block of the conveyor of which an image is displayed, functions as a button.

When the conveyor block button is pressed and within 10 seconds, the [START] button on the

operation panel is pressed, the PCB is transferred to the position.

(a) This button is displayed when two or more machines are installed in the line.

(b) Up to 16 conveyor blocks are displayed.

Note
