EUKYX
6-57199-2100
[13] [ ] Button
This makes it possible to insert leads and balls into the lead and ball missing areas.
The condition that validates the button is the same as [12].
For example, this button can be used effectively for such a BGA as shown below.
Specify the missing
area with the
[ ] button.
Insert balls into
the missing area
with the [ ]
button.
Specify the missing
area again with the
[ ] button.
Insert balls again
into the missing
area with the
[ ] button.
F2F61
[14] [ ] Button
When selected, this button deletes one electrode.
After pressing this button, click the electrode to be deleted.
[15] [
] Button
When selected, this button inserts one electrode. After pressing this button, click any area inside
the window and drag the pointer to the place where the electrode should be inserted.
F2F62
[16] [ ] Button
When selected, this button enables you to enclose several electrodes with a dotted frame for the
selection. This type of selection is useful when several electrodes should be slightly moved at a time.
F2F63
[17] [ ] Button
When selected, this button selects all electrodes.
This type of selection is useful when all electrodes should be slightly moved from the mold center.
7.3 "COMP RCG" Test Window
EUKYX
6-58199-2100

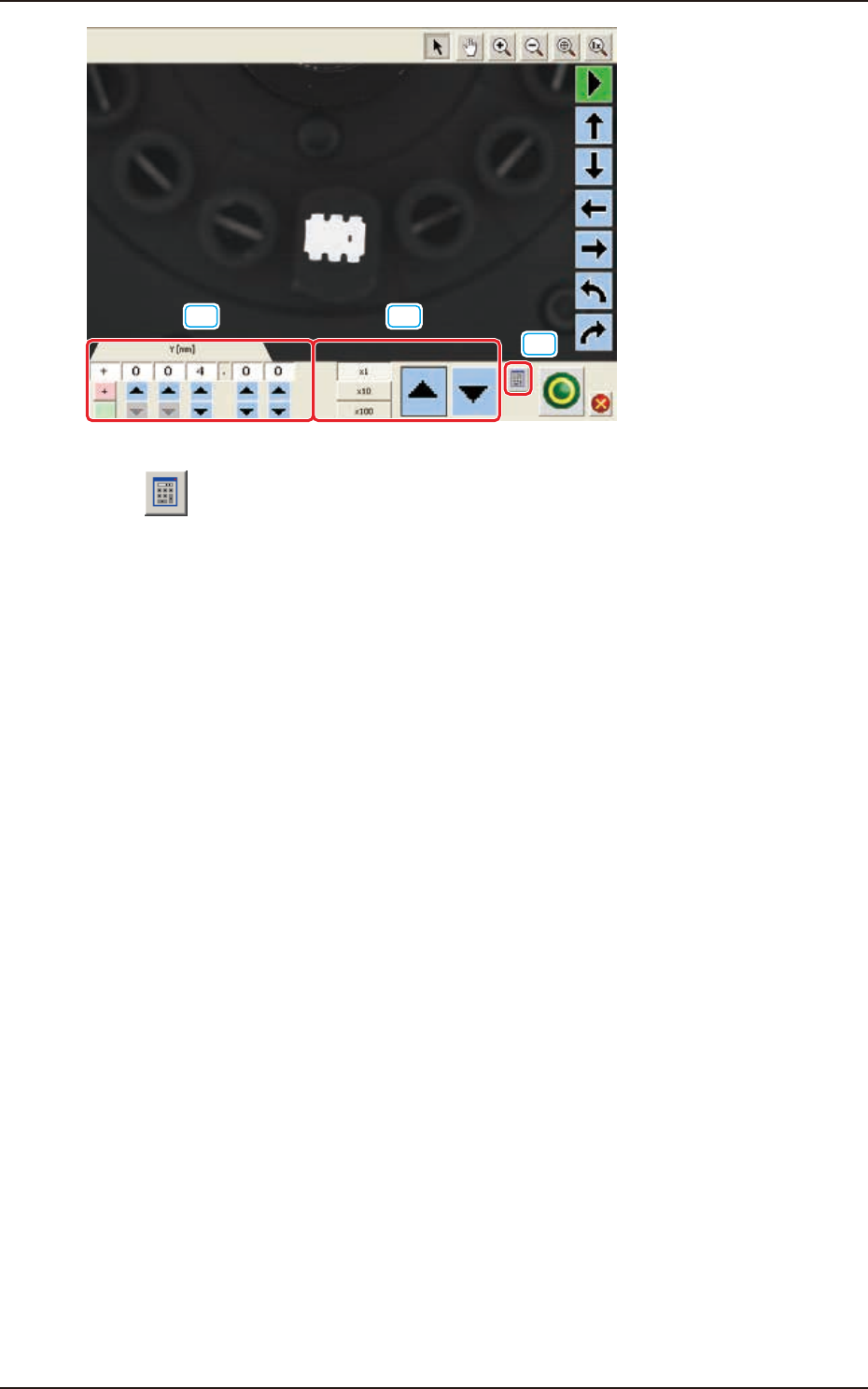

[19] [20]
[18]
F2F64
[18] [ ] Button
A ten-key pad appears for data entry.
[19] [increase / decrease] Button 1
Pressing the button for each unit directly increases or decreases the numerical value.
[20] [increase / decrease] Button 2
Selecting each unit of "× 1(0.01)" "× 10(0.1) and "× 100 (1)", increases or decreases the numerical
value in the selected units.
7.3 "COMP RCG" Test Window
EUKYX
6-59199-2100
7.3.7 "Create Teach" Wizard
Follow the steps below to newly create data to be taught.
7.3.7.1 Leaded Components - QFP
(1) Select [Leaded] - [IC] - [QFP] on “Create teach wizard” window.
F2F65
Procedure
