EUKYX

6-60199-2100

(2) Confirm that the component is in the yellow circle (frame).

When it is in the circle, press the [Yes] button. Otherwise, press the [No] button.

F2F68

When the [No] button is selected, the component image is split into several parts which are

subsequently captured and reassembled to create the whole image to be displayed.

The following dialog box appears. Press the [OK] button.

F2F69

When the [OK] button is pressed, the following dialog window opens. Press the [START] button on

the operation panel and wait until the divided image capturing is completed.

F2F70

Note

7.3 "COMP RCG" Test Window

EUKYX

6-61199-2100

(3) After clicking the upper left of the component image, click the lower right to place the

whole component image within a frame.

(Specify an approximate size and position of the component.)

F2F71

(4) Press the [Teaching] button to select the teaching method.

When the [Editing] button has been selected, the editing operation is performed based on the

sample data. Press the [Complete] button to return to the component library teaching window.

F2F72

Note

7.3 "COMP RCG" Test Window

EUKYX

6-62199-2100

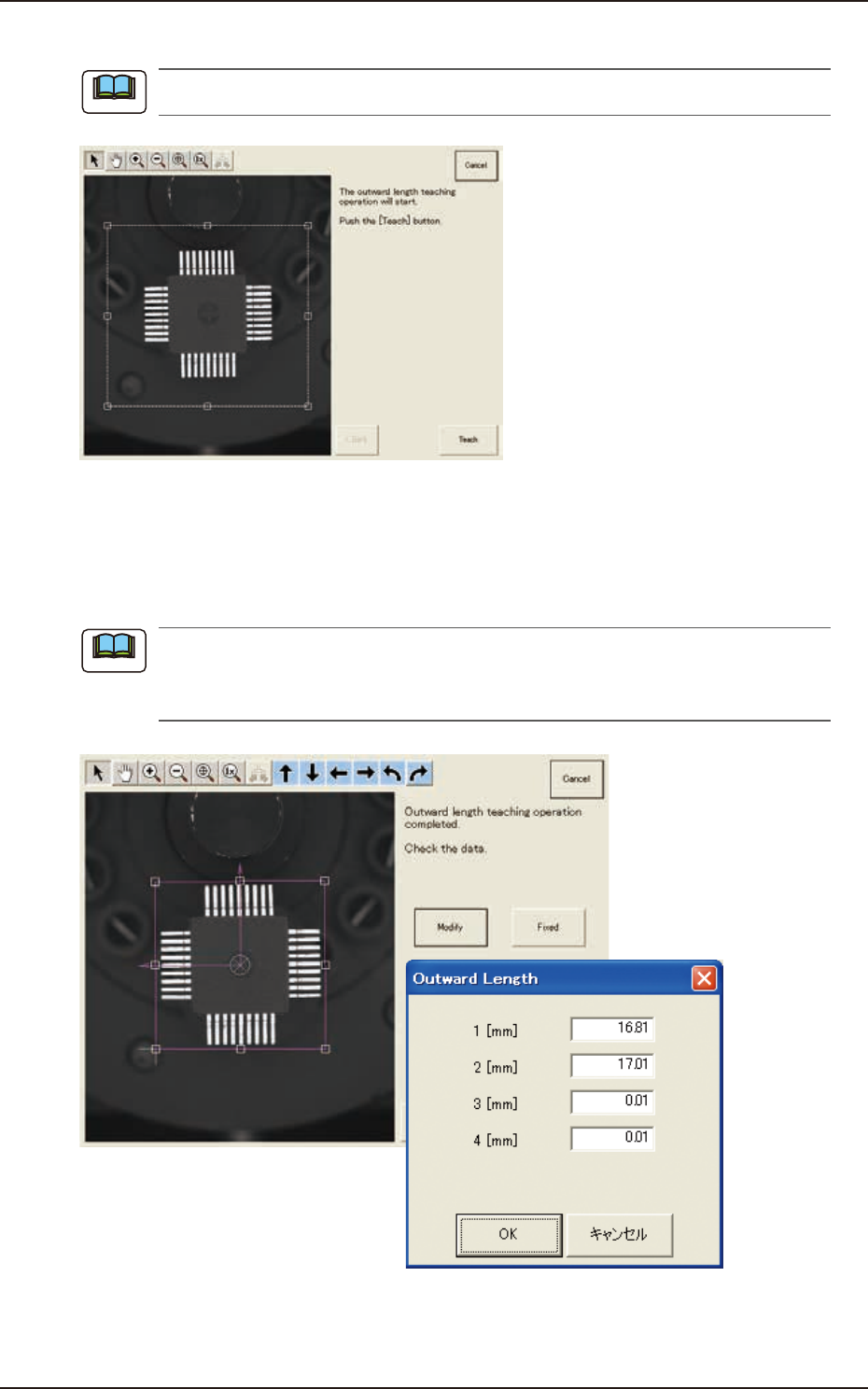

(5) Press the [Teach] button to perform the outward length teaching operation.

Make sure that the component is within a frame with dot lines and if not, adjust it again.

F2F73

(6) When the outward length teaching is completed, check the data and press the [Fixed]

button. (When the outward length and/or the component angle is different,correct the

graphic errors.)

(6-1) Press the [Modify] button. (The following window appears. Select the modification method.)

(a) The indicated data may contain some fractional parts in the values. At the end of the

teaching operation, these fractional parts are truncated.

(b) To turn the graphic, click the coordinate graphic and drag either one of the arrow ends.

F2F74

Note

7.3 "COMP RCG" Test Window
