7.3.7.2 Leadless Components - Resistor Networks

(1) Select [Leadless] - [Deformed] on “Create teach wizard” window.

F2F86

(2) Confirm that the component is in the yellow circle (frame). When it is in the circle, press the

[Yes] button. Otherwise, press the [No] button.

F2F88

Procedure

7.3 "COMP RCG" Test Window

EUKYX

6-69199-2100

(3) After clicking the upper left of the component image, click the lower right to place the

whole component image within a frame.

F2F89

(4) Make sure that the whole image is within the frame and press the [Fixed] button.

(5) Press the [Teaching] button to select the teaching method.

When the [Editing] button has been selected, the editing operation is performed based on the

sample data. Press the [Complete] button to return to the component library teaching window.

F2F90

Note

7.3 "COMP RCG" Test Window

EUKYX

6-70199-2100

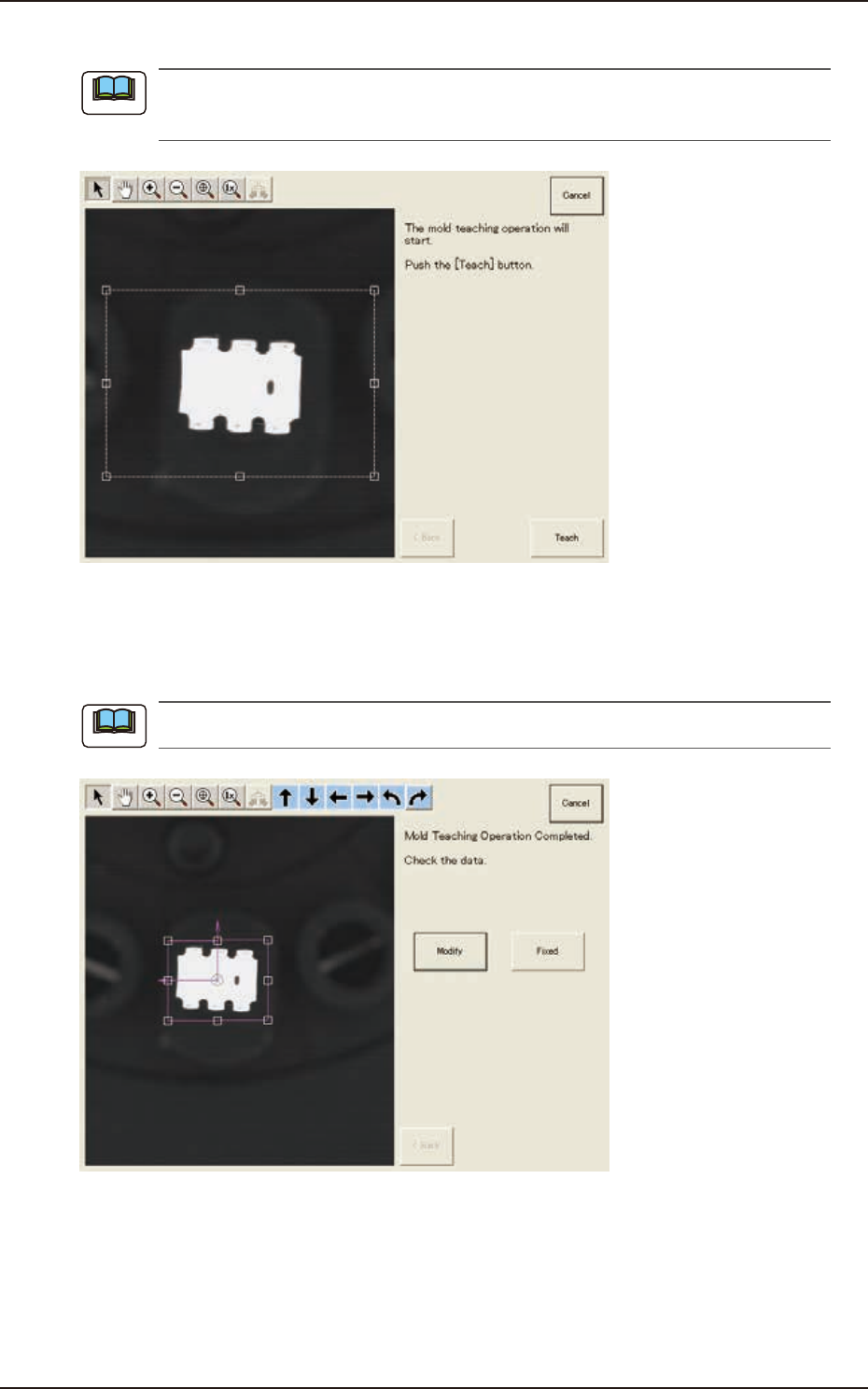

(6) Press the [Teach] button to start the mold teaching operation.

Make sure that the component image is within the frame with dot lines. If the component is out

of the frame, adjust it again.

F2F91

(7) When the mold teaching is completed, check the data and press the [Fixed] button.

(If the component size or angle is not correct, press the [Modify] button to correct the

graphic image.)

To turn the graphic, click the coordinate graphic and drag either one of the arrow ends.

F2F92

Note

7.3 "COMP RCG" Test Window
