EUKYX

6-81199-2100

7.4 "PEC RCG" Test Window

[3] [Mark Pos Edit] Button

Using this button, the PEC recognition mark position is setup. Each item is shown as a button and

when each button is pressed, the corresponding data set window appears.

F2F115

(a) When the pattern program has been setup, the parameters for the “PEC Size X[mm]”

and “PEC Size Y[mm]” are automatically set.

(b) When the settings have been performed in the "Cmt PP Data Setting" window, the “Mrk

Pos X[mm]” and “Mark Pos Y[mm]” also have already been setup.

[4] [Mark Data Edit] Button

Press each button to set the PEC recognition mark.

F2F116

When the settings have been performed in the "Cmt PP Data Setting" window, the PEC

recognition mark data has already been setup.

Note

EUKYX

6-82199-2100

7.4 "PEC RCG" Test Window

[5] [Move] Button

Using this button, the beam is moved to the set position.

[6] [Manual Alignment] Button

Using this button, the window where the recognition position setup using the manual alignment

operation, is opened.

[7] [PEC Recog] Button

When this button is pressed, the PEC recognition test is prepared.

[8] Result:

In this pane, the PEC recognition test results are displayed.

[9] [PCB XFER] Button

When this button is pressed, the "PCB Transfer" window appears.

See “6. “PCB XFER” Window” in this chapter for details.

[10] [Save Image] Button

When this button is pressed, the "Image Save" window appears.

This window is used to save the test results.

[11] [

(Re-Recognition)] Button

After pressing this button, the recognition image is touched in the "Manual Alignment" window to

re-recognize the marks.

Reference

EUKYX

6-83199-2100

7.4 "PEC RCG" Test Window

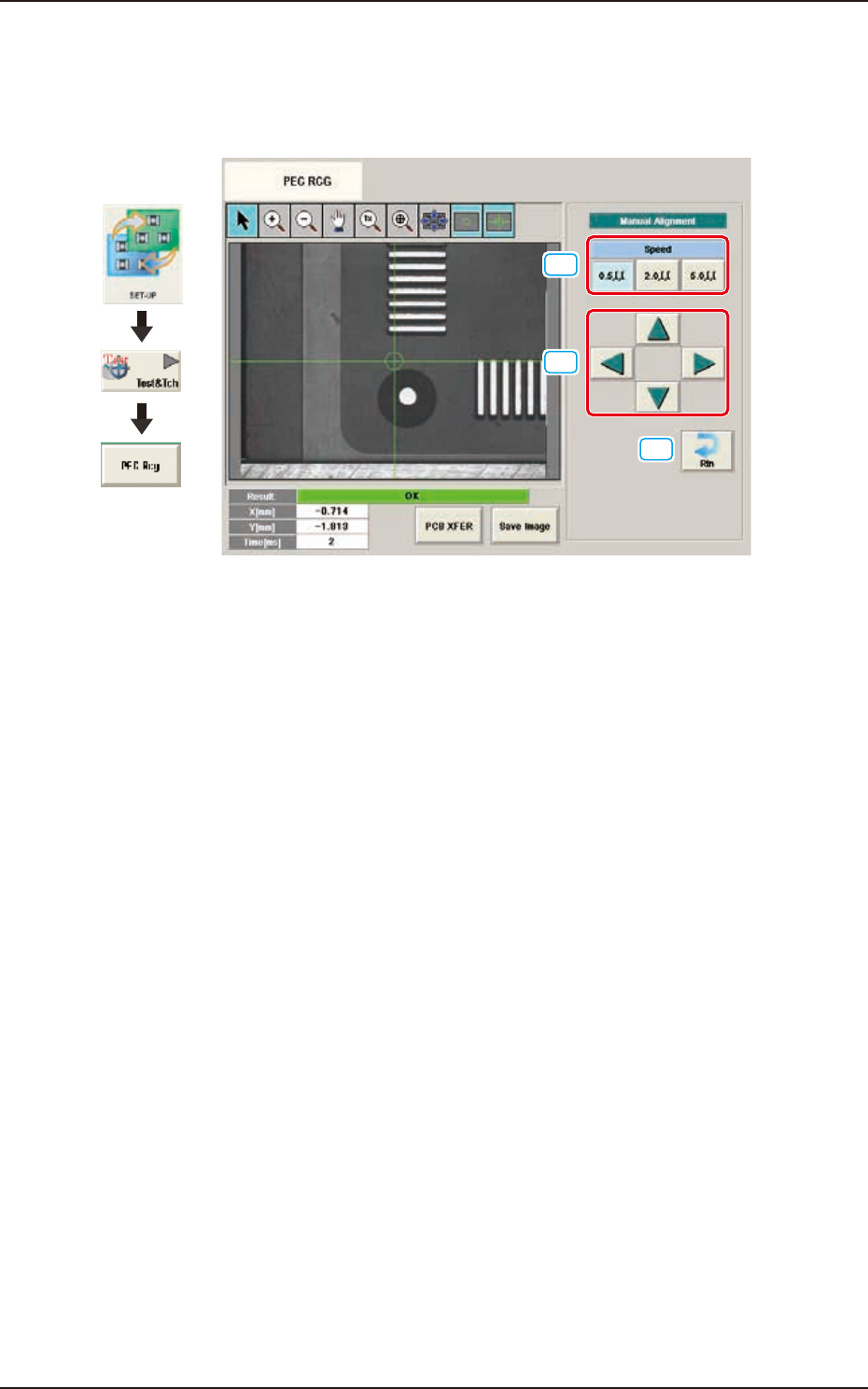

7.4.1 Manual Alignment Operation

The PEC recognition position is located using the manual alignment operation.

When the [Manual Alignment] button is pressed after the [Move] button is pressed on the "PEC

RCG" test window, the "Manual Alignment" window appears.

[1]

[2]

[3]

Graphic

Development

F2F117

[1] [Speed] Button

The beam movement speed in the manual alignment operation is selected from the following items.

[0.5 mm] Button, [2.0 mm] Button, [5.0 mm] Button

[2] [Arrow] buttons

When pressed, the direction to move the beam is specified.

Press the button and then press the [START] button within 10 seconds. The beam is moved at the

speed selected in "[1] Speed Setup" in the arrow direction.

[3] [Rtn] Button

When pressed, the window returns to the "PCB Test" window.
