EUKYX
1-5199-2100
2.1 Local Window
[3] Production Data
F2A5
PCB Process Time : Displays the time required to finish one PCB excluding the PCB in
the middle of process.
Displayed is the total time required between the PCB receiving
start and the completion of the last component placement.
Product PCB
: The number of produced unit PCBs is displayed.
PCB Count
: The number of produced PCBs at present is displayed.
Planned Product Count
: The number of PCB products to be produced is displayed in this
data box.
Production End Planned Time
: The PCB production end planned time is displayed in this data
box in the case that the "Planned Product Count" has been setup.
[Clear] Button
: When pressed, this button clears the number of produced PCBs
to "0"(zero).
Refer to “8. “PCB.CNT.” Window” in "Chapter 6" for how to use the "PCB Count".
Reference
EUKYX
1-6199-2100
2.1 Local Window
[4] Data Display Section
The production data, component reload data and component handling rate data parameters are
displayed in this section. Each data display is changed using the button on the lower right of the
display section.
Production Data
When the display change button (left) is pressed, this window appears.
F2A6
Feeder Reload Data
The data of the feeder where the component replenishment is required, is displayed.
F2A7
EUKYX
1-7199-2100
2.1 Local Window

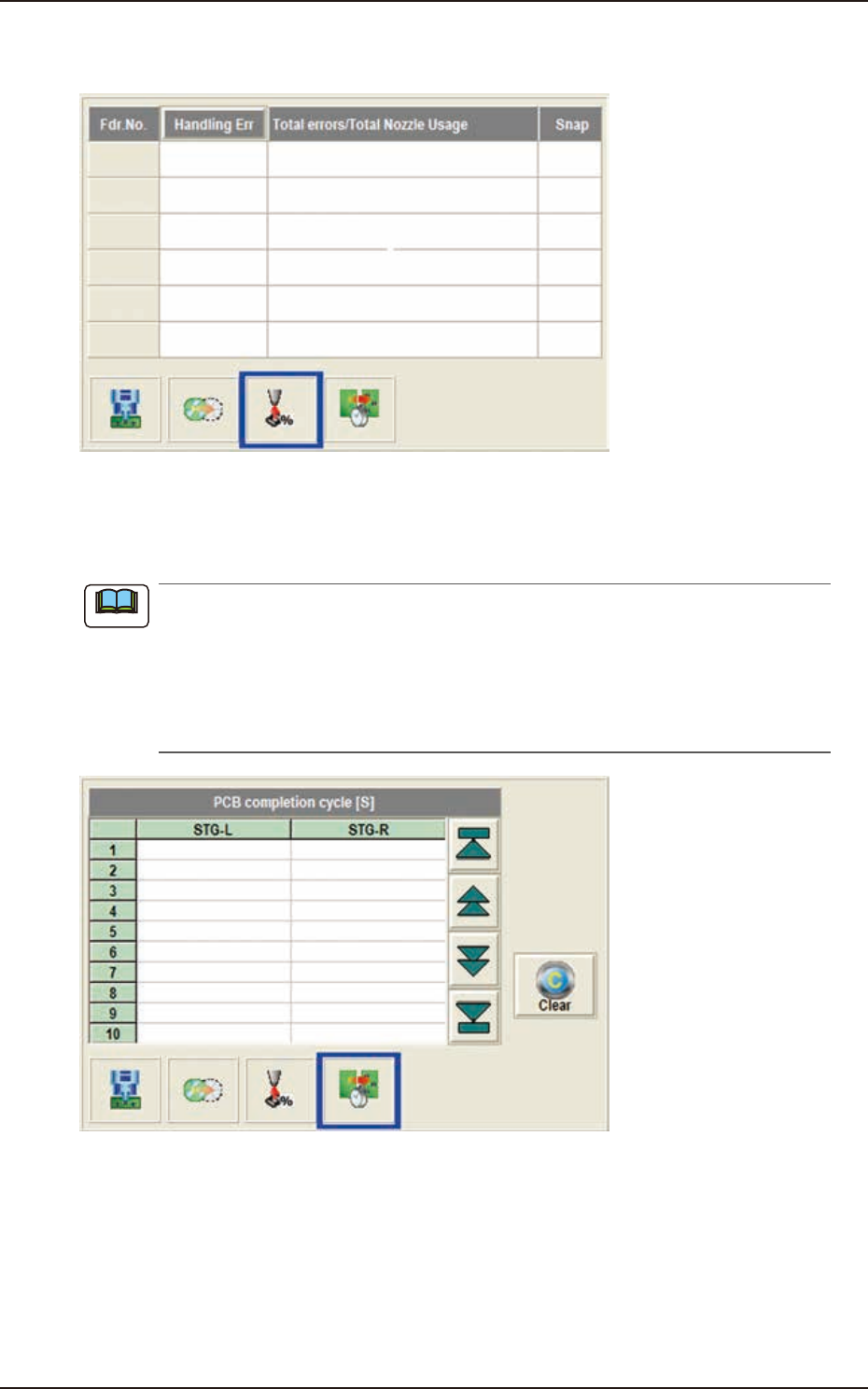

Component Handling Rate Data
The data of the feeder where the pick-up rate has been dropped, is displayed.
F2A8
PCB completion cycle
Max. 500 items of the measured finishing interval (interval between the previous PCB and the
current PCB at the final step completion) are displayed from the newest.
(a) Because the interval cannot be measured before the second PCB is completed, "---" is
displayed at the first PCB finished time.
(b) In the case that the placement status becomes "Stopping" or "Pause", the measurement of
the PCB is stopped and "---" is displayed.
(c) The history is automatically saved in "D:\mdata\MachDt\PcbInt.csy" when the whole
status becomes "Stopping".
F2A9
[5] Stop Mode
[All PCB out] Button
After the PCB in the course of the production, has been produced, the PCB is discharged
and the automatic production operation is stopped.
[Cycle] Button
When the component placement operations on the PCBs in the course of the production in
each of the stage 1 and stage 2, have been completed, the automatic production operation is
stopped.
Note
