2.2 Line Window
2.2 Line Window

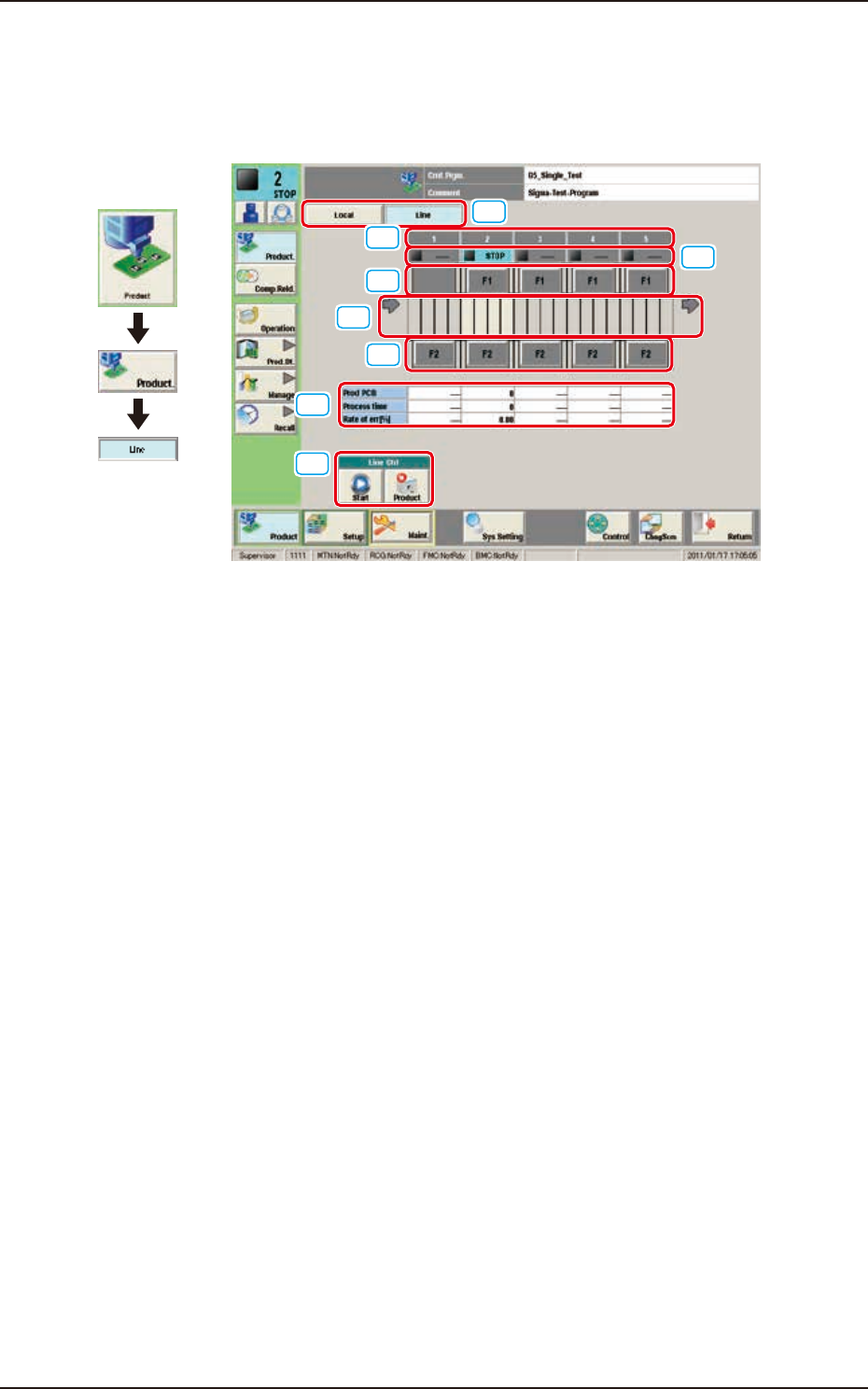

This window enables the operator to check the production line operation status and operate the
line. In this window, the operation status of the SIGMA series machines (including the printer) set in
the line configuration, PCB transfer unit graphic image and production data are displayed.
[1]
[6]
[5]
[7]
[3]
[4]
[5]
[2]
Graphic
Development
F2A10
[1] Local / Line Change Buttons
Using these buttons, the Local window is changed to or from the Line window.
[2] No.
In this area, the machine Nos. in the line are displayed.
[3] Operation Status
In this area, the operation status of each machine in the line, is displayed.
RUN : This machine is under operation.
STOP : This machine is shut down.
PAUSE : This machine is stopped temporarily.
[4] PCB transfer section
In this area, the operation status of each machine in the line, is displayed.
Green : PCB present
Gray : PCB absent
[5] Feeder Base Unit
In this area, the presence or absence of the feeder base is displayed.
EUKYX
1-9199-2100
2.2 Line Window
[6] Line Ctrl
[Start] Button (Line Start)
When this button is pressed and the [Start] button on the operation panel is pressed, the machines
(including the printer) in the line, are started up together.
(a) The start-up operation is available from any machine in the line.
(b) Press the start button after all the machines to be operated have been set to production
READY condition. When any of the machines has not been set to production READY
condition, the start-up together is not available.
(c) When the machines are started up together, the tower light flashes for three seconds and
the buzzer sounds.
[Product] Button (Line Discharge)
When this button is pressed, the PCB discharge stop is performed in the machines in the line from
the upstream machine.
This operation is available from any machine in the line.
[7] Production Data
The production data for the SIGMA Series line is displayed in this area.
Prod PCB
The product PCB production completion time is displayed in this data box.
Process time
The product PCB production completion time is displayed in this data box.
(The PCB completion time on the pattern program management data is displayed in this data
box).
Rate of err [%]
The product model pick-up error rate is displayed in this data box.
(The pick-up error rate on the pattern program management data is displayed).
Note
Note
EUKYX
1-10199-2100
3. "Comp.Reload" Window
3. "Comp.Reload" Window
Graphic
Development
[1]
[3]
[4]
[2]
[7]
[6]
[5]
[8]
[9]
[11] [13]
[12]
[10]
F2A11

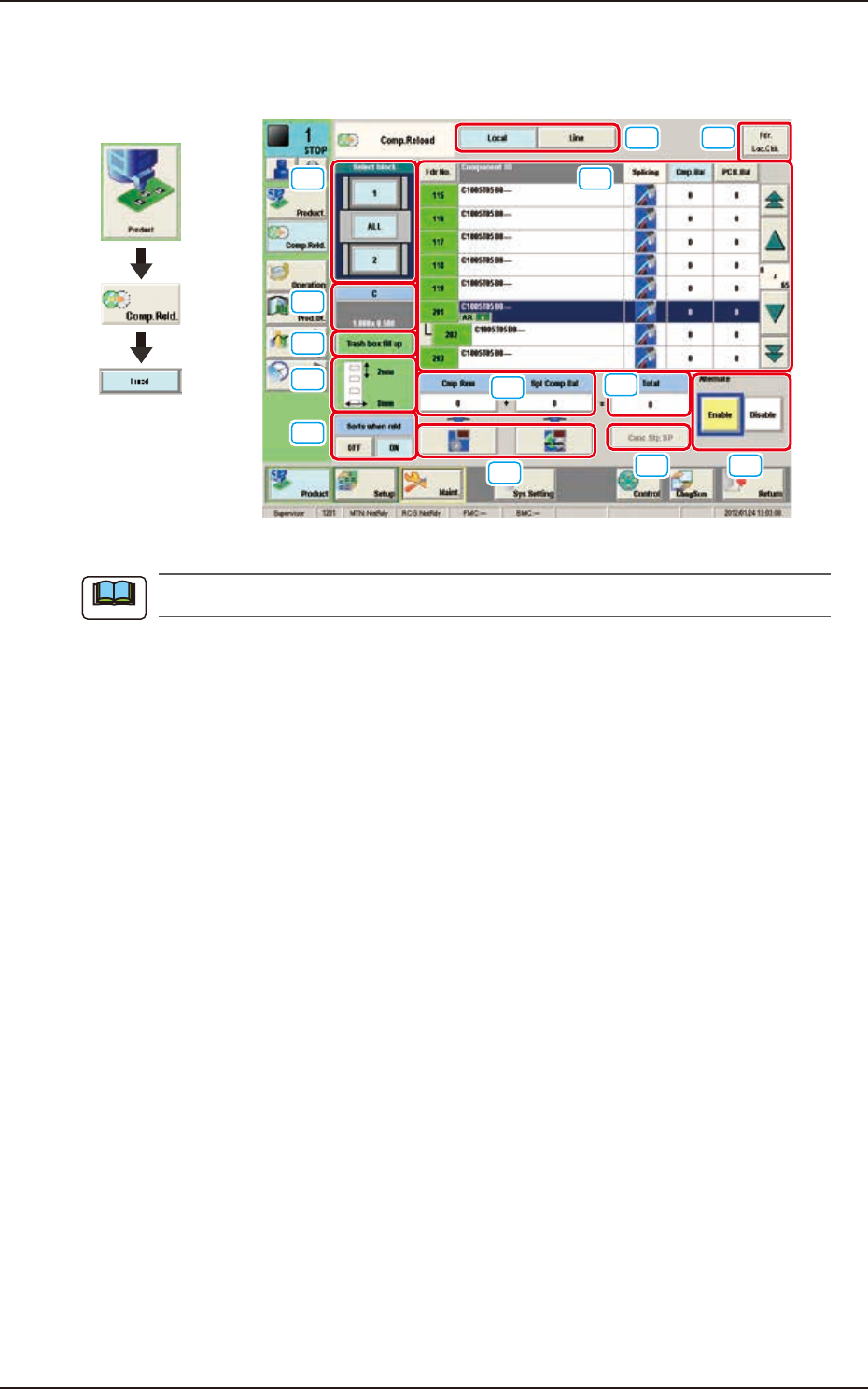

The displayed contents will differ depending on selection of the options.
[1] Select block
When each block button is pressed, the “[2] List of Feeders” pane shows the feeder information of
the corresponding block.
Note
