EUKYX 1-1 1 199-2100 3. "Comp.Reload" Window [2] "List of Feeders " Pane F dr N o. The conditi on of eac h feeder is color - coded. When a component shor tage error has occurred in a f eed er , t he b…

EUKYX

1-10199-2100

3. "Comp.Reload" Window

Graphic

Development

[1]

[3]

[4]

[2]

[7]

[6]

[5]

[8]

[9]

[11] [13]

[12]

[10]

F2A11

The displayed contents will differ depending on selection of the options.

[1] Select block

When each block button is pressed, the “[2] List of Feeders” pane shows the feeder information of

the corresponding block.

Note

EUKYX

1-11199-2100

3. "Comp.Reload" Window

[2] "List of Feeders" Pane

Fdr No.

The condition of each feeder is color-coded. When a component shortage error has occurred

in a feeder, the background color of the feeder No. turns red.

According to your judgment based on the color codes, components can also be supplied to

the other feeders together with the error-caused feeder.

Red

: Feeder Unavailable (Component Shortage Error, Feeder Not Installed, etc.)

Pink

: Feeder that requires splicing

Yellow

: Attention Required Feeder (Warning of Component Shortage, etc.)

Green

: The feeders are normal.

Gray

: Not selected feeder (specified as "Not Used") in the pattern program

Component ID

Displayed are the component IDs.

Splicing

When the splicing function in each feeder has been enabled, it is displayed in blue, and

when the function has been disabled, it is displayed in red.

Cmp.Bal

Displayed is the number of components remaining in the feeder.

PCB.Bal

The No. of PCBs where the components can be placed before a component shortage occurs,

is displayed in these data boxes.

Each button-shaped item has a button function.

When each button is pressed, the corresponding items are re-arranged in the ascending order.

[3] Component type

Displayed are the following component data.

Comp Type / Comp Size (X, Y)

[4] Tape Type

Displayed are the following Tape data.

Tape Width / Pitch

Note

EUKYX

1-12199-2100

3. "Comp.Reload" Window

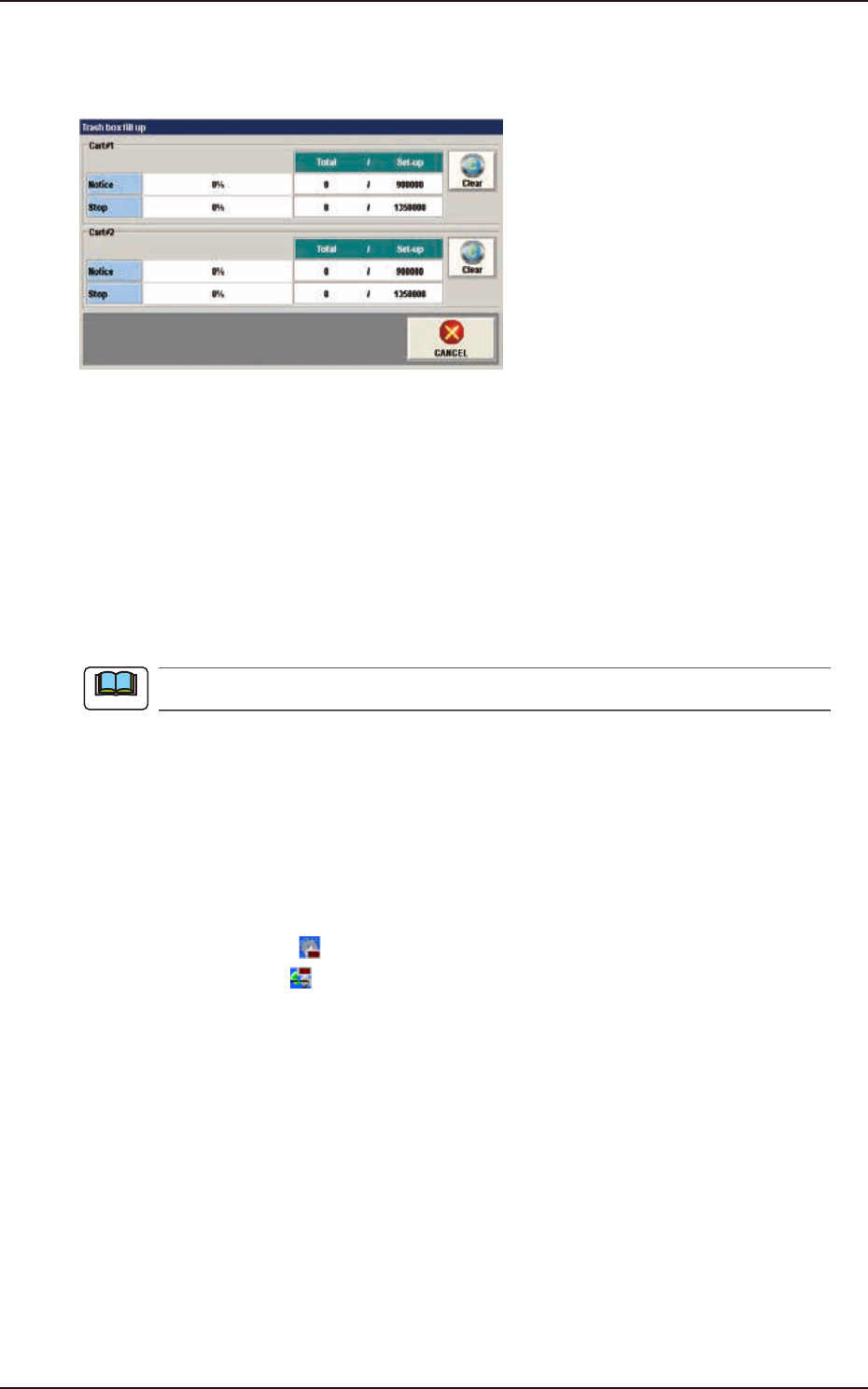

[5] [Trash box fill up] Button

Pressing this button displays the following window and the condition of tape cuttings can be

checked.

F2A12

• Cart #1, #2

Notice

When the total amount value reaches the set value, it is announced in this section.

Stop

When the total amount value reaches the set value, it is announced in this section and the machine

is stopped.

[Clear] Button

When this button is pressed, the total amount value is returned to "0".

Refer to “3. “Auto Operation” Window” in Chapter 2, Volume 3, for the set values.

[6] Sorts when reld

[OFF] Button

When this button is pressed, the sorting operation is not performed in the component reload

operation.

[ON] Button

When this button is pressed, the component reloaded feeders are automatically sorted by

“Comp.Bal“ or “PCB.Bal“ and moved down.

[7] [Cmp Reload] Button

[SPL Reload] Button

Pressing these buttons enters the corresponding numbers of components in the component

library data in the above text boxes.

[8] [Cmp Rem] Button,

[Spl Comp Bal] Button

Pressing either one of these buttons opens a data entry window - “Cmp Rem” or “SPL Cmp

Rem” window. Each data entry window enables the operator to enter and specify the

number of components being used currently or subsequently (for splicing).

These buttons can be used when the number of components differs from the specified value

(number of components) in the component library data.

[9] [Canc.Stp.SP] Button

When this button is pressed, it can be canceled to stop the tape feeding for splicing the tape

ends together. As a result, the tape feeder equipped with the tape splicing function will not

be stopped, making it possible to use up the tape.

Note
