4.1 "Run Mode" Tab Sheet

Starting Procedure for the Semi-Auto Step Designation

(1) Transfer the PCB to the designated table.

Transfer the PCB manually to the aimed position.

(2) Designate the step to be started using either of the above procedures.

The background of the designated step is turned in blue.

(3)

When the [START] button on the operation panel is pressed, the designated step mounting is started.

• Description of Semi-Auto Step Any Desig (free designation)

Two or more steps can be designated.

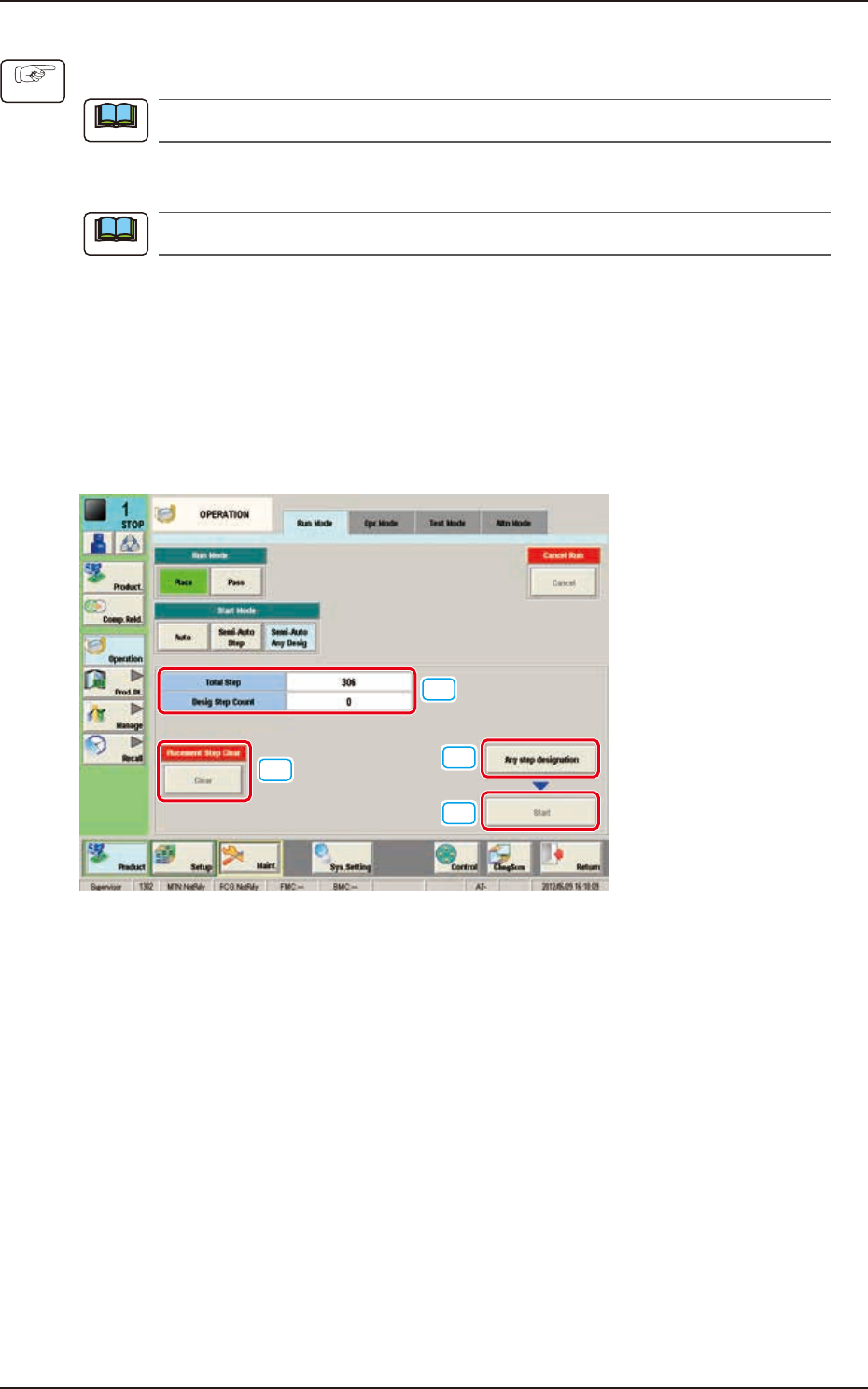

Description of “Semi-Auto Step Any Desig” Window

When the [Semi-Auto Step Any Desig] button is pressed in the “Start Mode” group box, the

following window appears.

[1]

[2]

[3]

[4]

F2A19

[1] No. of Total Steps and Designated Step Count Display Section

The No. of total steps and No. of designated steps are displayed in this section.

[2] [Any step designation] Button

When this button is pressed, the “Any Step Designation” Window appears.

[3] [Start] Button

When this button is pressed, the designated step operation is started.

[4] [Placement Step Clear] Button

When this button is pressed, the placement step operation designated in the “Any Step Designation”

mode, is cleared.

Procedure

Note

EUKYX

1-21199-2100

4.1 "Run Mode" Tab Sheet

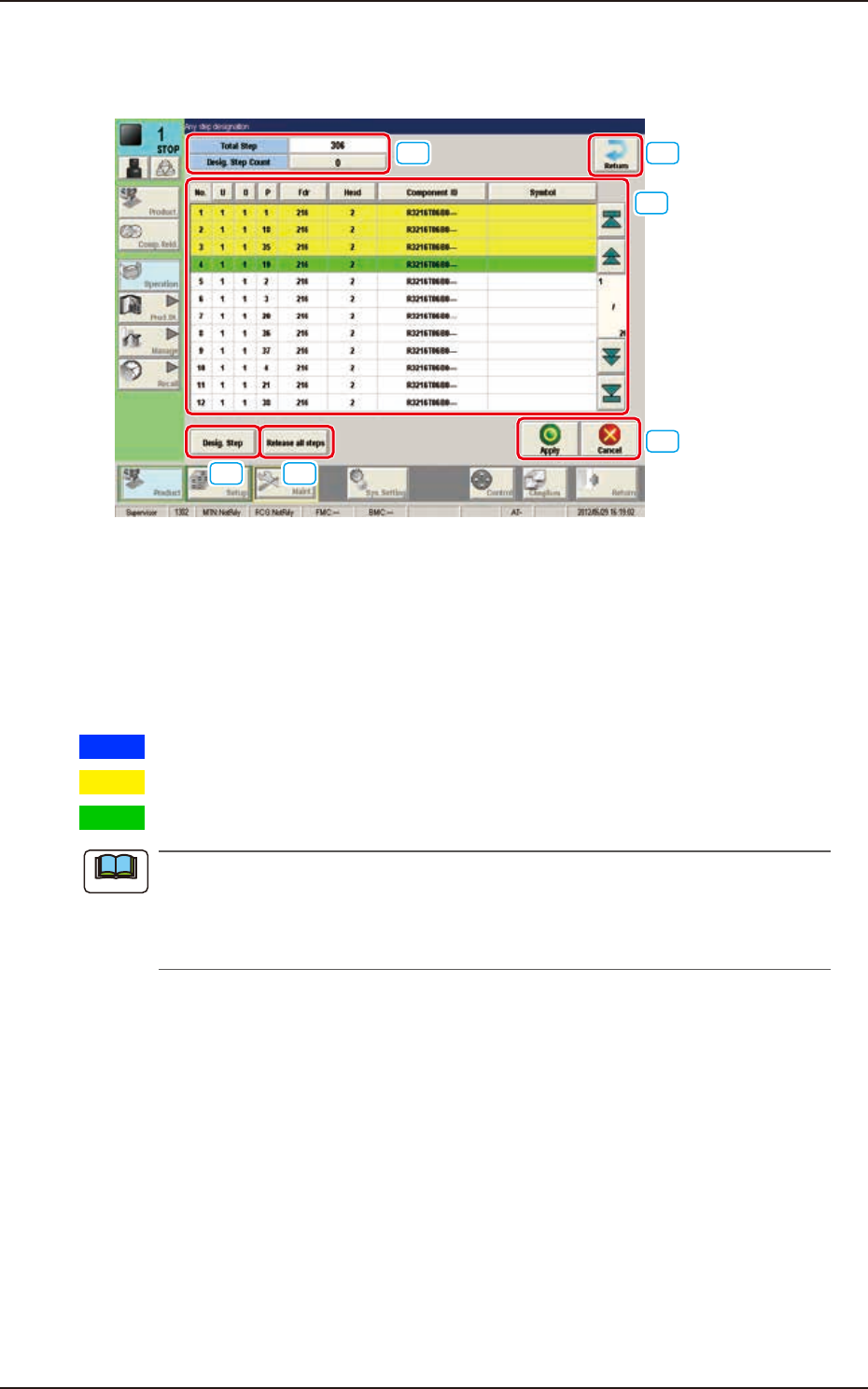

Description of "Any step designation" Window

When the [Any step designation] button is pressed in the "Semi-Auto Step Any Desig" Window, the

following window appears.

[1]

[2]

[3] [4]

[5]

[6]

F2A20

[1] No. of Total Steps and Designated Step Count Display Section

The No. of total steps and No. of designated steps are displayed in this section.

[2] Step Display Section

The total No. of steps in the pattern program set in the machine, is displayed.

Setting the cursor on the step item in the list, designates the step. The background color changes as

follows.

Blue

: This shows the moved step, which has not been designated.

Yellow

: This shows the step, which has already been designated.

Green

: This shows the step, which has been last designated.

In normal cases, the starting step Nos. are displayed in the order of actual component

placement. By pressing the [O] or the [P] button, the steps can be re-arranged in the ascending

order. Even when the step Nos. are rearranged, the component placement order is not

changed.

[3] [Desig.Step] Button

The step No. can be entered and designate in the entry window displayed by pressing the [Desig

Step] button. Enter the step No. in the order of "U", "O" and "P".

[4] [Release all steps] Button

When this button is pressed, all the designated steps and applied steps are cleared.

[5] [Apply] Button

When this button is pressed, the designated step or cleared step is applied.

[Cancel] Button

When this button is pressed, the cleared step is cancelled.

[6] [Return] Button

When this button is pressed, the “Semi-Auto Any Desig” window is returned.

Note

EUKYX

1-22199-2100

4.1 "Run Mode" Tab Sheet

Starting Procedure for Semi-Auto Step Any Desig (free designation)

(1) Transfer the PCB to the designated table.

Transfer the PCB manually to the aimed position.

(2) Designate the step in the "Any step designation" window and press the [Apply] button.

A dialogue "Do you save the change?" will be displayed. Select "Yes". After the selection, the

No. of designated steps is changed.

(3) Press the [Return] button to return to the "Semi-Auto Any Desig" window.

(4) When the [START] button on the operation panel is pressed, the designated step mounting

is started.

(a) Precautions during the step operation designated in “Any Step Designation” mode

• The addition or deletion of step operation designated in the “Any Step Designation”

mode, is disabled. Before or after the component placement, or after all applied steps

are cancelled in the case of stop in the course of the operation, such addition or deletion

is enabled.

• In the case that the step designated in “Any Step Designation” mode, is stopped in the

course of the operation and the placement is started again, the operation is started from

the head of the undone steps.

• In the case that the operation is to be started again, after the step designated in the “Any

Step Designation” mode, is stopped in the course of the operation and undone steps are

cleared, the operation is started from the head of the applied steps designated in “Any

Step Designation” mode.

• Even when the PCB is discharged after the operation is stopped in the course, the

operated step data is not cleared.

(b) After all the steps are performed

When the operation start is attempted after all the previously set steps are performed,

the component placement is not started. In order to start the component placement, clear

the previously set placement steps.

(1) Press the “Placement step clear” button on the “Semi-Auto Any Desig” window.

(2) Press the “Release all step” button on the “Any step designation” window and

press the “Apply” button.

(d) PCB Discharge

•

Discharge the PCB manually after all the steps designated in “Any Step Designation”

mode, are completed (including the stop in the course of the operation).

•

Start the normal operation after the PCB discharge.

Procedure
