MODEL SL-G300
0909-003
搬送部全体
OVERALL TRANSFER SECTION

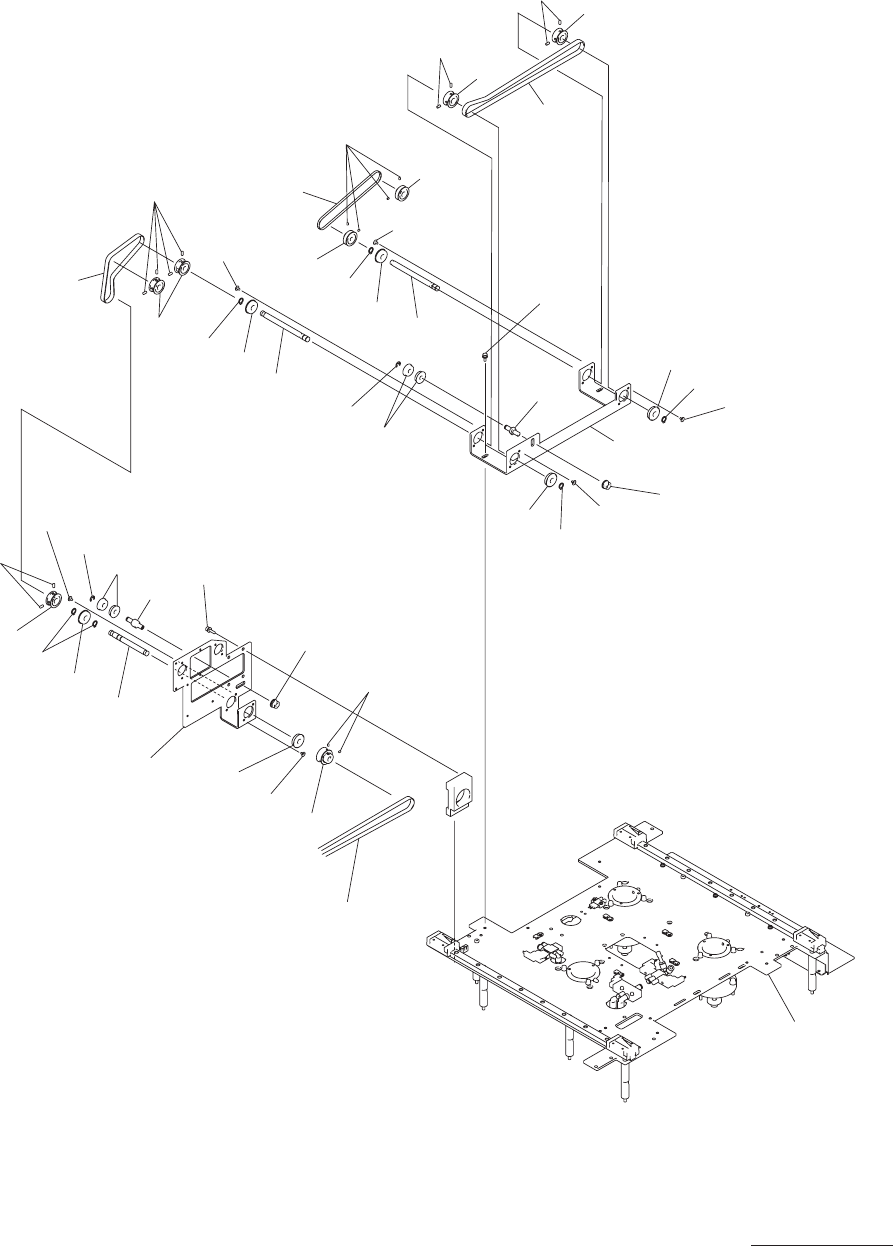

Fig. N-4
シュート１駆動部
Chute 1 Driving Section
N-4 illust-1
MODEL SL-G300
0909-003
搬送部全体
OVERALL TRANSFER SECTION
Fig. N-4
シュート１駆動部
Chute 1 Driving Section
N-4 illust-2
301 6301565194 SHAFT 1 866N--100-211 213A1475
302 6301563220 BRACKET 1 866N--100-002 211FC311
305 6300969009 BEARING,RADIAL 10 866N--100-025 222D0343
307 6301565187 SHAFT 1 866N--100-217 213A1474
309 6301499574 MOTOR,STEPPING 1 M55 866N--100-419 4M140163
310 6301237039 SENSOR,PELEC 2 866N--100-030 23G00242
312 6301567310 SHAFT 1 866N--100-312 213A1478
313 6301567327 SHAFT 1 866N--100-313 213A1479
314 6301567334 SHAFT 1 866N--100-314 213A1480
315 6301567341 SHAFT 1 866N--100-315 213A1481
316 6301567556 BRACKET 1 866N--100-316 211FC372
317 6301566047 PLATE 1 866N--100-317 211DC850
318 6301567563 BRACKET 1 866N--100-318 211FC373
319 6301567570 BRACKET 1 866N--100-319 211FC374
320 6301546360 BELT,TIMING 1 866N--100-320 223L0362
321 6301546377 BELT,TIMING 1 866N--100-321 223L0363
322 6300997750 BELT,TIMING 1 866N--100-322 223L0211
323 6301587295 BELT,TIMING 1 866N--100-323 223L0375
326 6301545790 BELT,TIMING 1 866N--100-326 223L0360
327 6301533162 BELT,TIMING 1 866N--100-327 223L0354
328 6301544205 COUPLING 1 866N--100-328 223C0244
329 6300011425 BEARING,RADIAL 12 866N--100-329 222D0021
330 4110007102 RING C 10 12 866N--100-330 221K0076
334 6301546438 PULLEY,TIMING 2 866N--100-334 223Q0718
336 6301545806 BELT,TIMING 1 866N--100-336 223L0361
338 4110010409 RING E 6 4 866N--100-238 221K0099
339 6301546872 SHAFT 2 866N--100-239 213A1447
341 6301567280 SHAFT 1 866N--100-241 213A1477
343 6301567297 NUT 1 866N--100-243 221G0202
344 6301567501 SHAFT 1 866N--100-709 213A1482
345 6301545455 PULLEY,TIMING 3 866N--100-710 223Q0716
346 6301545905 SHAFT 2 866N--100-711 213A1445
347 6301546353 PULLEY,TIMING 11 866N--100-712 223Q0717
348 6301567518 SHAFT 1 866N--100-718 213A1483
349 6301572222 BOLT,HEX-SCT 2 866N--100-609 221A0430
350 6301571249 COLLAR 1 866N--100-250 216A1504
354 4111413902 WASHER V 3X7X0.5 4 866N--100-804 221H0312
358 4111412905 WASHER SPR 4 8 866N--100-808 221H0284
359 4111414008 WASHER V 4X9X0.8 8 866N--100-809 221H0315
362 4110082109 WASHER SPR 5 8 866N--100-812 221H0286
363 4110881702 WASHER V 5X10X1 8 866N--100-813 221H0317
364 4111416705 WASHER SPR 5 4 866N--100-814 221H0287
365 4111414107 WASHER V 5X10X1 4 866N--100-815 221H0318
369 4111413100 WASHER SPR 8 4 866N--100-819 221H0291
370 4111414503 WASHER V 8X17X1.6 4 866N--100-820 221H0323
373 6300007497 BOLT,HEX-SCT 4 M3X4 866N--100-823 221A0004
378 6300007633 BOLT,HEX-SCT 8 M4X12 866N--100-828 221A0018
385 4111404900 BOLT HEX 5X12 8 M5X12 HEX 866N--100-835 221B0140
386 6300007763 BOLT,HEX-SCT 4 M5X16 866N--100-836 221A0031
387 4110511708 SCR TRS 4X6 24 866N--100-907 221E0532
MODEL SL-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-4
N-4 list-1
