MODEL SL-G300 0712-002 144 122 1 19 149 108 126 123 1 13 141 108 102 131 104 123 1 17 146 1 19 129 129 122 1 10 108 108 103 131 126 123 1 13 106 141 123 105 150 124 124 198 198 139 . 140 139 . 140 注) Key No.123,124( ○印)は…
MODEL SL-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301568874 BRACKET 2 866NX-100-401 211FC399
3 6301469584 SUPPORT 8 866BX-100-528 211K3262
8 6301569253 SHAFT 4 866NX-100-408 213A1487
11 6301318783 SHAFT 4 866NX-100-411 213A1129
12 6301233093 COLLAR 12 866NX-100-412 216A1117
13 6301584676 SENSOR,PELEC 2 B0817 866NX-100-308 23G00304
18 6301256450 GUIDE,LINEAR 4 866NX-100-418 222L0690
23 6301236520 PULLEY,TIMING 8 866NX-100-423 223Q0548
24 6300050851 BEARING,PARTS(LOCK NUT) 8 866NX-100-424 222G0014
25 6300969009 BEARING,RADIAL 24 866NX-100-425 222D0343
27 6300000252 SENSOR,PHOTO 4 B5101,B5201
866NX-100-027 23G10002
28 6300000269 SENSOR,PHOTO(CONNECTOR) 4 866NX-100-028 23G10003
31 6300010329 SPRING PIN 28 866NX-100-531 221J0006
32 6301470771 SUPPORT 2 866NX-100-702 211K3263
33 6301470788 SUPPORT 2 866NX-100-703 211K3264
35 6301577166 BRACKET 2 866NX-100-705 211FC526
36 6301625348 BRACKET 2 866NX-100-706 211FD177
37 6301577708 PLATE 2 866NX-100-707 211DC972
38 4110010409 RING E 6 4 866NX-100-238 221K0099
43 6301565453 BLOCK 4 866NX-100-503 211G5328
47 6301335056 SPACER 4 866NX-100-507 211E0904
48 6301325392 SHAFT 4 866NX-100-508 213A1146
49 6301325408 COLLAR 4 866NX-100-509 216A1219
53 4110864408 WASHER SPR 3 12 866NX-100-803 221H0280
54 4110889005 WASHER F 3X6X0.5 12 866NX-100-804 221H0337
55 4111412905 WASHER SPR 4 12 866NX-100-805 221H0284
56 4111414008 WASHER V 4X9X0.8 12 866NX-100-806 221H0315
58 4111416705 WASHER SPR 5 8 866NX-100-808 221H0287
59 4111414107 WASHER V 5X10X1 8 866NX-100-809 221H0318
62 4111413100 WASHER SPR 8 4 866NX-100-812 221H0291
63 4111414503 WASHER V 8X17X1.6 4 866NX-100-813 221H0323
64 4111413209 WASHER SPR 10 8 866NX-100-814 221H0293
65 4111414701 WASHER V 10X21X2 8 866NX-100-815 221H0325
68 6300007626 BOLT,HEX-SCT 12 M4X10 866NX-100-818 221A0017
70 6300007664 BOLT,HEX-SCT 40 M4X20 866NX-100-820 221A0021
71 6300007749 BOLT,HEX-SCT 4 M5X10 866NX-100-821 221A0029
72 6300007756 BOLT,HEX-SCT 4 M5X12 866NX-100-822 221A0030
75 6300007916 BOLT,HEX-SCT 8 M6X30 866NX-100-825 221A0046
76 6300008128 BOLT,HEX-SCT 8 M10X25 866NX-100-826 221A0067
77 4110420703 SCR PAN 3X8 4 866NX-100-827 221E0499
78 4110407803 SCR PAN 3X12 8 866NX-100-828 221E0489
80 6300082296 SET SCREW 16 M4X4 SET 866NX-100-830 221C0027
85 4111410901 NUT HEX 8 4 866NX-100-835 221F0089
NX-1
NX-1 list-1
MODEL SL-G300
0712-002
144
122
119
149
108
126
123
1
13
141
108
102
131
104
123
117
146
1
19
129
129
122
1
10
108
108
103
131
126
123
113
106
141
123
105
150
124
124
198
198
139
.
140
139
.
140
注)
Key No.123,124(○印)は重要保守部品となっております。
交換方法については高度な技術を要しますので、当社
サービス員にご相談下さい。
Notice) The Key No. 123 and 124 (with a circle) is an important
maintenance component. Because high-grade technique
is required for the replacement of this component, consult
our service personnel.
173
183
166
.
151
.
152
167
.
155
.
156
174
.
160
.
161
174
.
160
.
161
177
.
153
.
154
177
.
153
.
154
177
.
153
.
154
177
.
153
.
154
169
.
155
170
.
156
170
.
156
.
156
169
180
.
155
.
156
168
.
155
.
156
197
.
193
.
194
197
.
193
.
194
172
.
158
.
159
182
180
.
155
.
157
184
.
158
.
159
184
.
158
.
159
182
.
155
.
157
172
.
158
.
159
168
.
155
.
156
167
.
155
.
156
167
.
155
.
156
106
166
.
151
.
152
171
.
158
.
159
171
.
158
.
159
167
.
155
.
156
183
173

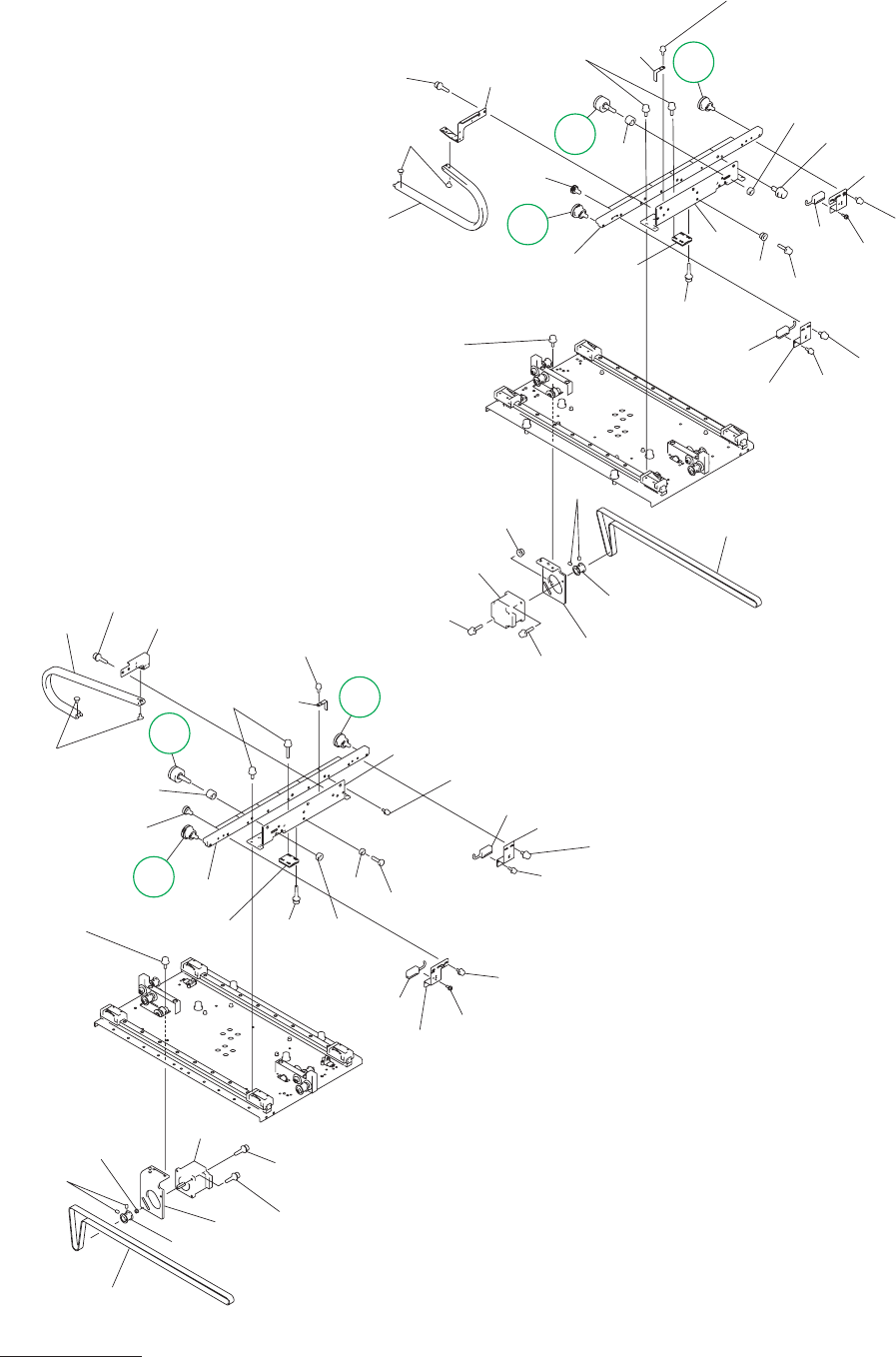

搬送供給、排出部
TRANSFER SUPPLY, DISCHARGE SECTION
Fig. NX-2
シュート
1 Chute 1
NX-2 illust-1
MODEL SL-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
102 6301506746 BRACKET 1 866NX-100-402 211FB407
103 6301578101 BRACKET 1 866NX-100-403 211FC542
104 6301612140 BLOCK 1 866NX-100-404 211G5593
105 6301612157 BLOCK 1 866NX-100-405 211G5594
106 6301506760 BRACKET 2 866NX-100-406 211FB409
108 6301584676 SENSOR,PELEC 4 B4101,B4102
866NX-100-308 23G00304
110 6301538525 BRACKET 1 866BX-100-510 211FB910
113 6301311616 PIN,GUIDE 14 866NX-100-113 216F0902
117 6301538518 BRACKET 1 866BX-100-417 211FB909
119 6301499574 MOTOR,STEPPING 2 M51 866NX-100-419 4M140163
122 6301498003 PULLEY,TIMING 2 866NX-100-422 223Q0678
123 6301272733 PULLEY,TIMING 4 866NX-100-223 223Q0564
124 6301236537 PULLEY,FLAT 4 866NX-100-224 223M0050
126 6301565446 PLATE 2 866NX-100-426 211DC844
129 6301562353 BELT,TIMING 2 866NX-100-429 223L0369
131 6301326924 BRACKET 2 866NX-100-431 211F9170
139 6301329413 CHAIN(CHAIN) 2 866BX-100-529 223R0104
140 6301329420 CHAIN(CHAIN) 4 866BX-100-530 223R0105
141 6301320885 COLLAR 4 866NX-100-501 216A1211
144 6301562261 BRACKET 1 866NX-100-704 211FC286
146 6301562254 BRACKET 1 866NX-100-506 211FC285
149 6301624419 BRACKET 1 866NX-100-709 211FD170
150 6301624426 BRACKET 1 866NX-100-710 211FD171
151 4111412806 WASHER SPR 3 4 866NX-100-801 221H0281
152 4111413902 WASHER V 3X7X0.5 4 866NX-100-802 221H0312
153 4110864408 WASHER SPR 3 8 866NX-100-803 221H0280
154 4110889005 WASHER F 3X6X0.5 8 866NX-100-804 221H0337
155 4111412905 WASHER SPR 4 32 866NX-100-805 221H0284
156 4111414008 WASHER V 4X9X0.8 32 866NX-100-806 221H0315
157 6300010213 WASHER 2 BW4 866NX-100-807 221H0004
158 4111416705 WASHER SPR 5 16 866NX-100-808 221H0287
159 4111414107 WASHER V 5X10X1 16 866NX-100-809 221H0318
160 4111413001 WASHER SPR 6 6 866NX-100-810 221H0289
161 4111414305 WASHER V 6X12.5X1.6 6 866NX-100-811 221H0320
166 6300007510 BOLT,HEX-SCT 4 M3X8 866NX-100-816 221A0006
167 6300007619 BOLT,HEX-SCT 8 M4X8 866NX-100-817 221A0016
168 6300007626 BOLT,HEX-SCT 20 M4X10 866NX-100-818 221A0017
169 6300007657 BOLT,HEX-SCT 2 M4X16 866NX-100-819 221A0020
170 6300007664 BOLT,HEX-SCT 2 M4X20 866NX-100-820 221A0021
171 6300007749 BOLT,HEX-SCT 8 M5X10 866NX-100-821 221A0029
172 6300007756 BOLT,HEX-SCT 4 M5X12 866NX-100-822 221A0030
173 4111405006 BOLT HEX 5X16 2 M5X16 HEX
866NX-100-823 221B014
174 6300858310 BOLT,HEX-SCT 6 M6X14 866NX-100-824 221A0240
177 4110420703 SCR PAN 3X8 8 866NX-100-827 221E0499
180 6300082296 SET SCREW 4 M4X4 SET 866NX-100-830 221C0027
182 4111410307 NUT HEX 4 2 866NX-100-832 221F0082
183 4111188503 NUT HEX 5 2 866NX-100-833 221F0084
184 4111410505 NUT HEX 5 4 866NX-100-834 221F0085
NX-2
NX-2 list-1
