WES7 / Win10 - Installation Manual 09/2020 Edition

NOTICE

For iBASE computers, you must make the following setting in the BIOS (F2 key) before

the first boot, otherwise the computer starts from the USB stick again, or no operating

system will be found:

► WES7 – Put back the hard disk in the first place of the boot sequence

(under: Boot / Hard Drive BBS Priorities).

Figure 4-4: BIOS – WES7

► Win10 – Put the Windows Boot Manager in the first place of the boot sequence.

Figure 4-5: BIOS – Win10

WES7 / Win10 - Installation Manual 09/2020 Edition

When the Windows login window is displayed, the installation is completed (the first boot may take

some minutes).

► Log on as "ASM_Admin" and enter a password.

► If you install from DVD: Remove the DVD from the DVD drive.

► If you install from USB stick: Check if the SIPLACE WES7 Configurator / SIPLACE Win10

Configurator (e.g. directory _WES7_Configurator) is available for run on the USB stick (please

refer to section 4.3.3).

If not, release the USB stick and remove it from the USB interface.

► For the newer computers (iBASE, Microbox 427D) with two monitor outputs, the Clone

Displays operating mode has to be set in the display properties under Display – Multiple

Display, if required. Otherwise, it might happen that only one monitor is accessed, or the task

bar is only available on one of the monitors. For WES7, this setting can also be made in the

SIPLACE WES7 Configurator with the Add-ons and Touch Screen Driver button.

► Additionally, it may be necessary to set the "Screen resolution" to 1024 x 768

(for E-series: 1280 x 1024) and enable the Scale Full Screen setting in the display properties

under Panel Fit.

4.3.3 Choosing the Computer Configuration with the SIPLACE Configurator

► Make the medium with the SIPLACE WES7 Configurator / SIPLACE Win10 Configurator

available on the computer (insert CD / USB stick).

► Open Windows Explorer and navigate to the DVD drive or open the directory (e.g. directory

_WES7_Configurator) that contains the SIPLACE WES7 Configurator / SIPLACE Win10

Configurator on the USB stick.

► Double-click on the start.hta file from the software CD or from the USB stick to start the

SIPLACE Configurator.

The following window is displayed for WES7:

Figure 4-6: Window "SIPLACE Windows Embedded Standard 7 Configurator"

WES7 / Win10 - Installation Manual 09/2020 Edition

The following window is displayed for Win10:

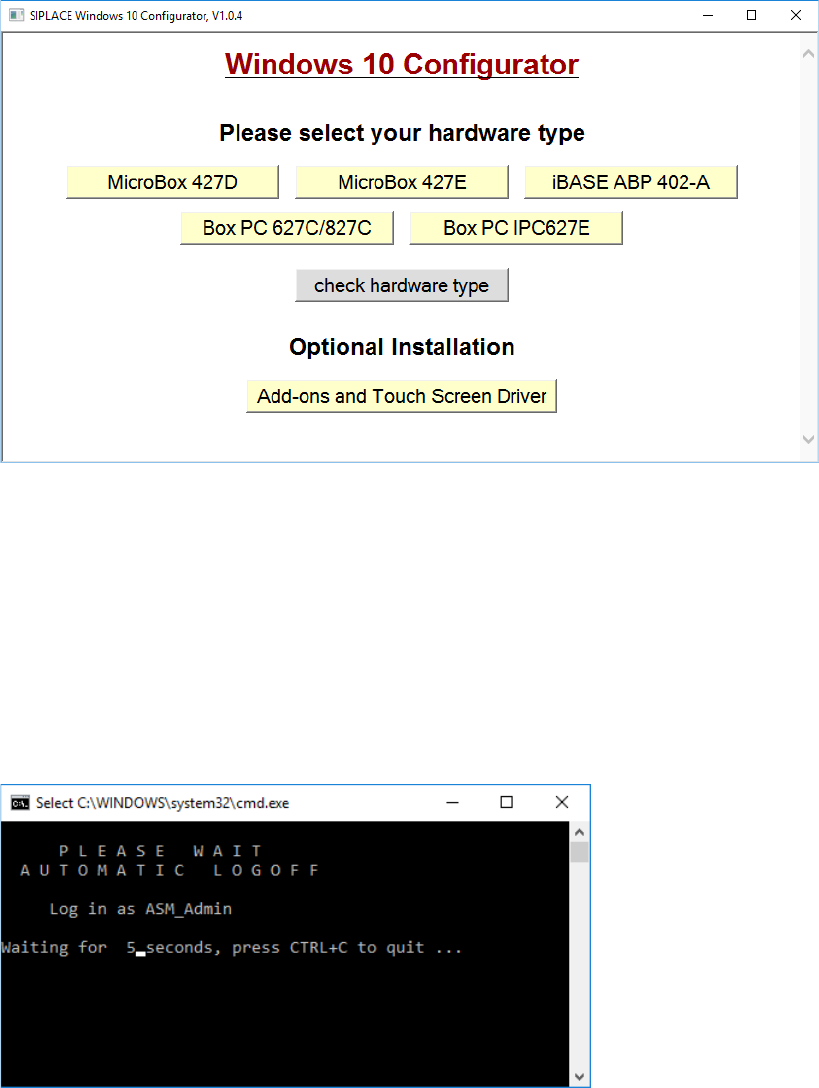

Figure 4-7: Window "SIPLACE Windows 10 Configurator"

► Click on the required hardware to select it and follow the further instructions displayed in the

succeeding windows.

► If necessary, enter the station IP-address for SIPLACE Pro LAN (required for a station

computer only).

The SIPLACE settings are automatically performed and the computer reboots.

After the reboot, you are logged in as Operator (station computer) or the Windows login window is

displayed (Coplan / BulkFeeder X computer).

At the station computer under Windows Embedded Standard 7, you will be automatically logged

out after a few seconds and prompted to log in as ASM_Admin.

Figure 4-8: Automatic logoff WES7
