WES7 / Win10 - Installation Manual 09/2020 Edition
18
When the Windows login window is displayed, the installation is completed (the first boot may take
some minutes).
► Log on as "ASM_Admin" and enter a password.
► If you install from DVD: Remove the DVD from the DVD drive.
► If you install from USB stick: Check if the SIPLACE WES7 Configurator / SIPLACE Win10
Configurator (e.g. directory _WES7_Configurator) is available for run on the USB stick (please
refer to section 4.3.3).
If not, release the USB stick and remove it from the USB interface.
► For the newer computers (iBASE, Microbox 427D) with two monitor outputs, the Clone
Displays operating mode has to be set in the display properties under Display – Multiple
Display, if required. Otherwise, it might happen that only one monitor is accessed, or the task
bar is only available on one of the monitors. For WES7, this setting can also be made in the
SIPLACE WES7 Configurator with the Add-ons and Touch Screen Driver button.
► Additionally, it may be necessary to set the "Screen resolution" to 1024 x 768
(for E-series: 1280 x 1024) and enable the Scale Full Screen setting in the display properties
under Panel Fit.
4.3.3 Choosing the Computer Configuration with the SIPLACE Configurator
► Make the medium with the SIPLACE WES7 Configurator / SIPLACE Win10 Configurator
available on the computer (insert CD / USB stick).
► Open Windows Explorer and navigate to the DVD drive or open the directory (e.g. directory
_WES7_Configurator) that contains the SIPLACE WES7 Configurator / SIPLACE Win10
Configurator on the USB stick.
► Double-click on the start.hta file from the software CD or from the USB stick to start the
SIPLACE Configurator.
The following window is displayed for WES7:
Figure 4-6: Window "SIPLACE Windows Embedded Standard 7 Configurator"
WES7 / Win10 - Installation Manual 09/2020 Edition
19
The following window is displayed for Win10:
Figure 4-7: Window "SIPLACE Windows 10 Configurator"
► Click on the required hardware to select it and follow the further instructions displayed in the
succeeding windows.
► If necessary, enter the station IP-address for SIPLACE Pro LAN (required for a station
computer only).
The SIPLACE settings are automatically performed and the computer reboots.
After the reboot, you are logged in as Operator (station computer) or the Windows login window is
displayed (Coplan / BulkFeeder X computer).
At the station computer under Windows Embedded Standard 7, you will be automatically logged
out after a few seconds and prompted to log in as ASM_Admin.
Figure 4-8: Automatic logoff WES7
WES7 / Win10 - Installation Manual 09/2020 Edition
20

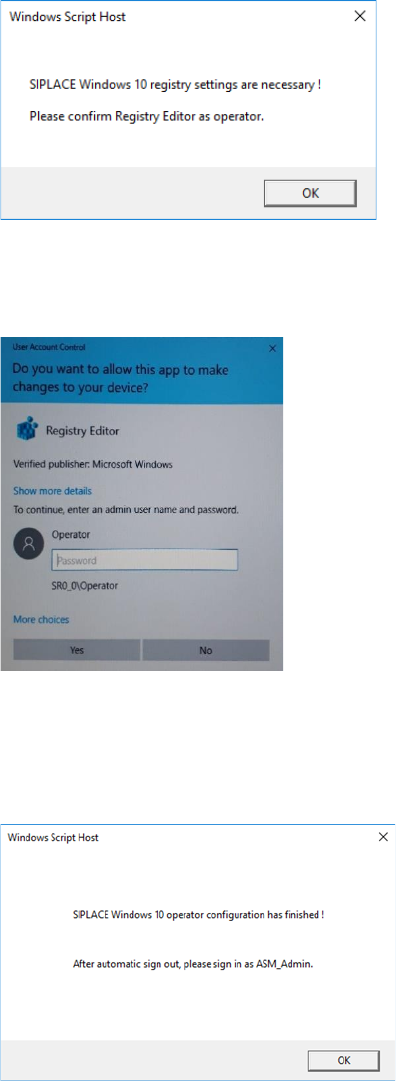

Under Windows 10 IoT, you must wait for the following window (takes a few seconds):
Figure 4-9:Confirming Registry settings Win10
► Click OK.
The following window is displayed:
Figure 4-10: User Account Control Win10
► Enter the operator password.
► Click Yes.
The following window is displayed:
Figure 4-11: Operator configuration Win10 finished
► Click OK.
► Log in as ASM_Admin after the automatic sign out.
