3 Technical data of the module
3.1 Technical data
26 User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
3.1 Technical data
SIPLACE JTF-ML2
Length x width x height (tower) 374.5 x 322.7 x 707.0 mm
Length x width x height (conveyor) 356.2 x 346.0 x 68.2 mm
Weight Tower (empty): 26.3 kg (58.0 lbs.)
Total: ~ 36 kg (79.4 lbs.) (depending on application)
Max. noise emissions 75 dB (A)
Storage capacity
JEDEC waffle pack tray specifications JEDEC standard: 95-1 & IEC 60286-5
Waffle pack tray, thin 18 JEDEC waffle pack trays or
18 magazine sheets (Cookie Trays)
(in two cassettes)
Waffle pack tray, thick 14 JEDEC waffle pack trays or
14 magazine sheets (Cookie Trays)
(in two cassettes)
Waffle pack tray changeover time from 3.15 to 6.1 seconds (depending on applica-
tion)
1)
Slot n after n+1 from 3.15 to 5.4 seconds (maximum/minimum ac-
celeration)
Cassette
Width x length x height 343.7 x 136 x 137 mm
Max. load. weight (per cassette) 4.45 kg (incl. cassette weight)
1)
3.15 seconds until next waffle pack tray with maximum acceleration,
6.1 seconds from first to ninth waffle pack tray with minimum acceleration
Electrical ratings and energy consumption
Mains Voltage 28V
Full-Load Current (max) 2.15 A
Rated Power Consumption of the largest
Consumer
3.3 A
Short Circuit Rating of Machine (SCCR) ---
Power 0.0602 kW
Ambient Conditions for Packaging, Transportation and Storage
Temperature Range from -25 °C to 55 °C
Atmospheric
humidity
up to 95%
Ambient pressure up to 1700 m height without pressure equalization
Ambient Conditions for Machine Operation
Room temperature between 15°C and 35°C
Atmospheric
humidity
30 - 75%
(must not exceed an average of 45%, so that there is no danger of con-
densation forming on the machine.)
Ambient pressure > 750 mbar (corresponds to 2500 m above mean sea level)
3 Technical data of the module
3.2 Overview – SIPLACE JTF-ML2
User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 27
3.2 Overview – SIPLACE JTF-ML2

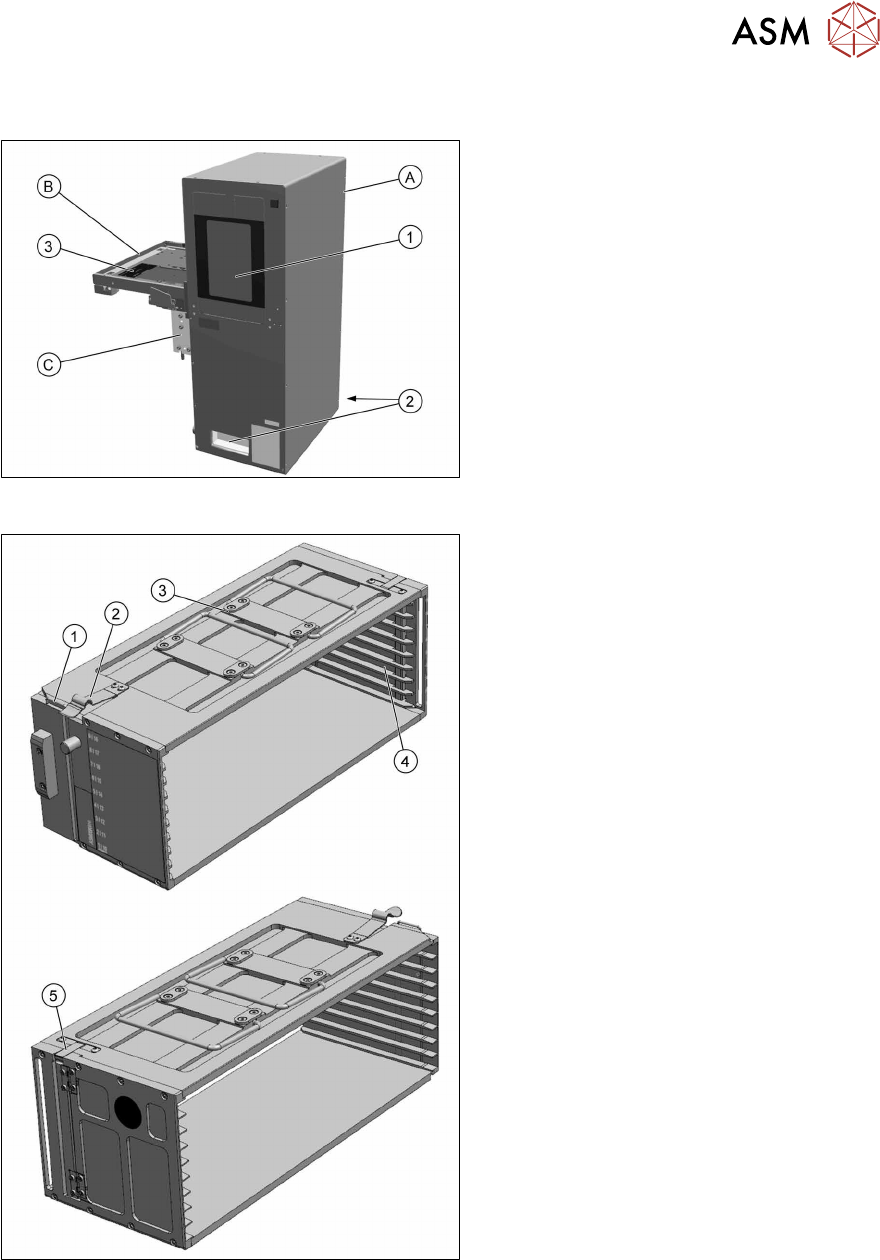

Fig.20: SIPLACE JTF-ML2
SIPLACE JTF ML2 (Tray Feeder Module)
[00588116‑xx]
A)Tower
B)Conveyor
C)SIPLACE JTF‑ML2 adapter
1. Door
2. Handles
3. Pick position
Fig.21: Cassette for 9 trays (standard)
SIPLACE JTF-ML2 Tray Cassette 9
[00588199-xx]
The SIPLACE JTF-ML2 is delivered with two
cassettes for 9 trays as standard.
This cassette type can only house thin
JEDEC trays.
1. Shipping brace
2. Security spring
3. Handles
4. Guides for JEDEC trays
5. Direction lock
3 Technical data of the module
3.2 Overview – SIPLACE JTF-ML2
28 User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019

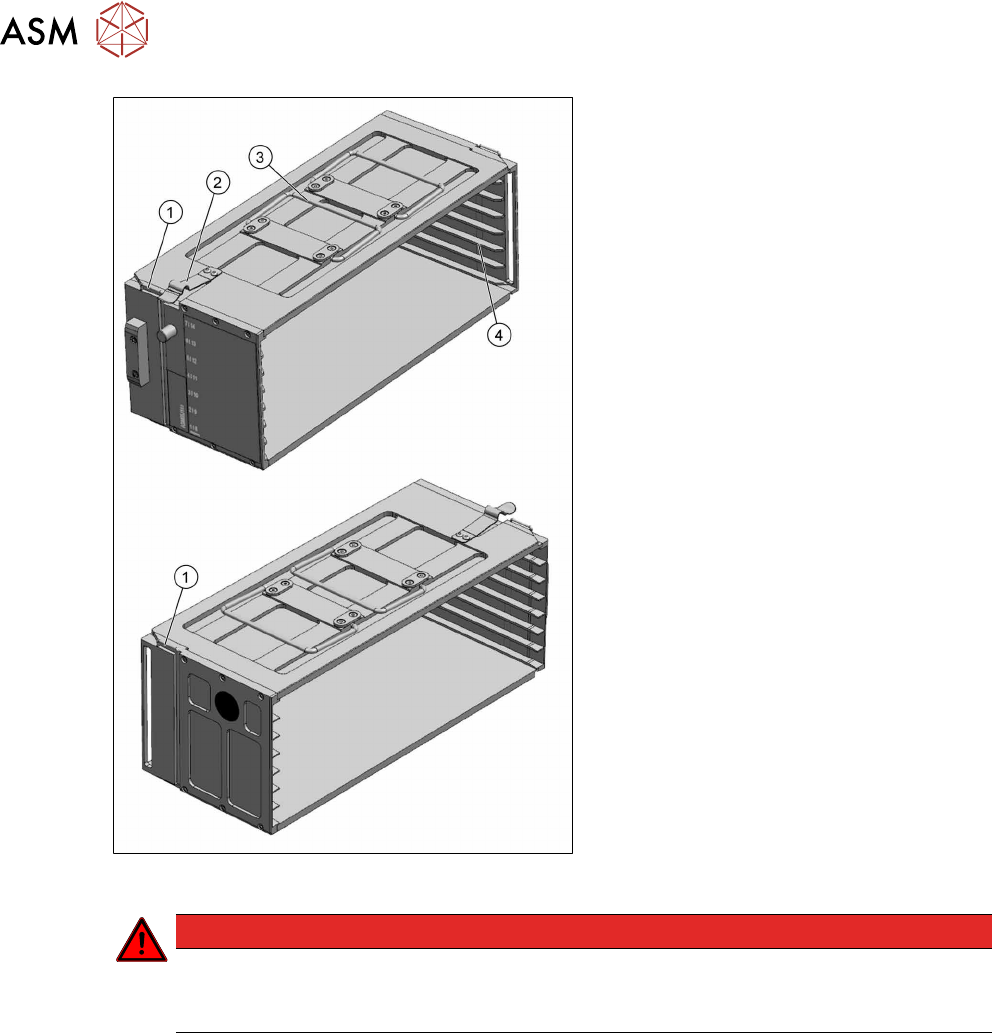

Fig.22: Cassette for 7 trays (optional)
SIPLACE JTF-ML2 Tray Cassette 7
[00588177-xx]
Cassettes for 7 trays can be ordered separ-
ately.
This cassette type can house thin (7.62mm)
and thick (12.19mm) JEDEC trays.
1. Transportation locks (2x)
2. Security spring
3. Handles
4. Guides for JEDEC trays
DANGER
Risk of crashing when using thick JEDEC trays
►
Do not use thick JEDEC trays in combination with C&P20P2 or CPP_L.
Otherwise, the head will be damaged.
