1 Introduction
1.1 Module description
User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 7
1 Introduction
This manual provides technical information and describes how to operate the SIPLACE JTF-ML2
(JEDEC Tray Feeder) on SIPLACE® TX1/TX2 machines.
JEDEC waffle pack trays can be made available to the placement machine using the SIPLACE
JTF-ML2 option.
NOTICE
SIPLACE TX V1 and V2
This manual applies to the SIPLACE TX V1 and SIPLACE TX V2. Any differences will be
explicitly indicated.
1.1 Module description
In SIPLACE TX machines, a SIPLACE JTF-ML2 can be installed on the output side at location 1.
Depending on the magazine type, the SIPLACE JTF-ML2 stores up to 18 standard or 14 thick
JEDEC waffle pack tray magazines in two exchangeable cassettes and supplies them as required.
The placement machine can therefore be supplied with different component types at variable
changeover times.
1.1.1 Typeplate, Serial Number and ID Label

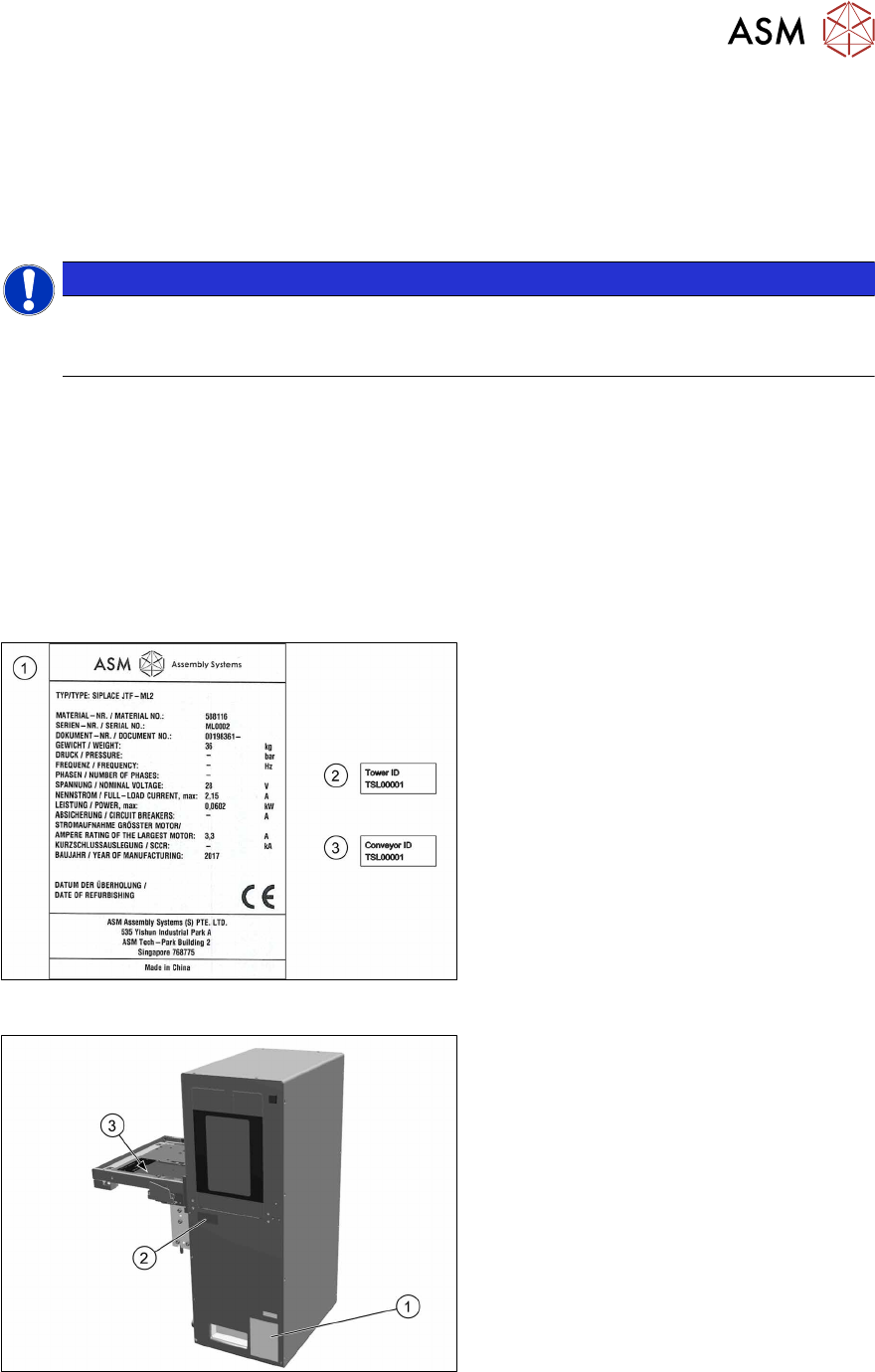

Fig.1: Typeplate
1) Typeplate
The feeder modules have a typeplate, which
specifies, among other things, the type, ma-
terial and serial number.
●
Type: SIPLACE JTF-ML2
●
Material No./Material-Nr.: 00588116
●
Serial-No./Serien-Nr.
2) ID Label Tower
3) ID Label Conveyor
Fig.2: Labels on SIPLACE JTF-ML2
The typeplate(1) is located on the side of
the SIPLACE JTF‑ML2.
The ID label tower(2) is located next to the
door at the tower.
The ID label conveyor(3) is located at the
top side of the conveyor.
