5 Tasks on the machine 5.3 Operating the JEDEC tray feeder in the station software User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 75 5.3 Operating the JEDEC tray feeder in the station software SI…
5 Tasks on the machine
5.2 Task: Operating the feeder
74 User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019
Fig.134: Unlocking the transportation lock
► Unlock the transportation lock.
► Ensure the direction lock is in position
"open".
Fig.135: Inserting the cassette
► Press down the spring(1) completely.
► Carefully push(2) the cassette into the
tower.
Avoid sudden movement to avoid
component jump.
► Release the spring(3).
► Close the door.
Fig.136: Moving the cassette into the refill position
► Click Refill position and Quit refill
position.
ð The SIPLACE JTF‑ML2 is ready for
operation again.
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019 75
5.3 Operating the JEDEC tray feeder in the station software
SIPLACE JTF-ML2 feeders are available from station software version 710.1 upwards.
Former software versions do not support this feeder family.
The JEDEC tray feeder is not displayed at the station until a job has been defined.
Fig.137: Main view (example of SIPLACETX2)
The following terms are used in the sections:
1. Menu
2. Submenu
5.3.1 JEDEC Tray Feeder Configured in SIPLACE Pro and Defined at the Machine
If a JEDEC tray feeder has been configured in SIPLACE Pro, the corresponding location is divided
into two areas when the job is defined for the machine. For X-Series S machines the location is not
divided.
Fig.138: Location view (example of SIPLACETX2)
1. Location 1
5 Tasks on the machine
5.3 Operating the JEDEC tray feeder in the station software
76 User Manual SIPLACE TX V1/V2 Series JEDEC Tray Feeder (JTF-ML2) 11/2019

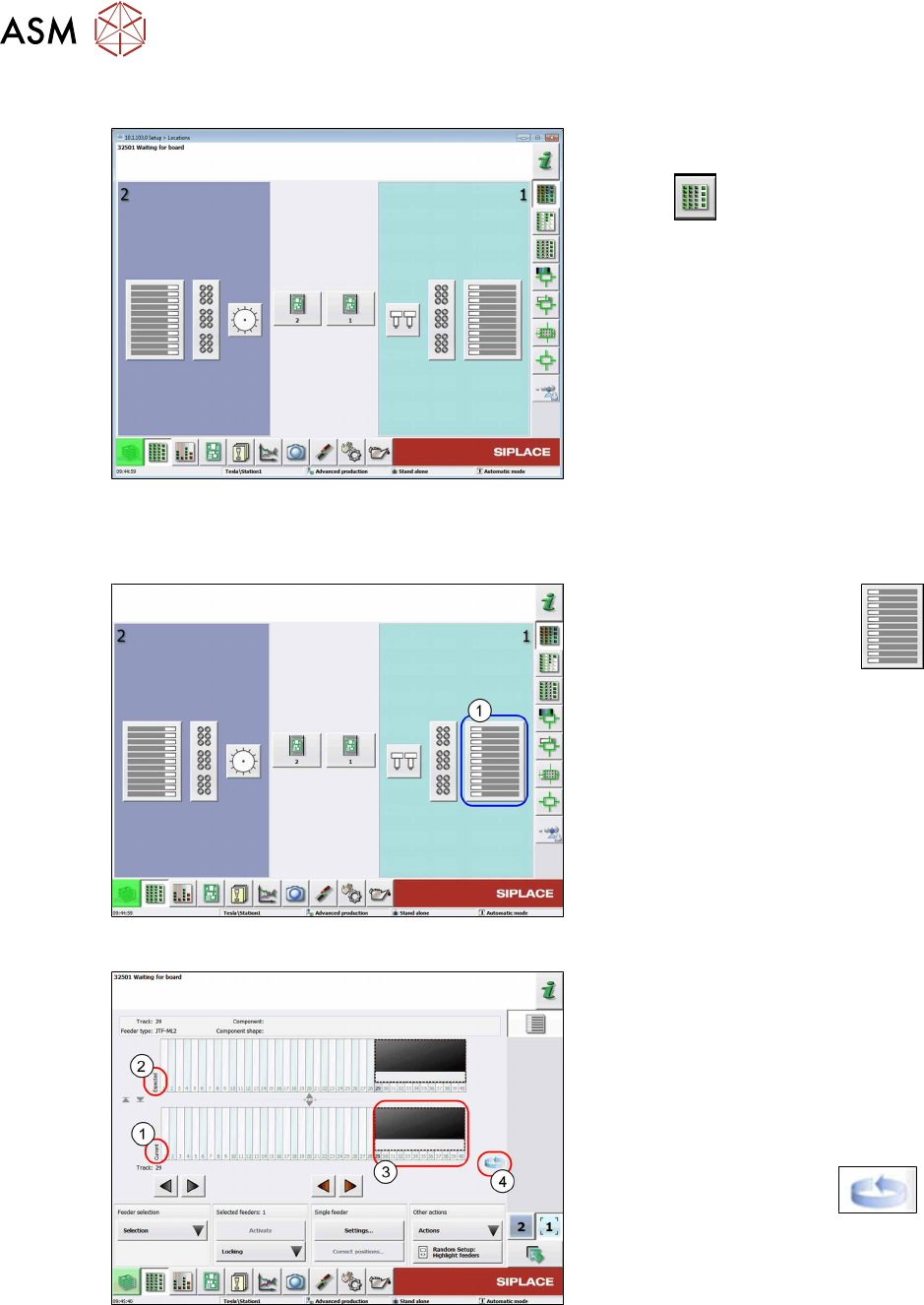

5.3.2 "Display, Check and Set up Feeders, Components and Nozzles" Menu
Fig.139: Select menu (example of SIPLACETX2)
► Select the Display, check and set up
feeders, components and nozzles
menu to display the sub views of
the relevant locations.
5.3.3 Selecting the JEDEC Tray Feeder at the Location
Fig.140: Select Location
► Select the relevant location
(1)
to display the view of the current setup.
Fig.141: Current setup - location 1 selected (example of
SIPLACETX2)
1. Current setup (currently set-up feeders)
2. Expected setup (setup expected by
SIPLACE Pro)
3. SIPLACEJTF‑ML2 on track 29
4. Change button for switching to the
Track information submenu.
► Press the change button to
display the Track information sub-
menu.
